Stonex S10A GNSS Receiver – User Manual 10
3.2. The antennas
(P/N 30-350173 - UHF, P/N 30-350174 - GPRS)
UHF antenna: S10A adopts a UHF all-direction transmitting and receiving
antenna. The available range are: 410-470 MHz. They are suitable for field
surveying, light and durable. The gain is 2.15 dBi.

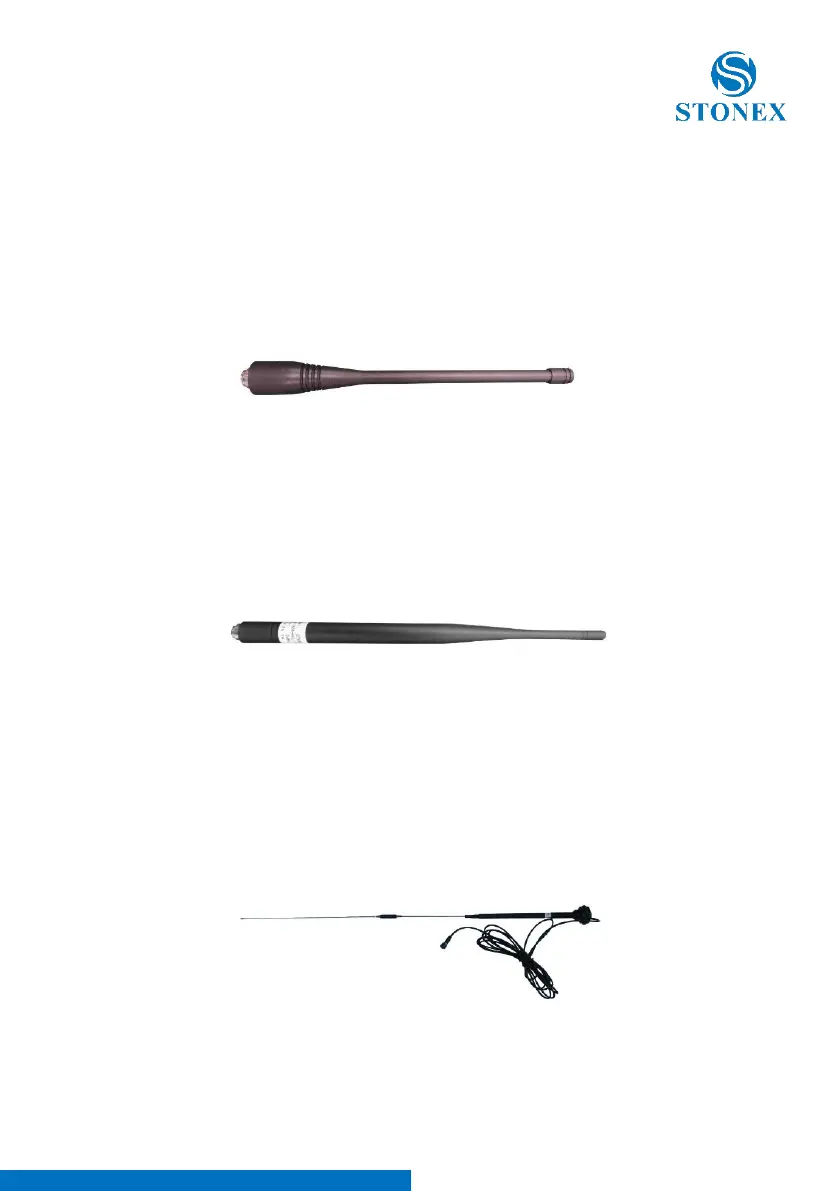

Fig. 3.3 – internal radio antenna
GSM antenna: S10A adopts a GSM/WCDMA/EVDO all-direction transmitting
and receiving antenna with a frequency in the ranges 824-960 MHz and
1710-1880 MHz. It is suitable for field surveying, light and durable, the
length is about 20 cm, the gain is around 2 dBi.
Fig. 3.4 – GSM/WCDMA/EVDO antenna
For S10A, it is possible to use like additional accessory (not included in the
standard configuration) a high-gain UHF all-directional transmitting antenna
for base setup. The antenna is around 1 meter long and can be mounted on
a retractable pole or a tripod for better performance. The higher the antenna
is, the larger cover area does it has for the radio signal. The gain of the
antenna is 5 dBi.
Fig. 3.5 –External radio antenna (not in scale)
