Stonex S10A GNSS Receiver – User Manual 27

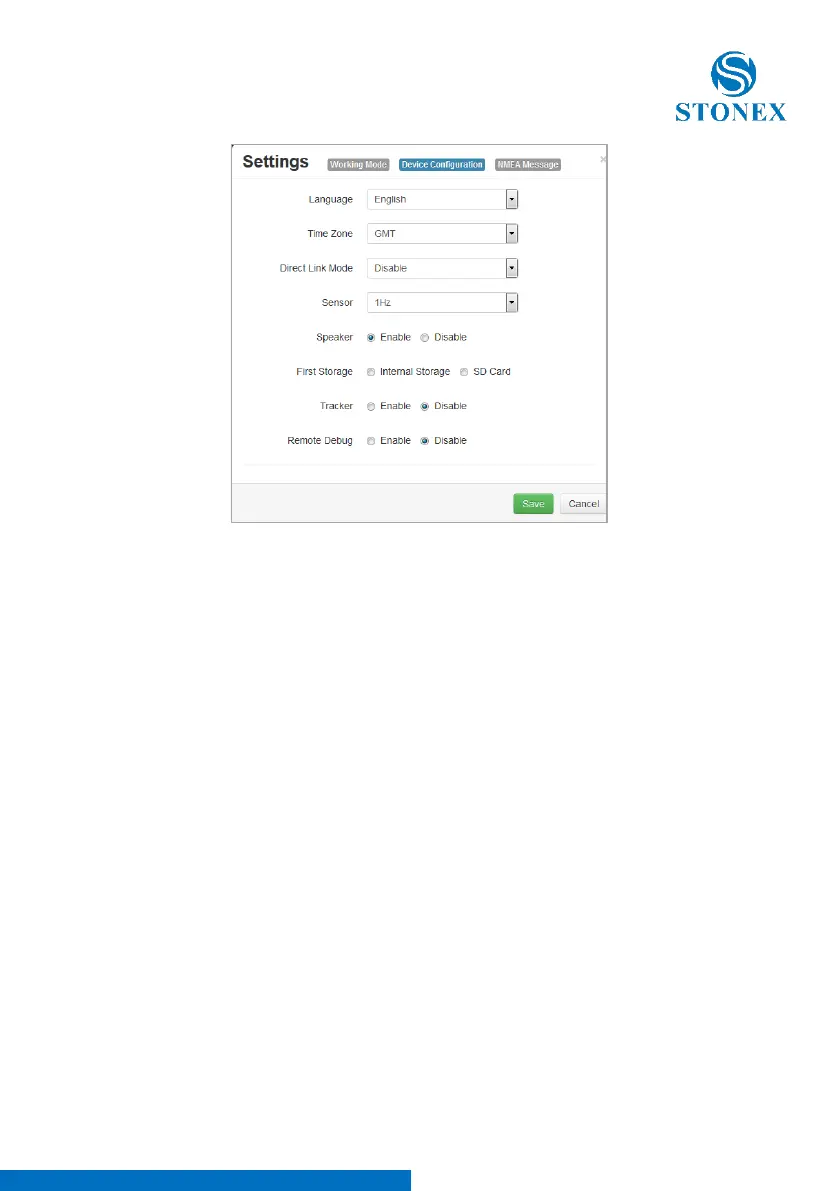

Figure 5.10 – Device configuration
From this menu, users can select if enable or disable “speaker”, where to save
data (internal memory or SD card). It is also possible to use advance
functions like OEM connection (only for authorized dealers).
5.3. Rover mode
To set the receiver in rover mode: Data link can be selected as (UHF, Network
or External radio).
5.3.1. Option UHF
From this menu is it possible to check the settings of frequencies of radio
channels, together with the type of communication protocol to use (we
recommend TRIMTALK® route to connect two S10A) and the bandwidth of
the radio channel. There are also commands to enable automatically
recording the raw data, the minimum angle allowed for satellite reception,
satellite constellations to be enabled.
