Stonex S10A GNSS Receiver – User Manual 11
3.3. Cables
Receivers cables (LM.GK205.ABL P/N 30-350059)
This is a multi-function communication cable: it is used for connecting
receiver and computer used for transferring the static data and updating the
firmware.

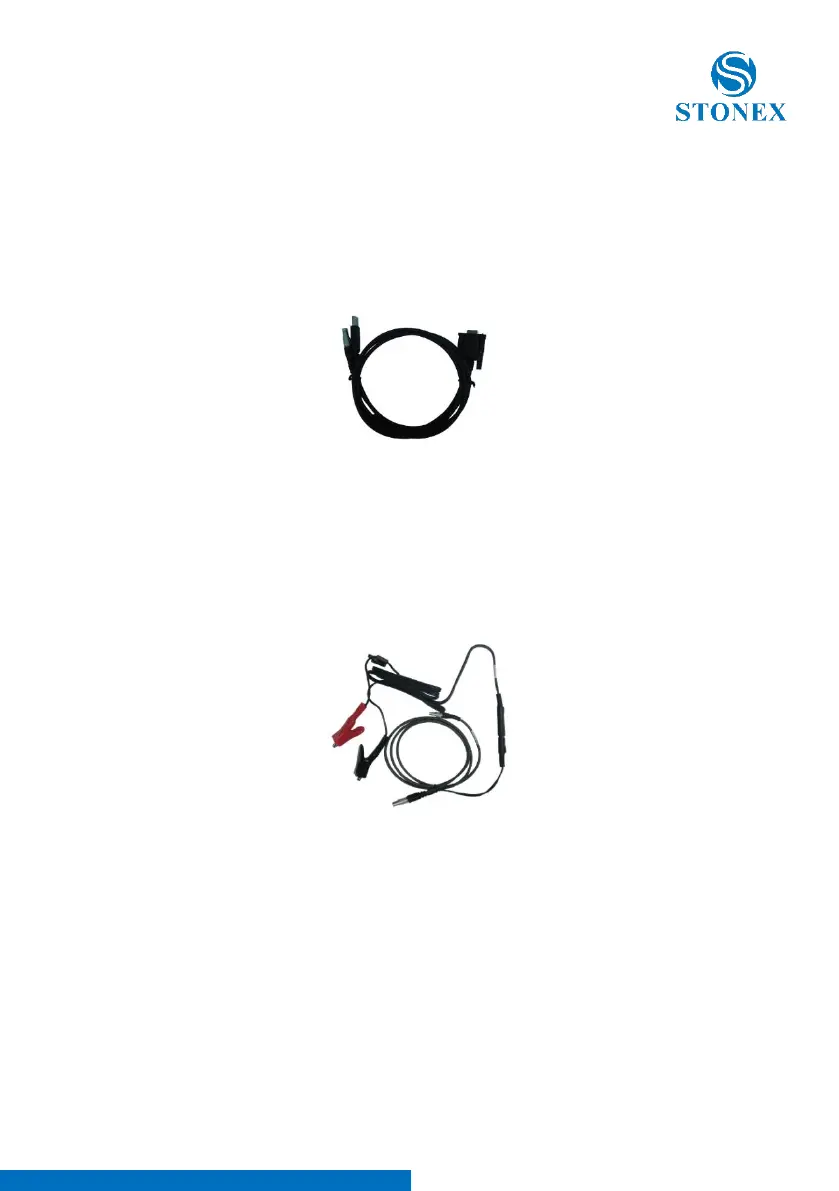

Fig. 3.6 – 7pins-USB-serial port
Auxiliary cables (LM.GK185.ABL+ LM.GK224.AAZ – P/N 30-350072 + 30-350071)
External power supply cables (LM.GK185.ABL+ LM.GK224.AAZ) can be
ordered and used to connect an external battery (red and black clips) to the
receiver (small 5-pin LEMO):
Fig. 3.7 - External power supply cables
3.4. Other accessories
The other accessories are: 2.45 m retractable pole, 25 cm supporting pole,
two kind of brackets depending on the controller, tribrach with plummet,
tripod (wood or aluminum, with quick or twist clamps), connector between
receiver and tribrach, and measuring tape, quick release and mini rotary
table, used for the tilt sensor calibration procedures.
