258.30.18en

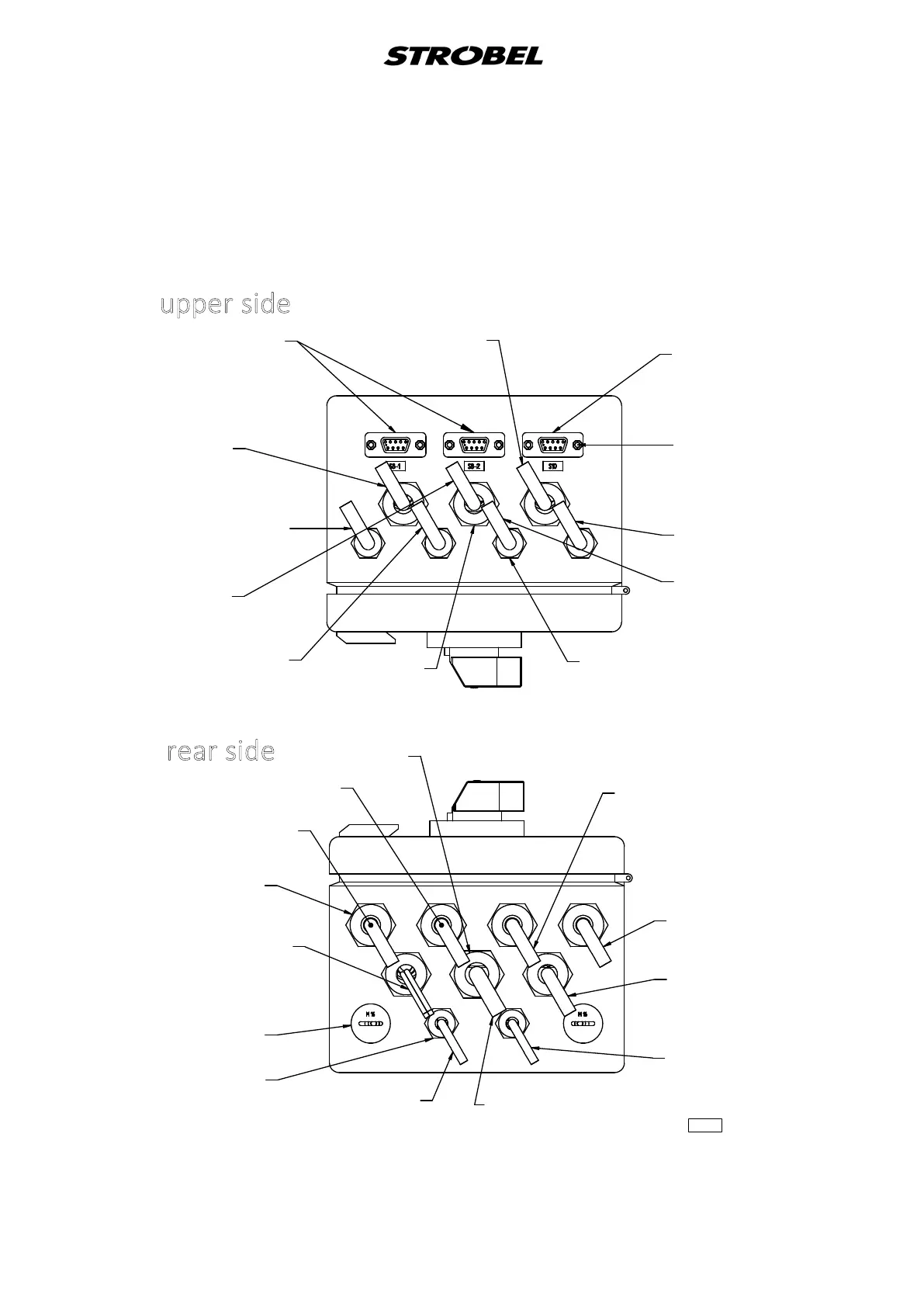

Assembly plan distribuon box Cl. KA-ED as of version 22
upper side
195.0026
clutch K1
298.0334
micro proximity switch S7
597.0221
thread monitor sensor S11
298.0719
wire S10_Vert
(light barrier S10)
296.0807
(exterior mounted)
wire S2
(end switch S2)
296.0398
wire for solenoid valve
(solenoid valve 1V1 + 1V2)
296.0811
wire b1
(switch box b1)
296.0646
3x 293.0950
3x 193.0952
4x 293.0949
4x 193.0951
wire S3
(base switch S3)
296.0399
3x 297.0260
wire S8_Vert
(light barrier S8-1 + S8-2)
2x 296.0806
(exterior mounted)
wire WA
(input lead Efka control box carriage)
wire NA
(input lead Efka control box sewing)
wire sewing light
296.0802
wire grid
296.0801
wire WA_ST2
(input/output)
296.0648
293.0943
193.0953
wire NA_S10
(light barrier S10)
296.0803
wire WA_S8
(light barrier S8)
296.0804
2x 293.0949
2x 193.0951
PE connecting cables
296.0180 PE switch box
296.0810 PE motor WA
296.0183 PE stand
296.0184 PE head
2x 193.0954
2x 193.0952
6x 293.0950
6x 193.0952
rear side
wire NA_ST2
(input/output)
296.0647
