1. Select the appropriate manifold for the procedure. See
For Use With
(page 12).
WWAARRNNIINNGG -- Always install a new, non-sterile, single patient use manifold before each procedure.

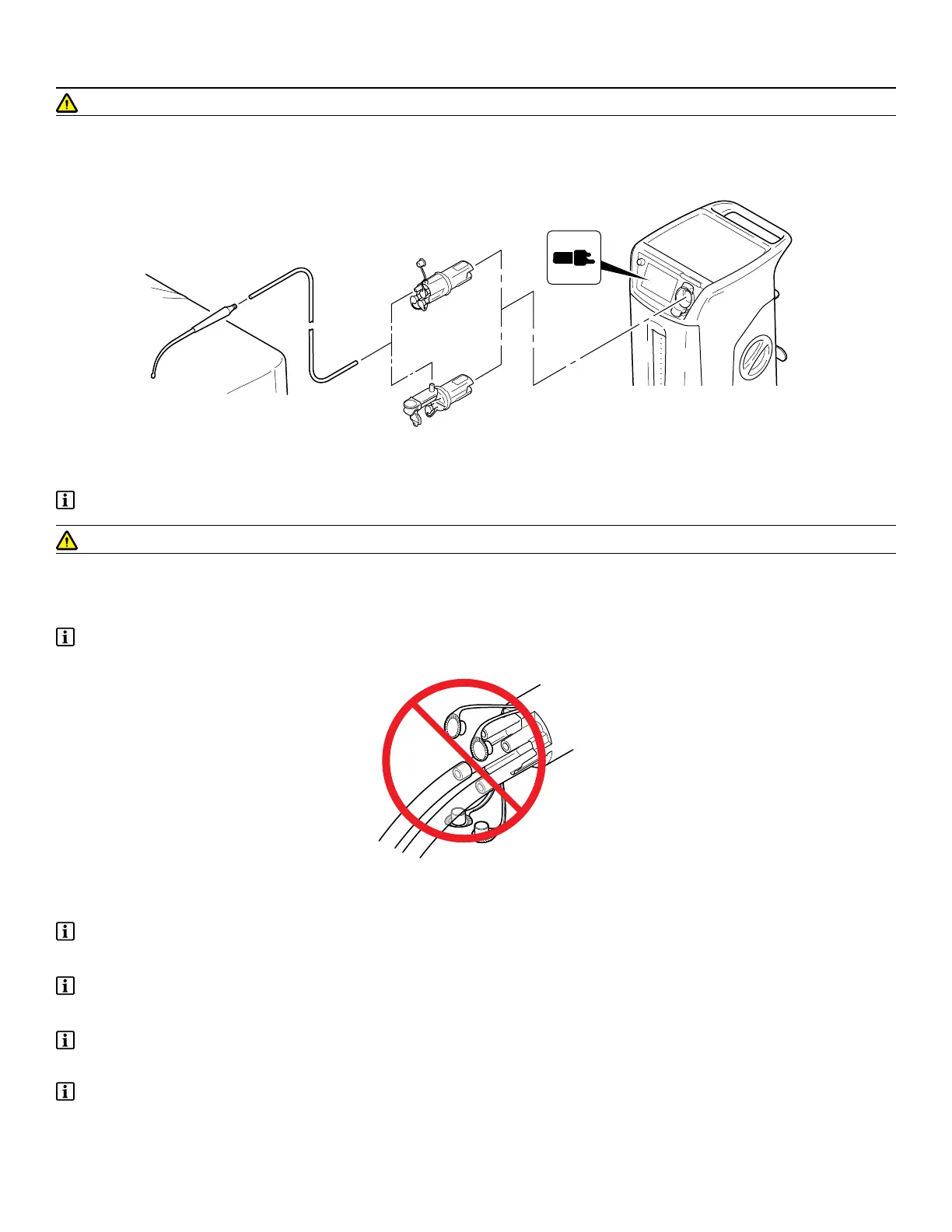

2. Align the manifold tabs and insert the manifold into the manifold receptacle. Push the manifold straight into the
receptacle until a click is heard (Figure 22). Confirm the new manifold symbol (white) appears on the main control panel
display and a confirmation sound occurs.
FFiigguurree 2222 –– TToo IInnssttaallll aa MMaanniiffoolldd
NNoottee -- If a used manifold is installed, a used manifold symbol (pink) appears and a notification sound occurs.
WWAARRNNIINNGG -- Always install new, sterile, single use suction tubing to the manifold port(s) before each procedure.
3. Obtain new sterile suction tubing. See
For Use With
(page 12).
4. Connect the suction tubing to the appropriate manifold port(s).
NNoottee -- Always close unused manifold ports during use, and remove or clamp unused tubing to maintain optimal suction
levels. Failure to close all the unused manifold ports will decrease the vacuum level efficiency.
FFiigguurree 2233 –– AAllwwaayyss CClloossee UUnnuusseedd MMaanniiffoolldd PPoorrttss
NNoottee -- If using a specimen collection manifold, always connect the suction tubing to the top primary manifold port. The
bottom auxillary port is used for secondary suction only. Make sure the auxillary port is closed when not in use.
NNoottee -- If using a 4–port manifold, connect the suction tubing to any available manifold port. Make sure any unused port
(s) are closed to prevent loss of suction.
NNoottee -- If using an endoscope, connect the other end of the suction tubing to the suction connector on the endoscope
connector.
NNoottee -- If using a suction end effector, connect the other end of the suction tubing to the fluid suction accessory.
EN 38 700000969828 Rev-AA
