44
S

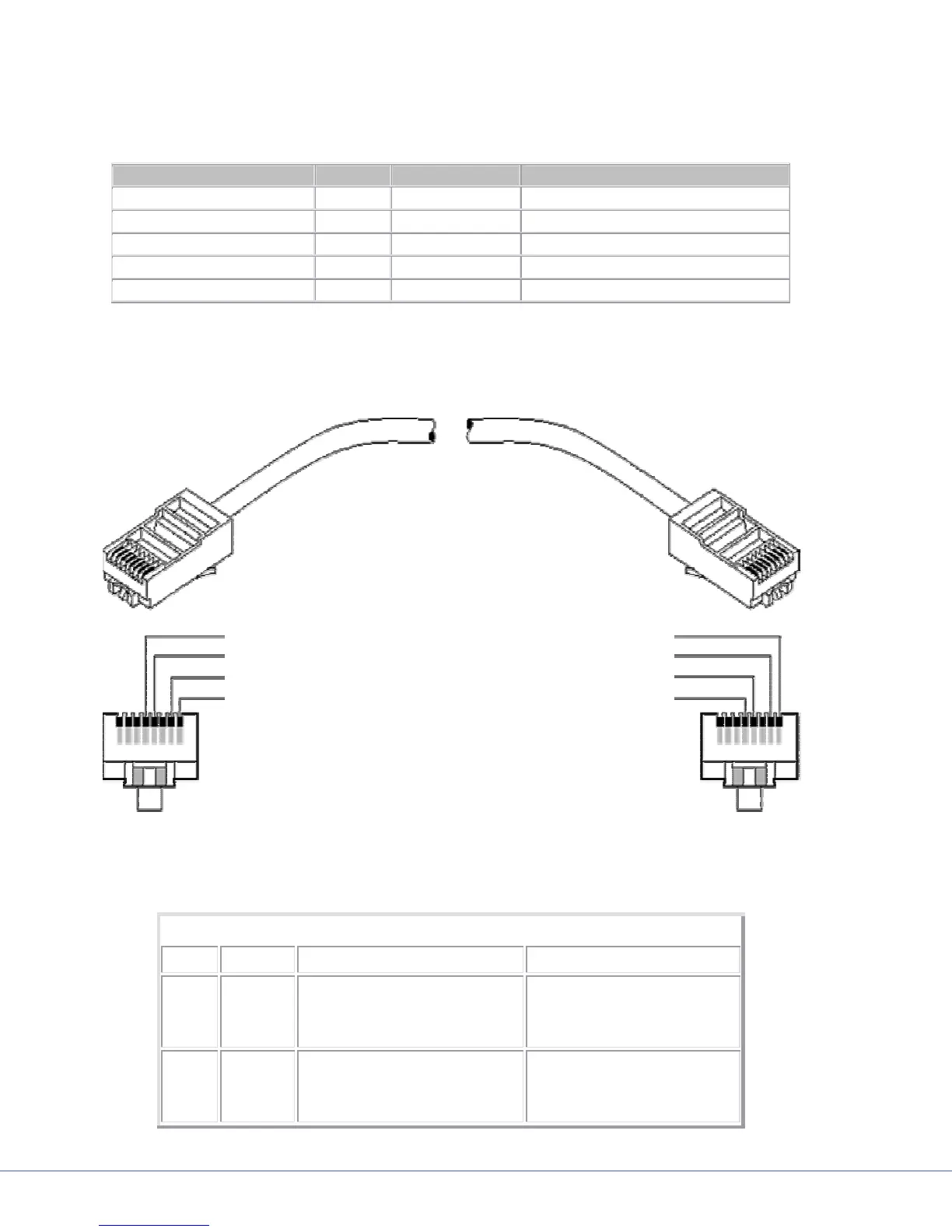

PRI Cable Configuration
PRI Standard Wire Color Codes
PRI, RJ-45 Signals Bare Wires Remarks
Pin 1 RX+ white/orange twisted with RX-
Pin 2 RX- orange twisted with RX+
Pin 4 TX+ white/blue twisted with TX-
Pin 5 TX- Blue twisted with TX+
shielded plug shield Shield
T1/PRI straight-through cable: RJ48C/RJ48C
RJ48C/RJ48C straight-through cable specifications
Pair # Signal Male RJ48C (Stryker Hub) Male RJ48C (Smart Jack)
1 Receive
1
2
1
2
2 Transmit
5
4
5
4
