IInnssttaalllliinngg tthhee bbaatttteerryy
After you install the trolley, follow these steps to install and charge the battery for the first time.
1. Insert the battery (A) into the battery compartment (D) until you hear a click (
Figure 20).
NNoottee -- Make sure that you orient the battery so that the black cover faces up.
2. Raise the lifting arms and manually push the trolley into the head end of the vehicle patient compartment.
3. Lock the trolley at the head end of the vehicle patient compartment (transport position).
4. Press the main power button to make sure that the trolley will turn on.
NNoottee -- The battery will not charge if you do not turn power on to the product.
5. Make sure that the power LED is flashing green (see
Checking the battery power level on the Power-LOAD control
panel
(page 37)).
6. Using a T25 Torx driver, secure the trolley cover plate (B) to PPoowweerr--LLOOAADD with the supplied screws (C) (
Figure 20).
7. Connect the vehicle to the shoreline and charge the battery for at least six hours.
8. Slide the trolley to the foot end of the transfer and then back to the head end of the vehicle patient compartment to wake
the system from Sleep Mode.
9. Press the main power button to turn power off to the product.
10.Make sure that the battery power LED is not illuminated so you know that the power is off.
NNoottee
• If the power is not off, the product will drain your vehicle battery.
• To supplement the charge of the battery before installation, use the Odyssey OBC charger. Current draw: 6A (1-2
batteries in parallel), 12A (1-4 batteries in parallel), or 20A (1-6 batteries in parallel). This charger has connections
for a single battery only. A harness that is rated for the current draw is required to create a parallel circuit for charging
multiple batteries.
• If you do not follow these requirements and recommendations, fully charge the battery, and turn off the product when
it is not in use, PPoowweerr--LLOOAADD battery failure may result.

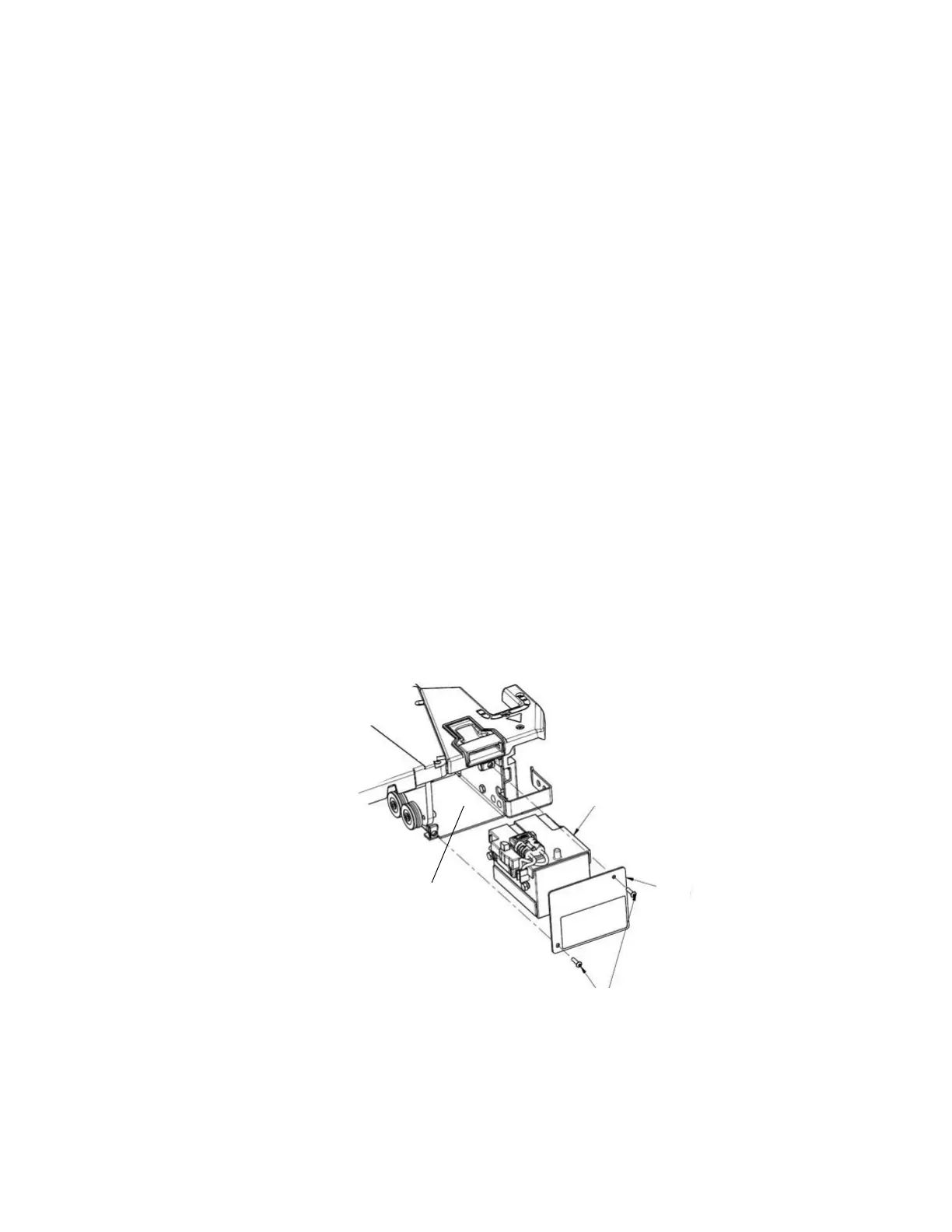

FFiigguurree 2200 –– BBaatttteerryy aasssseemmbbllyy
EN 24 6390-709-001 Rev AB.1
