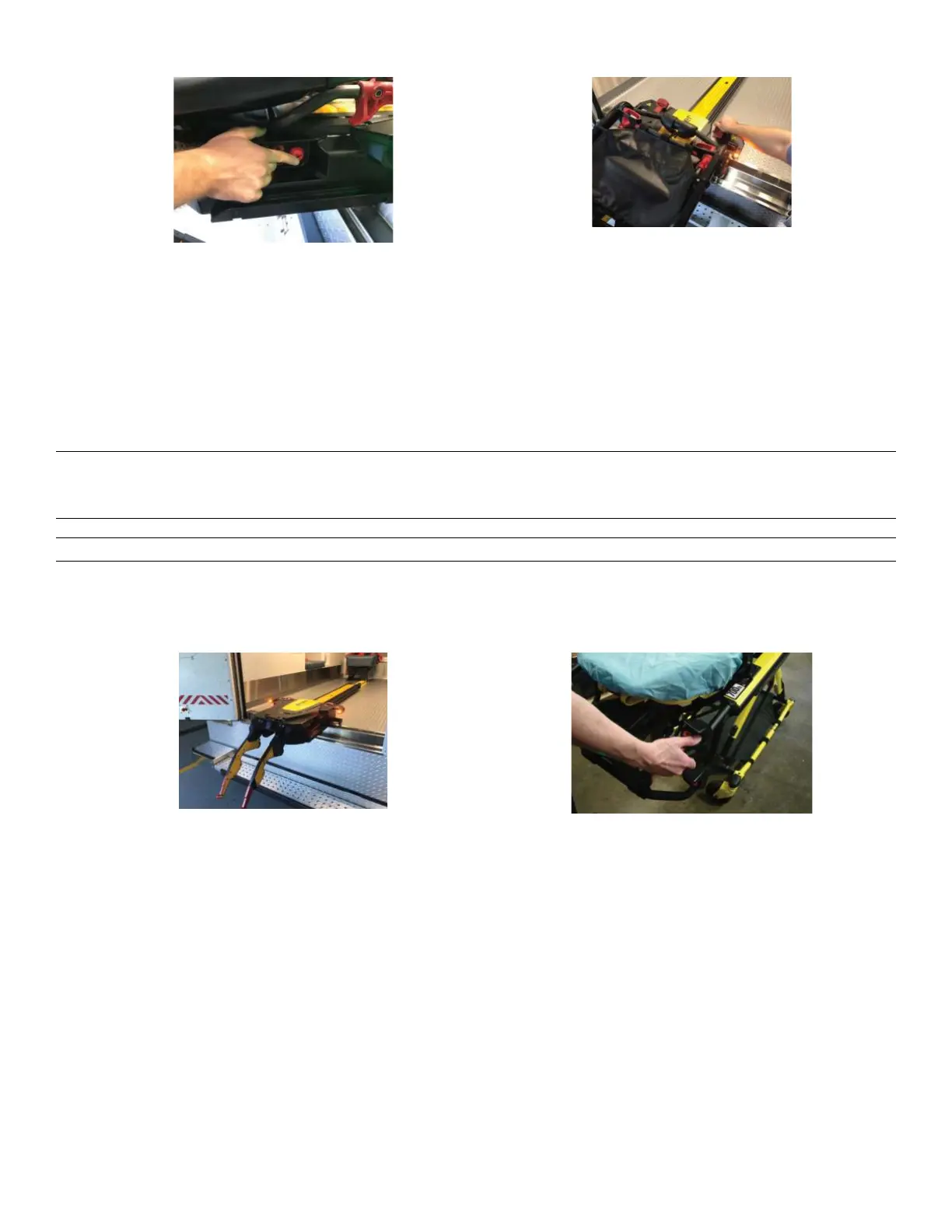

FFiigguurree 3344 –– LLoowweerr tthhee lliiffttiinngg aarrmmss
FFiigguurree 3355 –– UUnnlloocckk tthhee ccoott
8. Lift one of the two manual cot release handles at the head end of the trolley to unlock the cot (Figure 35).
9. Raise the lifting arms and guide the trolley into the vehicle patient compartment until the arms are far enough in to not
interfere with the vehicle doors.
LLooaaddiinngg aa PPoowweerr--PPRROO ccoott iinnttoo aa vveehhiiccllee wwiitthh tthhee PPoowweerr--LLOOAADD ooppttiioonn
WWAARRNNIINNGG
• Always load or unload an occupied cot into a vehicle with a minimum of two trained operators.
• Always load the PPoowweerr--LLOOAADD compatible cot into the vehicle patient compartment before all occupants.
CCAAUUTTIIOONN -- Do not slam the cot into the trolley when you load the cot to avoid the risk of equipment damage.
1. Lift the vehicle bumper to the raised position, if equipped.
2. Raise the lifting arms to guide and pull the trolley out of the vehicle patient compartment (
Figure 36).
FFiigguurree 3366 –– GGuuiiddee ttrroolllleeyy oouutt ooff vveehhiiccllee
FFiigguurree 3377 –– SSeett tthhee llooaadd hheeiigghhtt
3. Press and hold the extend (+) button on the cot control switch to extend the cot undercarriage to the set load height
(
Figure 37).
4. Fully extend and lock the cot retractable head section before you load the cot into PPoowweerr--LLOOAADD.
5. Push the cot into PPoowweerr--LLOOAADD until the cot load wheel pins lock into position (
Figure 38). Make sure that the cot is
aligned with the lifting arms when you load the cot.
6390-709-001 Rev AB.1 41 EN
