MMaannuuaall uusseerr ccoonnttrroollss
Manual user controls allow you to release a cot from PPoowweerr--LLOOAADD without power:
• Release lever
• Transfer lock trigger
• Trolley release button
• Cot release handle
• Transfer lock slide
A
B
C
D
D
E
B

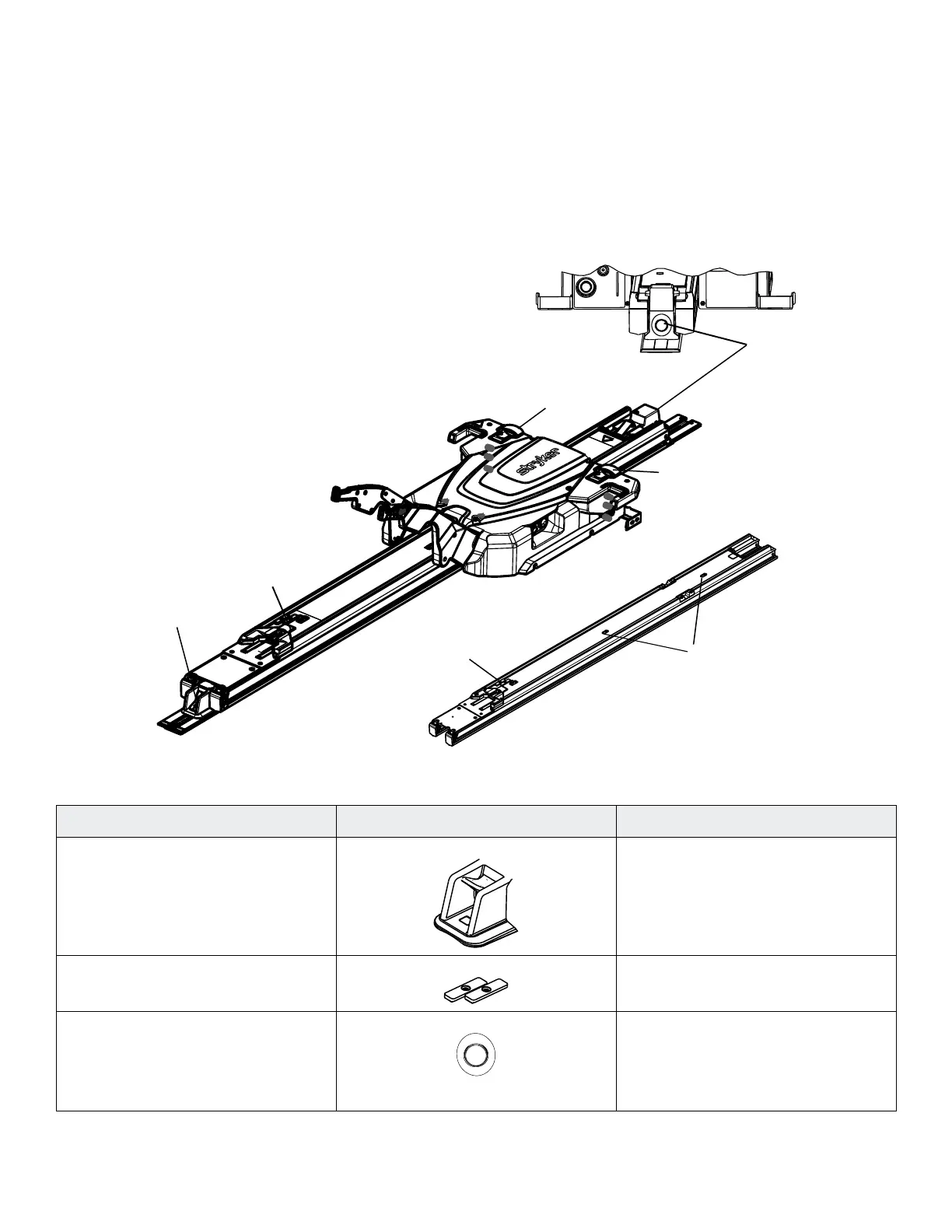

FFiigguurree 2233 –– TTrraannssffeerr sshhoowwnn wwiitthh aanndd wwiitthhoouutt ttrroolllleeyy
RReeff aanndd nnaammee IIccoonn oorr bbuuttttoonn DDeessccrriippttiioonn
A: Release lever (foot end) Press and hold to release the cot from
the patient compartment.
B: Transfer lock trigger (transfer)
Slide to release the transfer from a
locked position.
C: Trolley release (head end) Press while you raise the lifting arms
to release and extend PPoowweerr--LLOOAADD
from the vehicle patient compartment
without a cot. Then, pull the trolley out
of the vehicle patient compartment.
6390-709-001 Rev AB.1 31 EN
