LLooaaddiinngg aanndd uunnllooaaddiinngg wwiitthh ppoowweerreedd ooppeerraattiioonnss

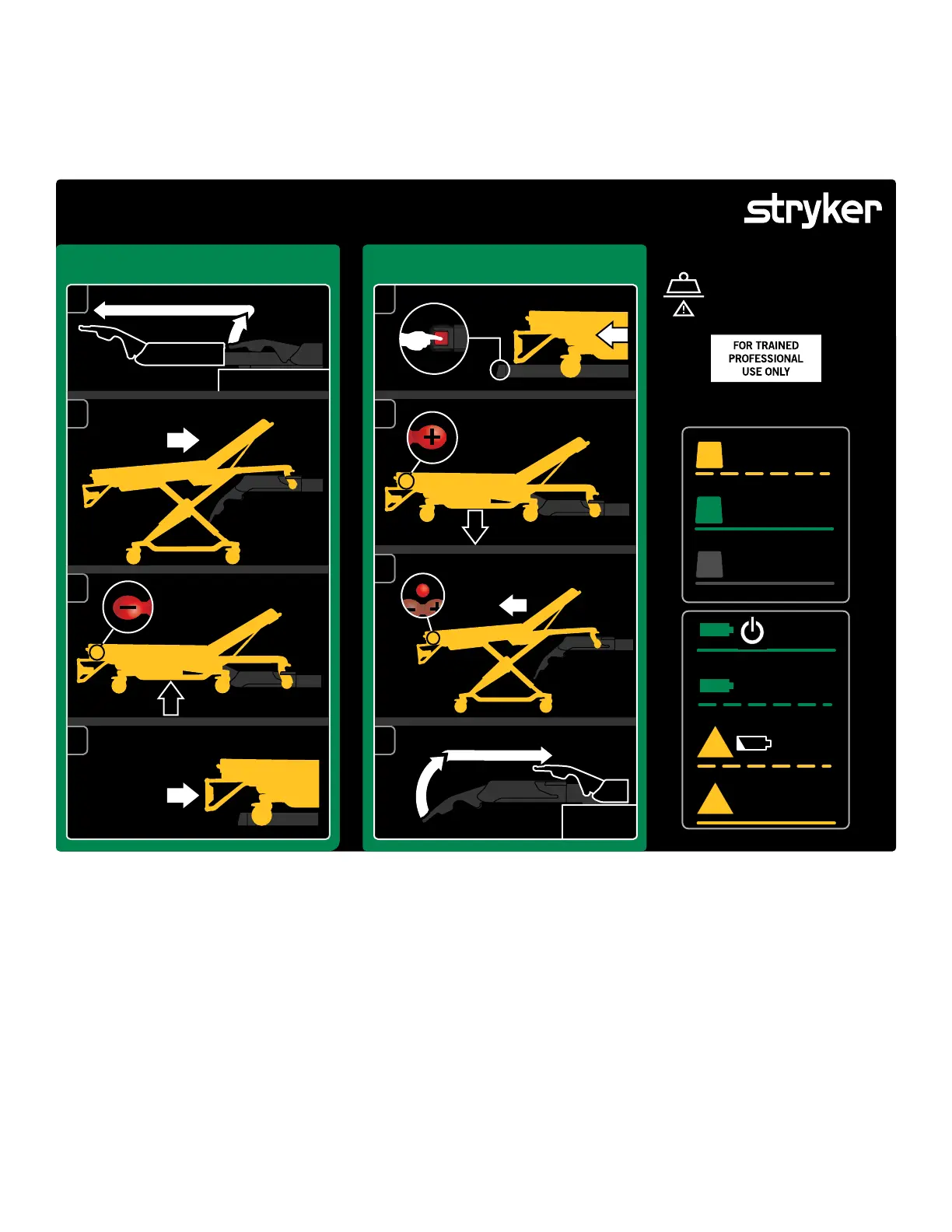

Adhere this Powered Operations instruction label to the plate (6390-001-467) and mount the plate on the inside door panel
or wall of the vehicle patient compartment where the plate is visible to users.
See
User controls and LED indicators
(page 28) for button and LED locations.
Between
positions or
in sleep mode
Cot is in
position
Cot is not
in position
LED Behavior
System on
Battery is
charging
System Error
Use Manual
Operations
Low battery
1 of 2
Load Unload
1
2
4
1
2
3
4
POWERED OPERATIONS
3
= 870 LBS / 395 KG
FFiigguurree 2255 –– PPoowweerreedd ooppeerraattiioonnss
LLooaaddiinngg PPoowweerr--LLOOAADD wwiitthh ppoowweerreedd ooppeerraattiioonnss
1. Raise the lifting arms to guide and pull the trolley out of the vehicle patient compartment.
2. Push the cot into PPoowweerr--LLOOAADD until the cot load wheel pins lock into position. Make sure that the cot is aligned with the
lifting arms when you load the cot.
3. Press and hold the retract (-) button on the cot control switch to fully retract the cot undercarriage until the cot is
supported.
4. Push the cot into the vehicle patient compartment until the lifting arms lower and the cot locks into PPoowweerr--LLOOAADD.
5. Make sure that the cot is locked into PPoowweerr--LLOOAADD by firmly pulling side to side on the foot end of the cot.
6. For additional loading instructions, see
Loading a Power-PRO cot into a vehicle with the Power-LOAD option
(page 41).
EN 34 6390-709-001 Rev AB.1
