RReemmoovviinngg aa ccoott ffrroomm aa vveehhiiccllee ffoorr rreeppaaiirr
WWAARRNNIINNGG
• Always load or unload an occupied cot into a vehicle with a minimum of two trained operators.
• Always use both hands when you handle the cot. PPoowweerr--LLOOAADD is only an assisting device. Evaluate each situation to
determine how to distribute and lift the weight that you are transporting.
• Always make sure that the cot base is extended before you press any buttons on the PPoowweerr--LLOOAADD control panel when
you unload the cot.
1. Operator 1: Press and hold the trolley release button at the head end of the PPoowweerr--LLOOAADD system.
2. Operator 2: Slide both transfer lock triggers (closest to the foot end) toward the foot end of the transfer assembly to
unlock. With the help of Operator 1, push the cot and transfer firmly out of the vehicle patient compartment.
3. Operator 1: With a screwdriver or similar tool, push on the hook assembly underneath the transfer while Operator 2
pushes the transfer forward toward the head end of the vehicle patient compartment to release the cot from the lock.
4. After the cot is unlocked, pull the cot all the way out.
5. Make sure that the cot base is extended, then lift one of the manual cot release handles at the head end of PPoowweerr--
LLOOAADD to unlock the cot.
LLooaaddiinngg aa ccoott iinnttoo aa vveehhiiccllee mmaannuuaallllyy ((PPoowweerr--PPRROO ppoowweerr lloossss))
WWAARRNNIINNGG
• Always load or unload an occupied cot into a vehicle with a minimum of two trained operators.
• Always load the cot before you allow patients to enter the vehicle patient compartment.
CCAAUUTTIIOONN
• Do not push the cot into the vehicle patient compartment until you fully retract the cot base.
• Do not slam the cot into the trolley when you load the cot to avoid the risk of equipment damage.
• Do not let go of the manual release until the cot locks into position at the foot end. If you let go too early, then the cot
base may prevent the cot from locking into PPoowweerr--LLOOAADD.
1. Lift the vehicle bumper to the raised position, if equipped.
2. Raise the lifting arms (Figure 48) to guide and pull the trolley out of the vehicle patient compartment.

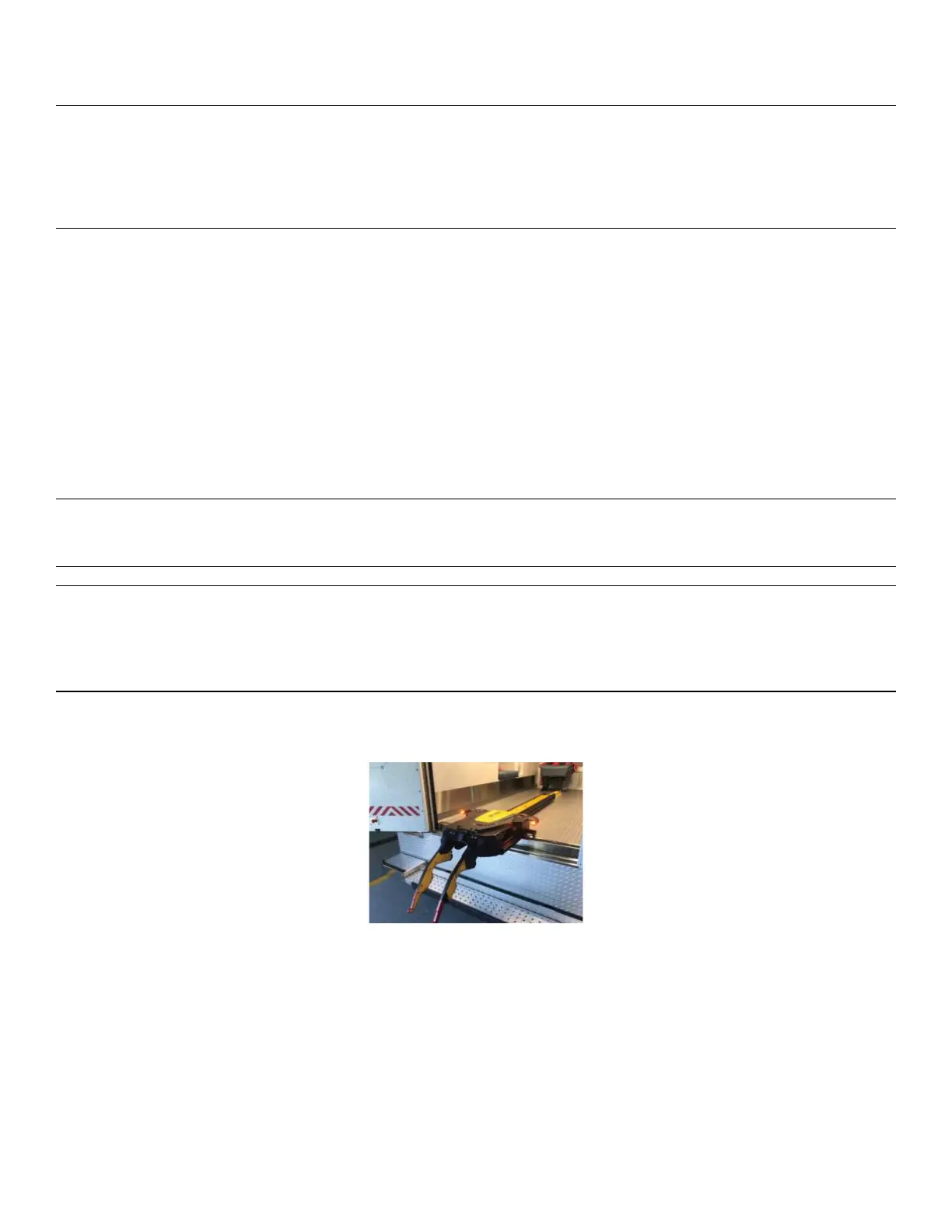

FFiigguurree 4488 –– GGuuiiddee tthhee ttrroolllleeyy oouutt ooff tthhee vveehhiiccllee
3. Raise the cot to the load position.
4. Fully extend and lock the cot retractable head section before you load the cot into PPoowweerr--LLOOAADD.
5. Push the cot into PPoowweerr--LLOOAADD until the cot load wheel pins lock into position (
Figure 49). Make sure that the cot is
aligned with the lifting arms when you load the cot.
6. Check the head end LED indicators to make sure that the cot is ready to load.
• If the LEDs are solid green, then the cot head end is in position.
6390-709-001 Rev AB.1 47 EN
