• Do not use hand or fingers to press the release button when the rail jaws are open. The rail clamp fastener closes with a
strong spring action.
The loading and unloading operations are similar to the instructions for manual loading and unloading of a cot. However, a
rail clamp assembly is used instead of a foot end cot lock. When you load a non-compatible cot, lock the cot retaining post
into the rail clamp assembly.
The mass casualty option contains a rail assembly for wall or floor mount. You should store this rail assembly in a cabinet in
case of emergency for quick attachment in the vehicle patient compartment.
EExxtteennddiinngg PPoowweerr--LLOOAADD ffrroomm tthhee vveehhiiccllee wwiitthhoouutt aa ccoott
To extend PPoowweerr--LLOOAADD from the vehicle patient compartment without a cot:
1. Walk to the head end of the PPoowweerr--LLOOAADD system.
2. While you raise the lifting arms, press the trolley release button at the head end of the PPoowweerr--LLOOAADD system (
Figure
27).
3. Pull the trolley out of the vehicle patient compartment (
Figure 28).

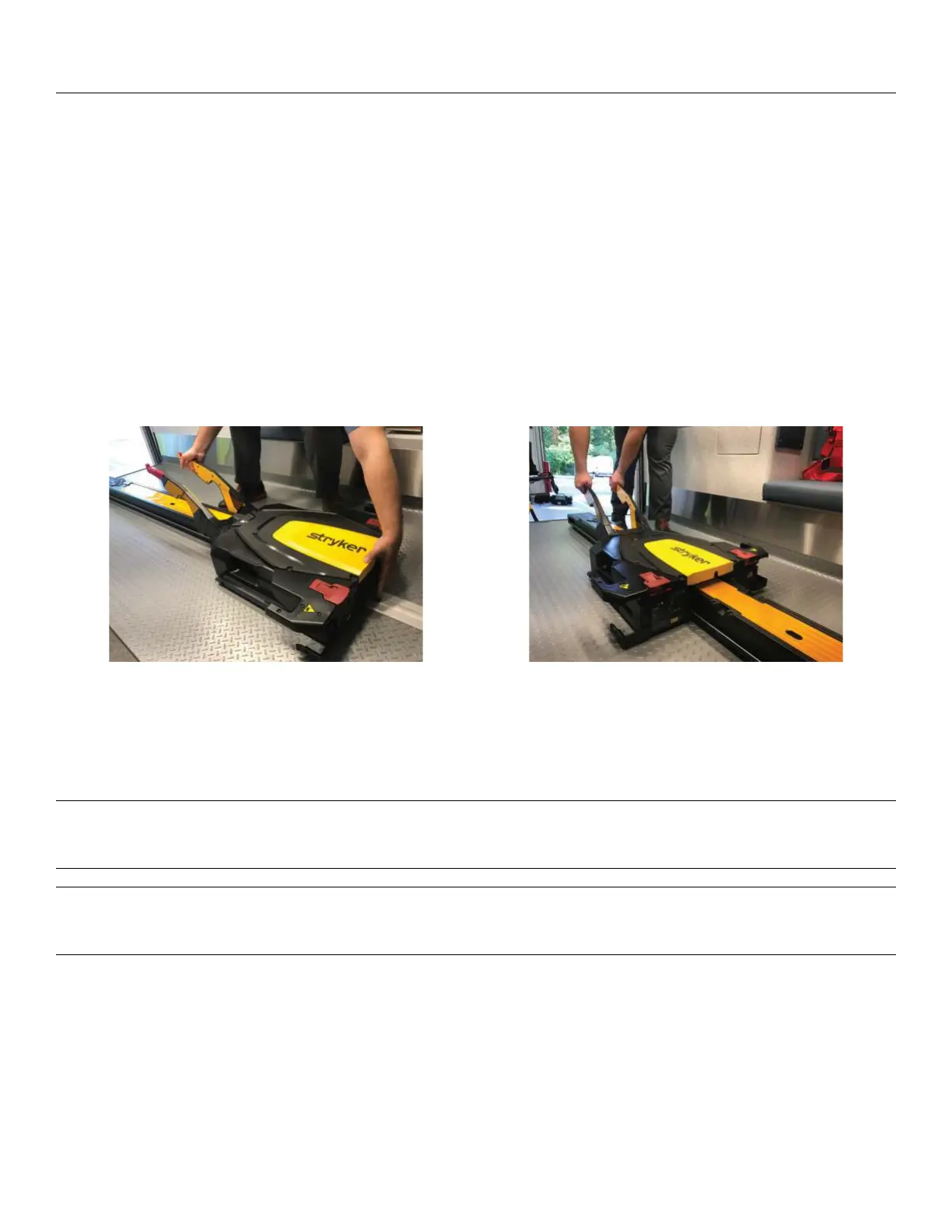

FFiigguurree 2277 –– PPrreessss ttrroolllleeyy rreelleeaassee bbuuttttoonn FFiigguurree 2288 –– PPuullll ttrroolllleeyy oouutt
LLooaaddiinngg aa PPeerrffoorrmmaannccee--PPRROO ccoott iinnttoo aa vveehhiiccllee wwiitthh tthhee PPoowweerr--LLOOAADD ooppttiioonn
WWAARRNNIINNGG
• Always load or unload an occupied cot into a vehicle with a minimum of two trained operators.
• Always load the PPoowweerr--LLOOAADD compatible cot into the vehicle patient compartment before all occupants.
CCAAUUTTIIOONN
• Do not slam the cot into the trolley when you load the cot to avoid the risk of equipment damage.
• Do not push the cot into the vehicle patient compartment until the cot base is fully retracted.
1. Lift the vehicle bumper to the raised position, if equipped.
2. Raise the lifting arms to guide and pull the trolley out of the vehicle patient compartment (
Figure 29).
EN 38 6390-709-001 Rev AB.1
