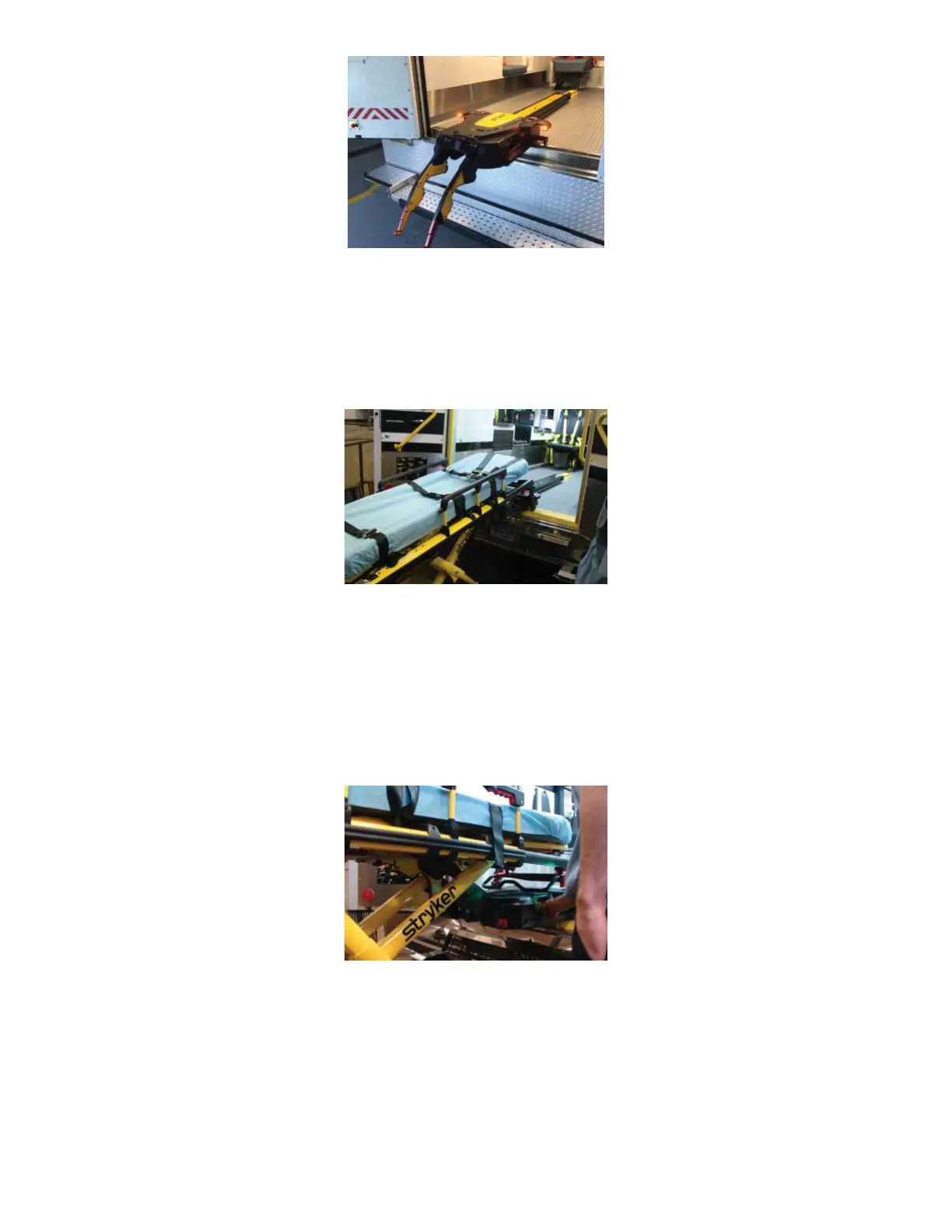

FFiigguurree 2299 –– GGuuiiddee ttrroolllleeyy oouutt ooff vveehhiiccllee
3. Raise the cot to the load position.
4. Fully extend and lock the cot retractable head section before you load the cot into PPoowweerr--LLOOAADD.
5. Push the cot into PPoowweerr--LLOOAADD until the cot load wheel pins lock into position (
Figure 30). Make sure that the cot is
aligned with the lifting arms when you load the cot.
FFiigguurree 3300 –– LLoocckk wwhheeeell ppiinnss iinnttoo ppoossiittiioonn
6. Check the head end LED indicators to make sure that the cot is ready to load.
• If the LEDs are solid green, then the cot head end is in position.
• If the LEDs are flashing amber, then the cot head end is not in position.
7. Press the up (↑) button on the PPoowweerr--LLOOAADD control panel to raise the lifting arms to the highest position (
Figure 31).
NNoottee -- The cot legs do not retract.
FFiigguurree 3311 –– RRaaiissee tthhee lliiffttiinngg aarrmmss ttoo tthhee hhiigghheesstt ppoossiittiioonn
8. Operator 1 (foot end): Grasp the cot frame at the foot end. Squeeze and hold the cot manual release.
9. Operator 2 (side): Grasp the outer rail to stabilize the cot. Then, grasp the base frame (
Figure 32). After the foot end
operator has lifted the cot and squeezed the cot manual release, retract the undercarriage with one hand and hold it in
place.
6390-709-001 Rev AB.1 39 EN
