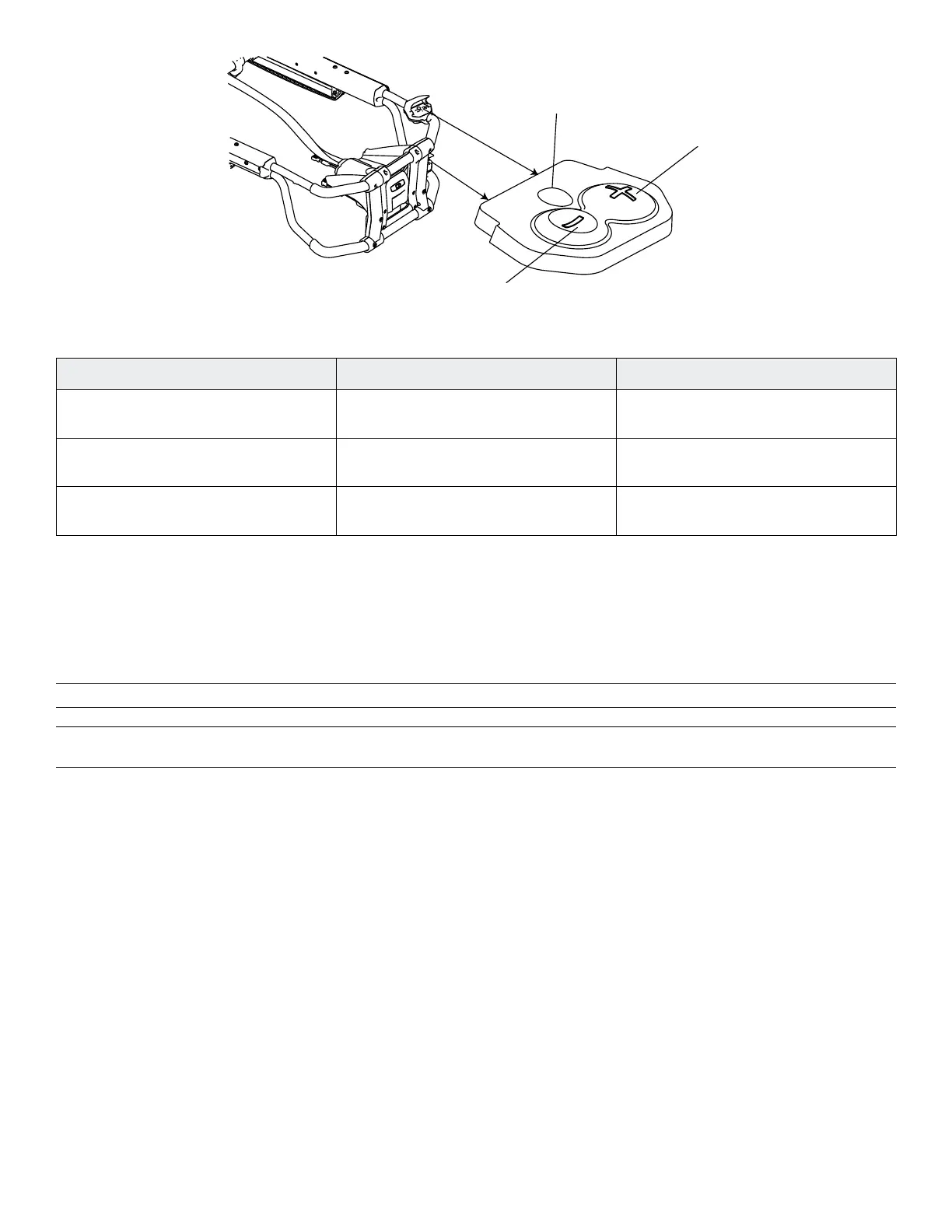

FFiigguurree 2244 –– CCoott ccoonnttrrooll sswwiittcchheess
RReeffeerreennccee NNaammee DDeessccrriippttiioonn
A Release Press to unlock the cot (for use with
PPoowweerr--LLOOAADD only)
B Retract (-) Press and hold to lower the litter or
retract the cot undercarriage
C Extend (+) Press and hold to raise the litter or
extend the cot undercarriage
CChheecckkiinngg tthhee bbaatttteerryy ppoowweerr lleevveell
Use the cot battery LED indicator to check the SSMMRRTT Pak power level. A charged SSMMRRTT Pak, in working condition,
provides up to 25 calls with a 250 pound patient (actual results may vary). The 24 VDC PPoowweerr--PPRROO system and the SSMMRRTT
Pak is rated for 2.4 amp-hours of electric energy.
WWAARRNNIINNGG -- Do not remove the battery when the cot is active.
CCAAUUTTIIOONN -- Always charge the battery before you place the product into service. An uncharged or depleted battery may
cause poor product performance.
To check the battery power level, press the retract (-) button on the cot control switch to activate the cot battery LED
indicator. The cot battery LED indicator is located at the foot end control enclosure (shown as a battery symbol).
• The LED is solid green when the battery has a full charge or has an adequate battery power charge.
NNoottee -- For best results, use the SSMMRRTT Pak until the cot battery LED indicator changes from solid green to flashing
amber.
• The LED flashes amber when you need to charge or replace the battery
NNoottee -- The cot battery LED indicator does not have to flash amber before you remove and replace the SSMMRRTT Pak,
however, this is considered to be a best practice. You can remove and recharge the SSMMRRTT Pak at any time.
• The LED is a solid amber to indicate a battery error.
NNoottee
• Only use Stryker approved batteries.
• If equipped, the powered cot fastener automatically charges the SSMMRRTT Pak battery. Automatic charging occurs when
you lock the cot into the powered cot fastener (no cable or connectors required). The cot battery LED indicator flashes
green for a moment to signify that it is charging.
• Automatic charging will only occur with SSMMRRTT Pak batteries.
6390-709-001 Rev AB.1 33 EN
