0004-658-000 (1)
0004-662-000 (4)
0004-665-000 (6)
6390-001-106 (1)
6390-001-150 (4)
639000010210 (1) 639000010211 (1)
6390-001-225 (1)
639000010243 (2)
639000010244 (2)
639000010246 (2)
6390-001-467 (2)
6390-101-108 (4)
6390-001-110 (4)
0001-194-000 (4)
639001010101 (1)
6390-001-166 (2)

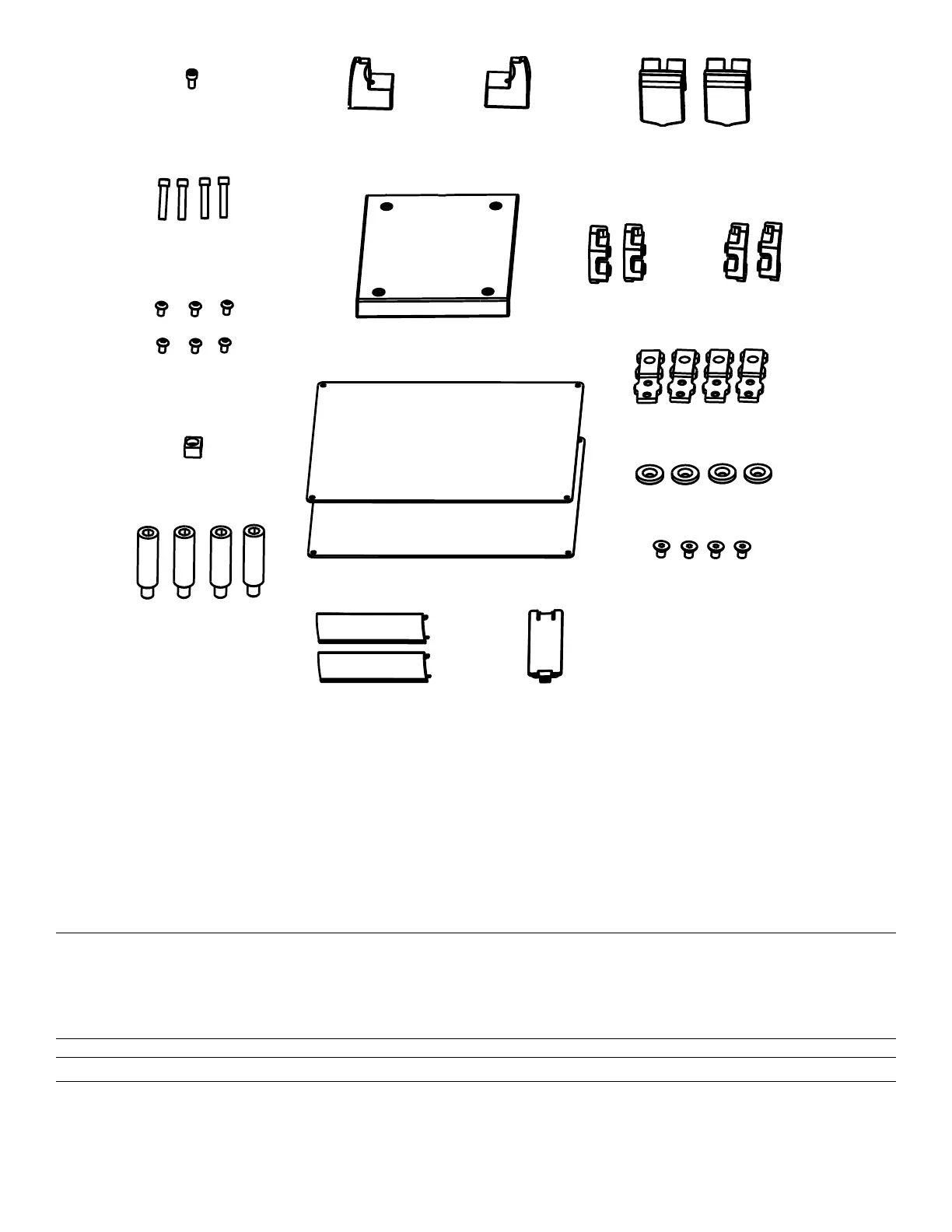

FFiigguurree 22 –– PPoowweerr--LLOOAADD aasssseemmbbllyy iinnssttaallllaattiioonn kkiitt ccoommppoonneennttss 66339900--000011--005544
IInnssttaalllliinngg tthhee fflloooorr ppllaattee
Install the Stryker universal floor plate in your vehicle patient compartment before you install your cot fastener system. See
the Stryker Global Floor Plate Installation Manual (6390-009-020) for instructions.
IInnssttaalllliinngg PPoowweerr--LLOOAADD
WWAARRNNIINNGG
• Always use two installers when you lift and position the transfer and trolley assembly to avoid the risk of injury.
• Always keep hands, fingers, and feet away from moving parts.
• Always wear appropriate eye protection while you operate a saw. Secure the item that you are cutting and be aware of
the area around your cutting location.
CCAAUUTTIIOONN -- Do not break the cot inductive charge housing when you install the transfer assembly.
EN 14 6390-709-001 Rev AB.1
