PPoowweerr--LLOOAADD assembly kit components (6390-001-054)
(1) Socket head cap screw (0004-
658-000)
(4) Socket head cap screw (0004-662-
000)
(6) Button head cap screw (0004-665-
000)
(4) Anchor mounting post (6390-001-
150)
(1) Trolley magnet activator (6390-001-
106)
(1) Transfer trim, head end, right
(639000010211)
(1) Transfer trim, head end, left
(639000010210)
(2) Dead stop bumper (639000010243) (1) Transfer wear pad, foot end (6390-
001-225)
(2) Dead stop block, threaded
(639000010246)
(2) Dead stop block, thru hole
(639000010244)
(4) Flat head cap screw (0001-194-
000)
(4) Floor plate attachment bracket
(6390-101-108)
(4) Sub anchor attachment bracket
(6390-001-110)
(2) Floor plate cover, short (6390-001-
166)
(1) Anchor inductive primary cover
(639001010101)
AAddddiittiioonnaall ppaarrttss uusseedd ((nnoott iinncclluuddeedd))
Electrical tape
TToooollss rreeqquuiirreedd::
5/32'' hex wrench Measuring tape Saw
Flat blade screwdriver 3/8'' hex wrench 3/16'' hex wrench
T25 Torx driver 1/2'' drive torque wrench (ft-lb) > 60 ft-
lb
PPrroocceedduurree::
1. Lift the vehicle bumper to the raised position, if equipped.
2. Measure from the end of the floor plate to the end of the bumper to determine how far you can move the anchor toward
the head end (
Figure 3).

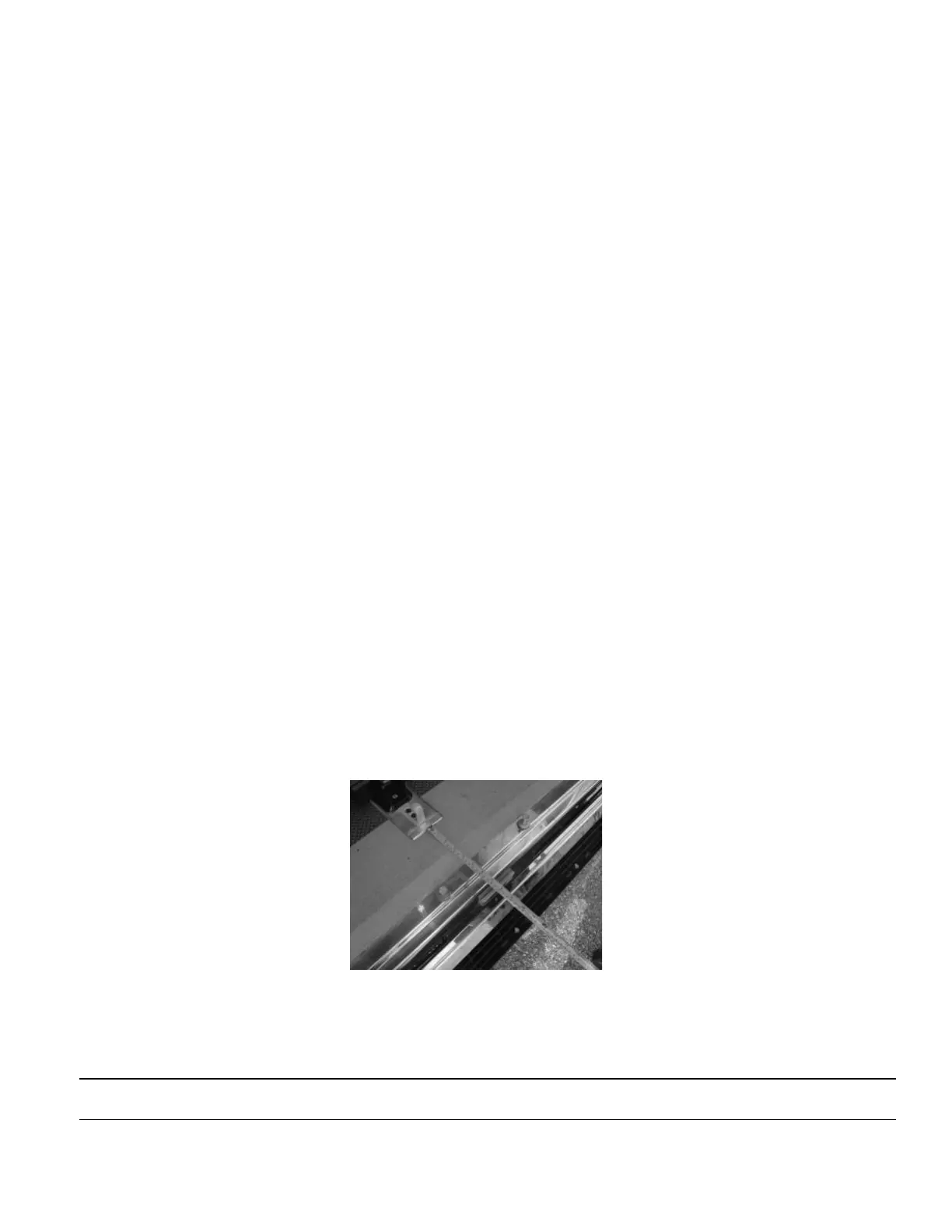

FFiigguurree 33 –– MMeeaassuurree ffoorr aanncchhoorr iinnssttaallllaattiioonn
NNoottee -- If the distance measured is less than 18 in. (46 cm), you can shift PPoowweerr--LLOOAADD closer to the head end of the
vehicle patient compartment by a maximum of 18 in. (46 cm) and the measured distance.
WWAARRNNIINNGG -- Always allow for bumper clearance. Inadequate bumper clearance could result in patient or operator
injury.
6390-709-001 Rev AB.1 15 EN
