3. Locate the first floor plate attachment bracket (6390-101-108) (Figure 4) location (near the foot end). This location
provides the most wheel clearance.
• To shift the cot closer to the head end of the vehicle patient compartment, select another floor plate attachment
location.
• Make sure that the location is not further from the first location than the value calculated in step 2. Leave enough
room for the cot base to clear the vehicle bumper.
• Flip the bracket (
Figure 5) to move the mounting location an additional 2 in. (5 cm) toward the head end.
•
Figure 4 shows the location for the most wheel clearance from the bumper. Figure 5 shows the location for the least
wheel clearance from the bumper and represents an 8 in. (20.3 cm) shift in from the first location. Select the location
that provides the appropriate wheel clearance for your set up. In
Figure 4 and Figure 5 below, (A) represents the
head end of the vehicle patient compartment and (B) represents the foot end.

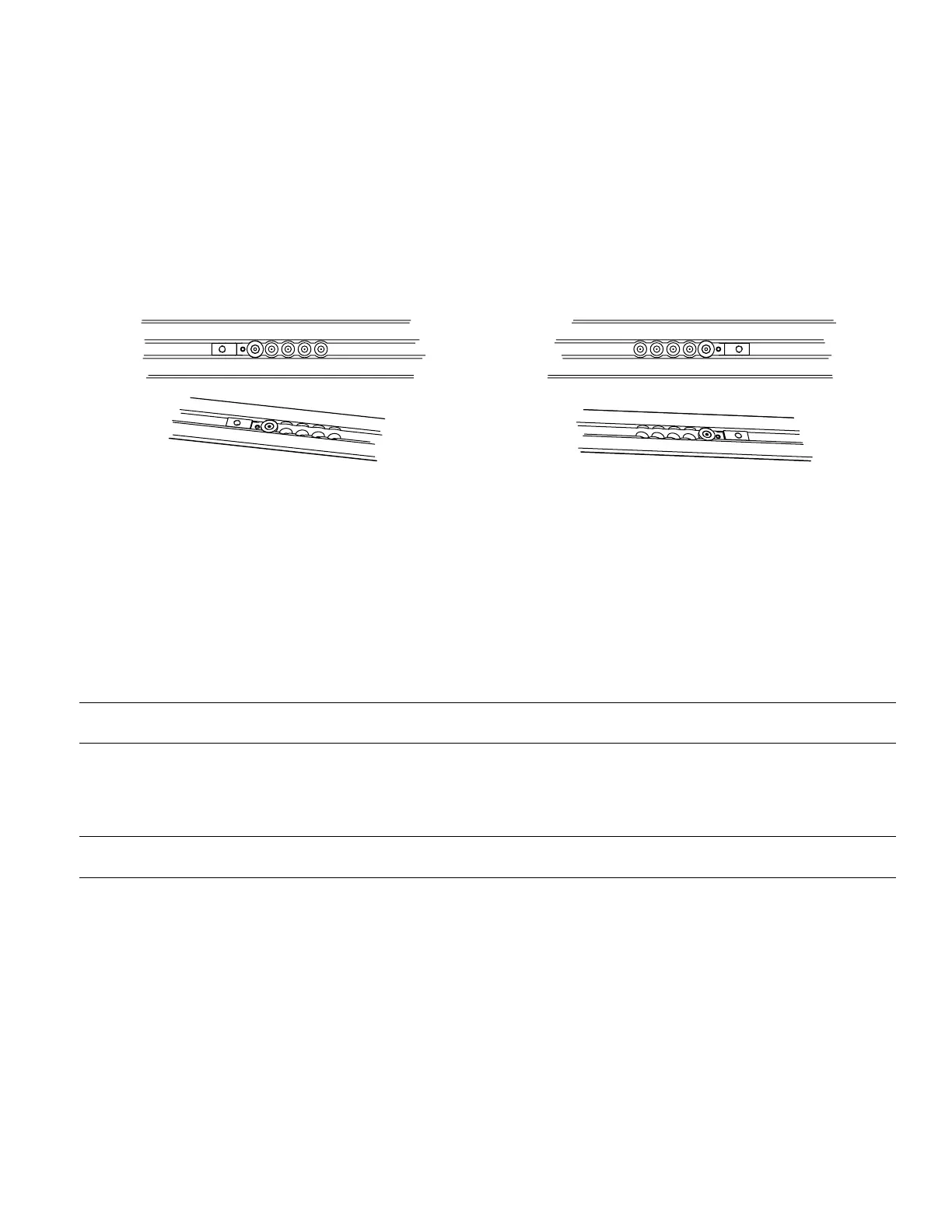

FFiigguurree 44 –– MMoosstt wwhheeeell cclleeaarraannccee
FFiigguurree 55 –– FFlliippppiinngg tthhee bbrraacckkeett
4. Using a 5/32'' hex wrench, install a flat head cap screw (0001-194-000) to the sub anchor attachment bracket retainer
(6390-001-110) to secure the floor plate attachment bracket (6390-101-108).
5. Repeat step 3 and 4 for the three other locations in the floor plate assembly.
NNoottee -- The position of these three floor plate attachment brackets must match the location that was selected in step 3.
6. Route the anchor‐to‐vehicle cable (639000010135) into the bottom of the anchor and out through the window on the
side of the anchor (
Figure 6).
7. Position the anchor over the mounting holes. Route any excess wire back through the electrical rubber grommet.
WWAARRNNIINNGG -- Always seal all gaps to the exterior of the vehicle to prevent exhaust fumes from entering the vehicle
patient compartment.
NNoottee -- Apply silicone sealant to the electrical rubber grommet to completely seal the electrical pass through.
8. Carefully place the anchor assembly (C) on top of the floor plate assembly (D) (
Figure 6), and lay the excess wire into
the floor plate pocket. Align the four holes with the floor plate attachment brackets.
CCAAUUTTIIOONN -- Always make sure that the wires rest inside of the floor plate pocket and are not pinched by the anchor
assembly when you install the anchor assembly.
EN 16 6390-709-001 Rev AB.1
