Installation
Positioning of the vehicle safety hook, front to back (Continued)
6060-036-018
6060-036-017
6092-036-018
A
B

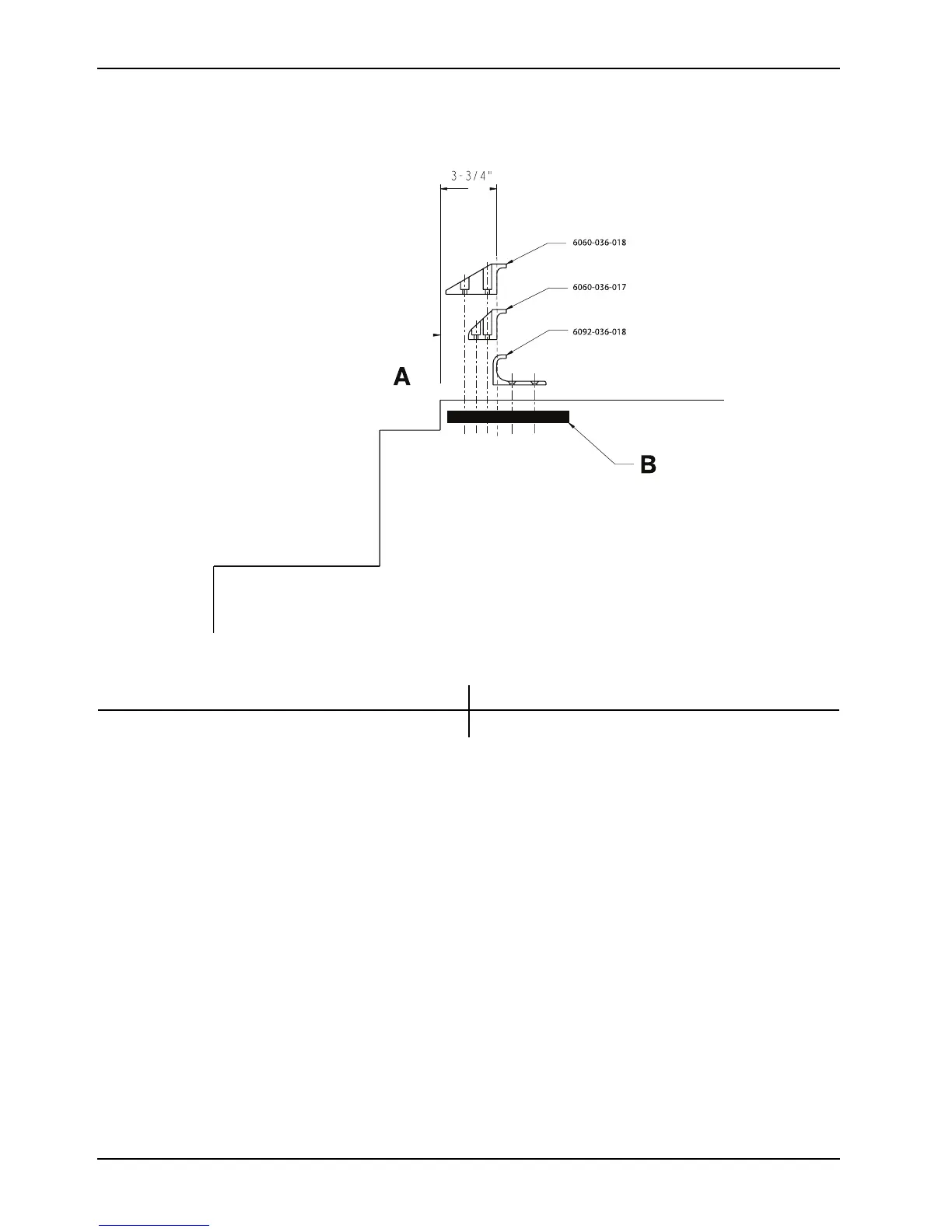

Figure 9: Vehicle safety hook placement
A
Sill
B Floor structure support
Positioning of the vehicle safety hook, side to side
Before you install the vehicle safety hook, check the front to back and side to side positioning, when you unload and load
the cot.
To check the side to side positioning:
1. Remove the cot from the cot fastener and unload it from the vehicle.
2. Note the position of the cot load wheels and the cot safety bar when you are remove the cot.
3. Mark the center of the cot safety bar on the vehicle floor.
4. Make sure that the position marked in step 3 is where the cot safety bar connects with the vehicle safety hook every
time when you unload the cot in a variety of positions (such as all the way to the left and all the way to the right).
