58 6506-209-001 REV F www.stryker.com
Operation
Installing the backrest storage pouch (Continued)

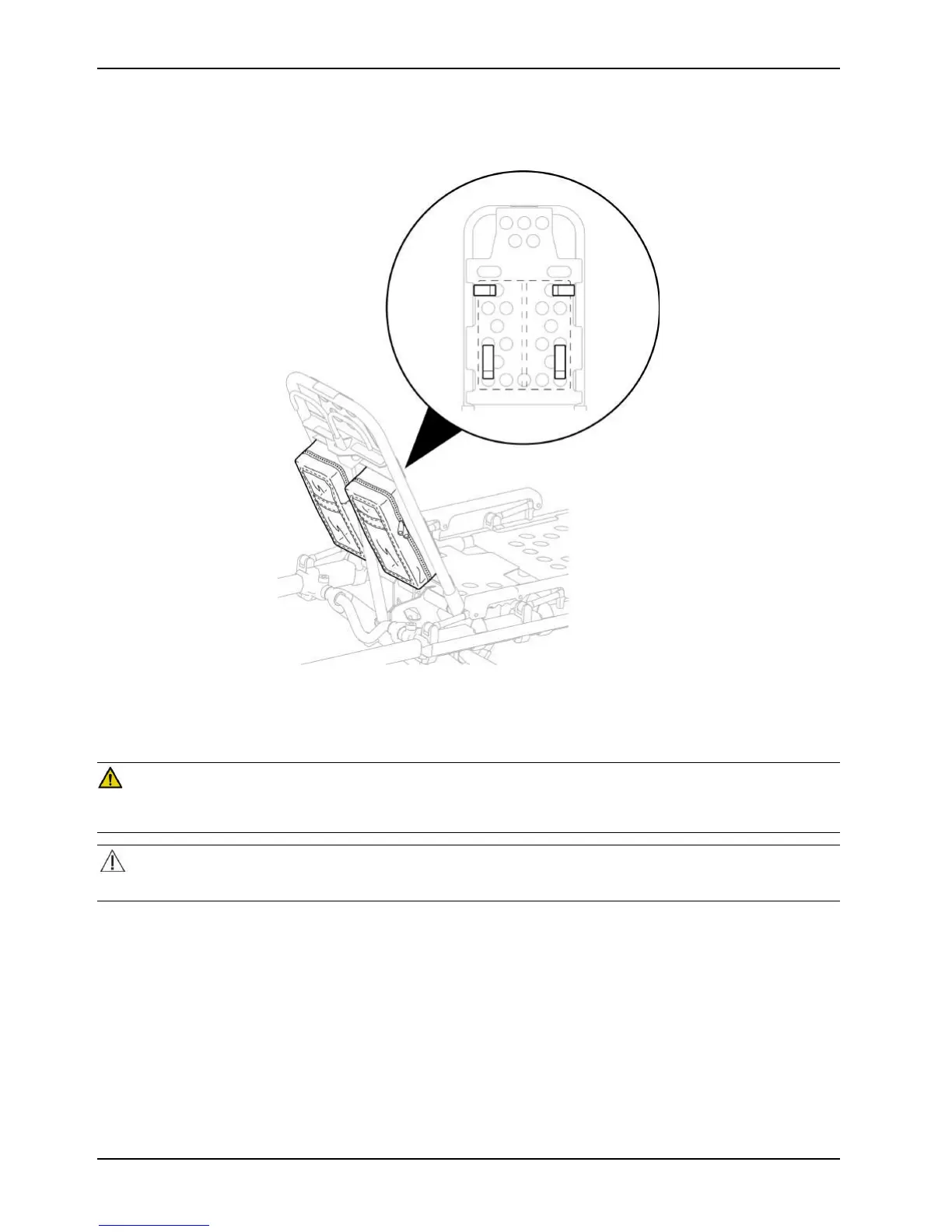

Figure 47: Backrest storage pouch
Installing the optional head end storage flat
WARNING
Do not allow the head end storage flat (if equipped) to interfere with the operation of the retractable head section, safety
bar, or vehicle safety hook.
CAUTION
Do not load the head end storage flat above the safe working load of 40 lb (18 kg).
To install the head end storage flat (Figure 48 on page 59):
1. Install the Velcro® straps (A) near the pneumatic cylinder and around the cross tube (C) of the retractable head
section.
2. Buckle the restraint straps (B) around the outer rails of the retractable head section.
