Checking the battery power level (Continued)
To check the battery power level, press the retract (-) button on the cot control switch to activate the cot battery LED
indicator. The cot battery LED indicator is located at the foot end control enclosure (shown as a battery symbol).
• The LED is solid green when the battery has a full charge or has an adequate battery power charge.
Note: For best results, use the SMRT Pak until the cot battery LED indicator changes from solid green to flashing
amber.
• The LED flashes amber when you need to charge or replace the battery
Note: The cot battery LED indicator does not have to flash amber before you remove and replace the SMRT Pak,
however, this is considered to be a best practice. You can remove and recharge the SMRT Pak at any time.
• The LED is a solid amber to indicate a battery error.
Notes
• Only use Stryker approved batteries.
• If equipped, the powered cot fastener automatically charges the SMRT Pak battery. Automatic charging occurs
when you lock the cot into the powered cot fastener (no cable or connectors required). The cot battery LED indicator
flashes green for a moment to signify that it is charging.
• Automatic charging will only occur with SMRT Pak batteries.
Checking the hour meter and error display
The hour meter indicates the amount of time (HHH.H hours) that the hydraulics were in use. The error display provides
error code information for troubleshooting.
Use the hour meter (A) (Figure 13 on page 28) to determine the frequency of preventive maintenance. Use the error
display (A) for troubleshooting. The error display overrides the hour meter display when an error occurs.
B
A
A
6506/6516 6550

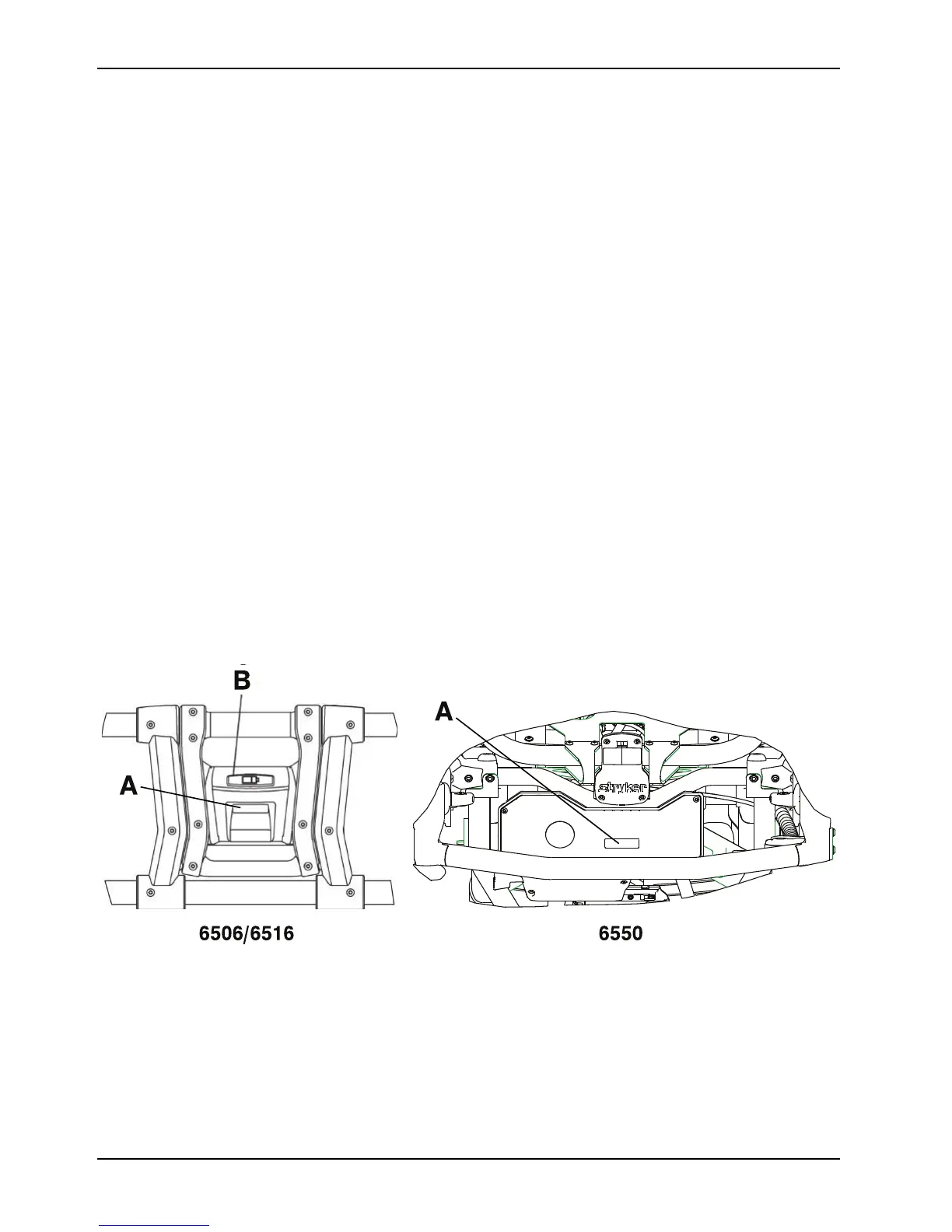

Figure 13: Checking the hour meter (A), error display (A), and battery status (B)
