Positioning the optional three-stage IV pole (Continued)
7. Turn the lock actuator (B) clockwise to tighten.
8. Lift up and pivot the pole down into the storage position.
A
B
C
D
E
F
A
B
E
D
C
F

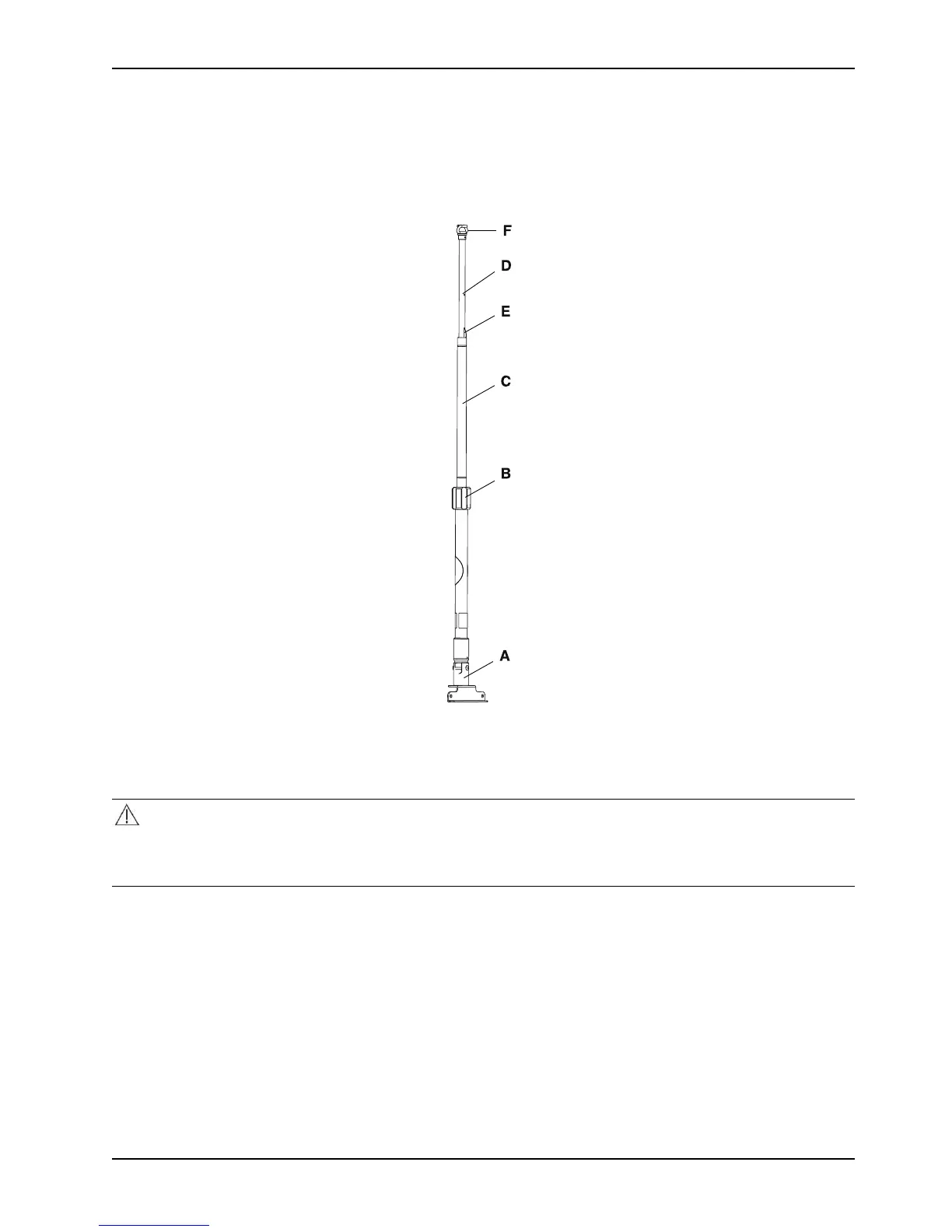

Figure 45: IV pole raised position
Attaching an oxygen bottle to the oxygen bottle holder
CAUTION
• Do not load the oxygen bottle holder above the safe working load of 15 lb (6.8 kg).
• Do not use two oxygen bottle holders at the same time.
To attach an oxygen bottle to the oxygen bottle holder:
1. Place an oxygen bottle in the holder.
2. Insert the lower strap through the buckle and affix the strap onto itself to secure the oxygen bottle to the holder.
