Operation
Applying or releasing the fifth wheel (option)
The steer pedals are located on each caster.
To apply the fifth wheel, depress the green pedal (Figure
1-11 on page 1-22). This lowers the fifth wheel and
allows you to maneuver the product forward and
backward in a straight path.

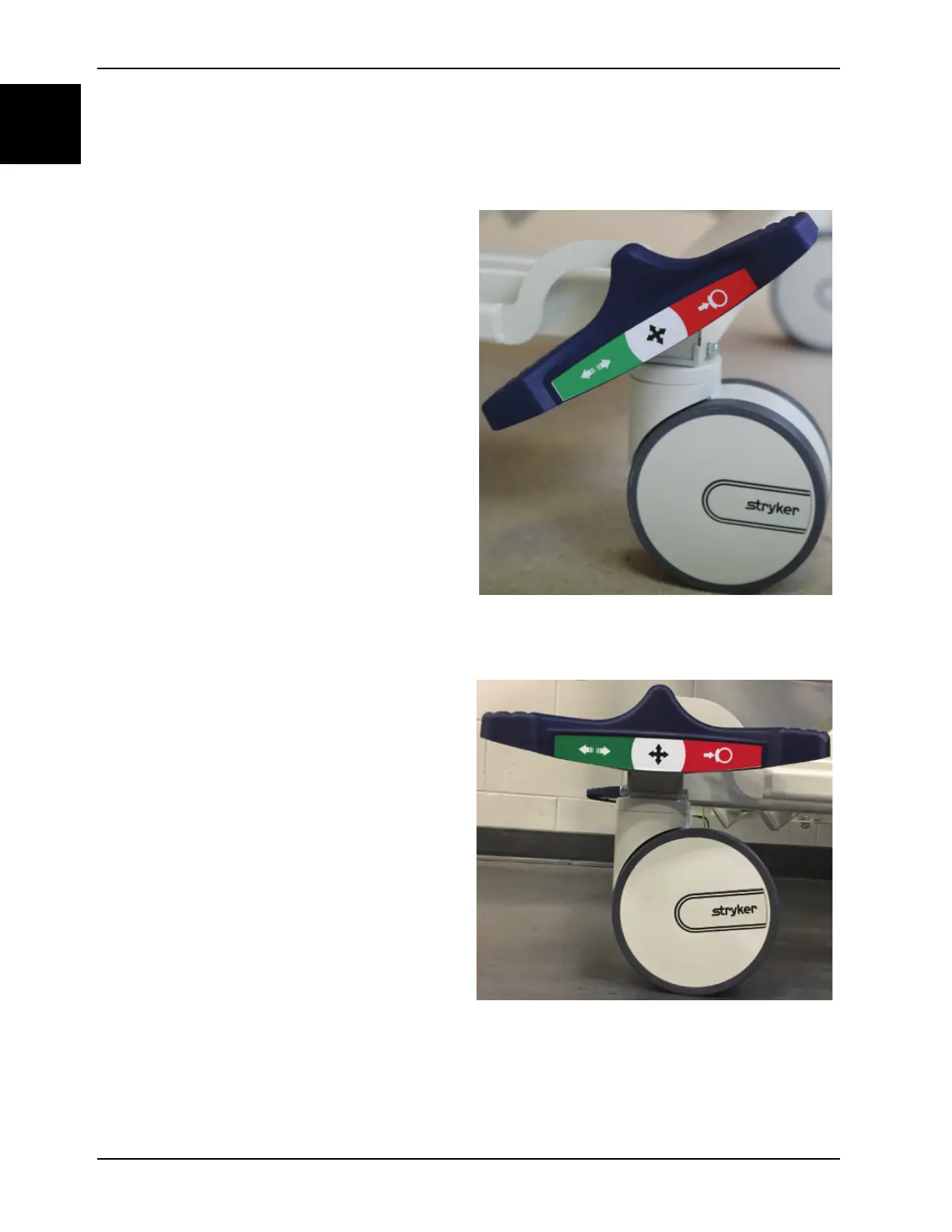

Figure 1-11: Applying the fifth wheel
To release the fifth wheel, depress the red pedal until the
pedal is in the neutral position (Figure 1-12 on page 1-22).
This retracts the fifth wheel and allows you to freely
move the product forward, backward, and from side to
side.
Figure 1-12: Releasing the fifth wheel
