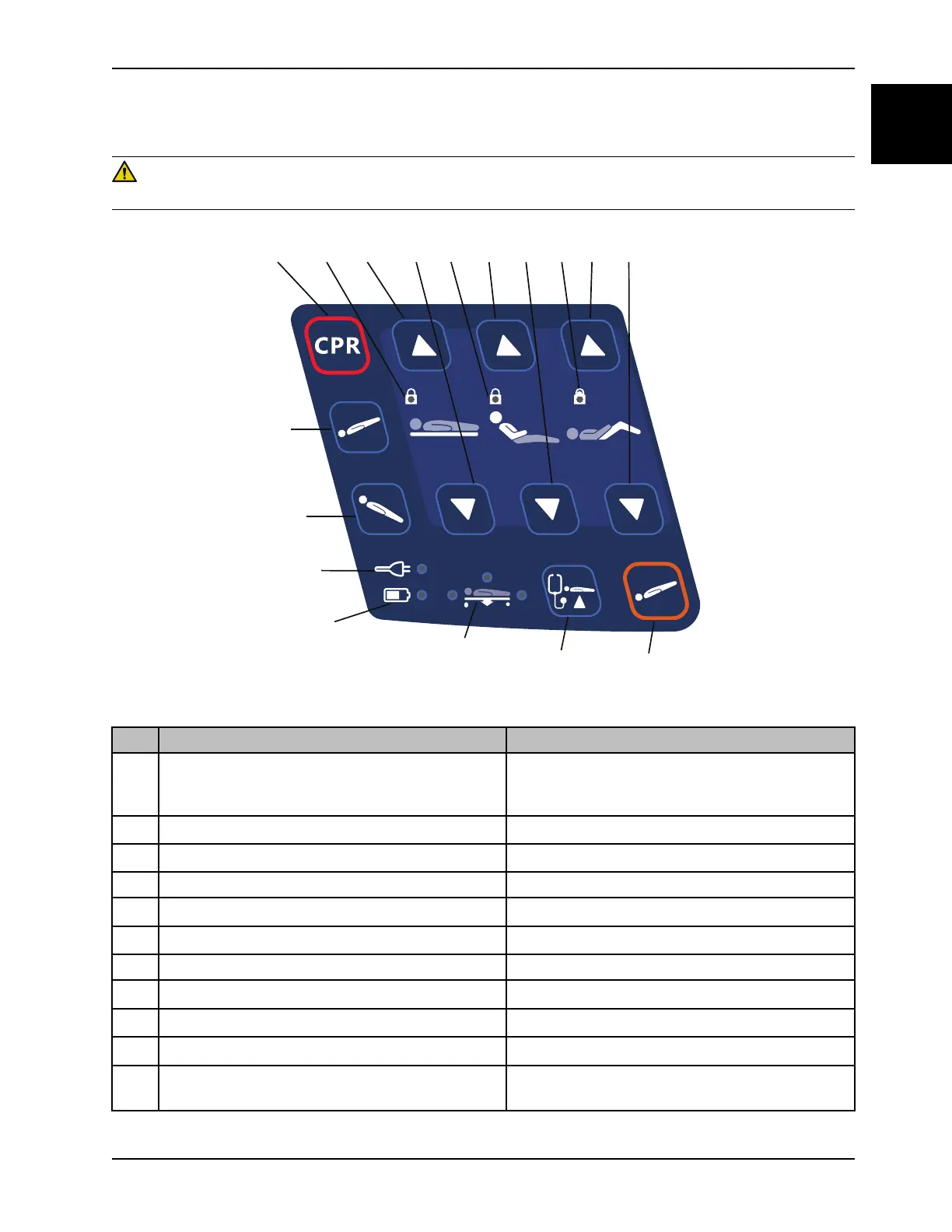

Nurse control panel (outside siderail) (option)
WARNING
Always lock bed motion controls when the patient is unattended.
A B C HD E F G I J
K
L
M
N
O
P
Q
Name Function
A
Emergency CPR
Overrides the control panel lockout to achieve the flat
position at low height. Also available if the control
panels are turned off.
B Litter lockout LED
Illuminates when you lock the litter section
C
Litter up
Raises the litter
D Litter down Lowers the litter
E
Backrest lockout LED
Illuminates when you lock the backrest section
F
Backrest up
Raises the backrest
G
Backrest down Lowers the backrest
H
Upper leg lockout LED Illuminates when you lock the upper leg section
I
Upper leg up Raises the upper leg section
J
Upper leg down Lowers the upper leg section
K
Trendelenburg
Places the product into the Trendelenburg position
(head down with foot up)
