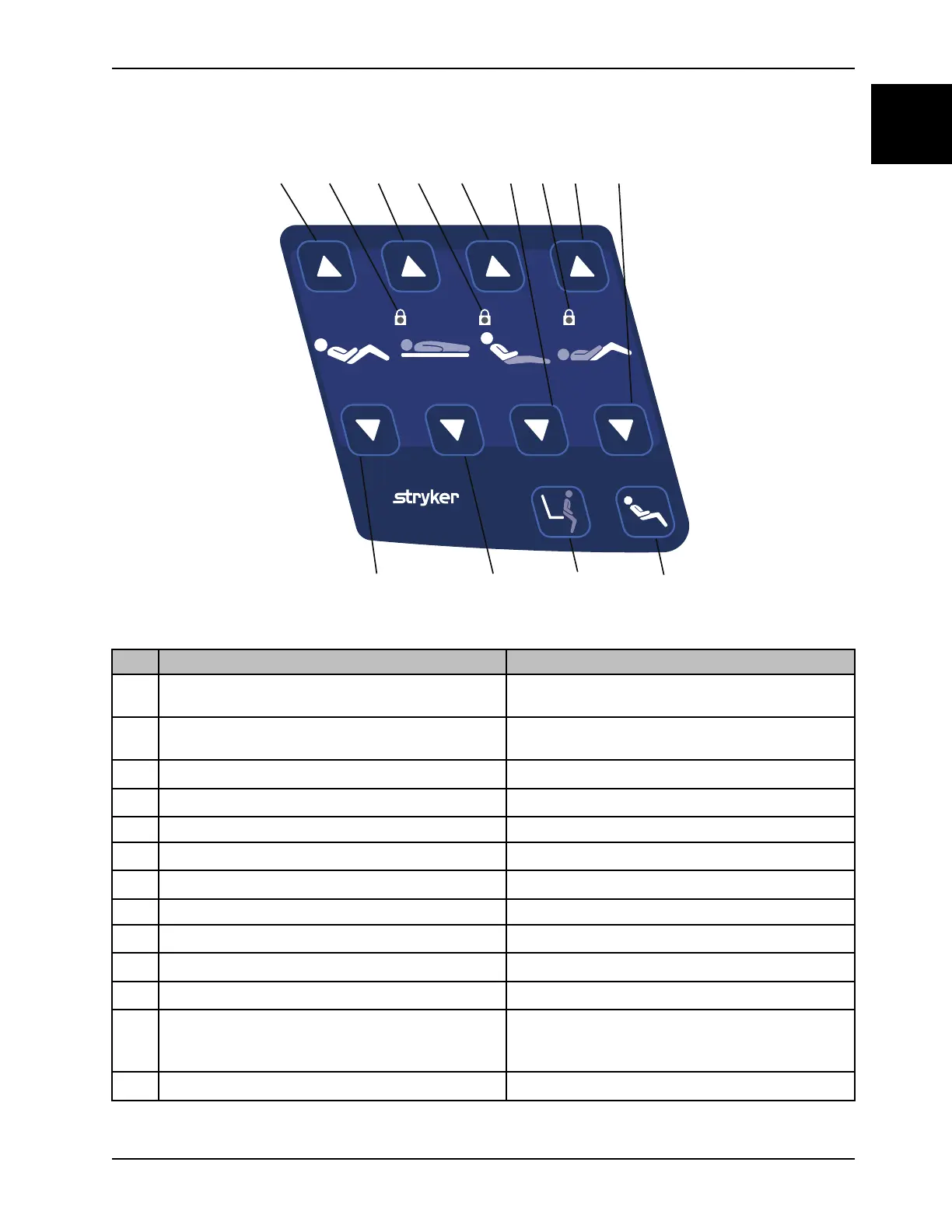

Patient control panel (inside siderail) (option) (Continued)
Name Function
A
Autocontour up
Raises the backrest and the upper leg section at the
same time
B
Autocontour down
Lowers the backrest and the upper leg section at the
same time
C
Litter lockout LED
Illuminates when you lock the litter section
D
Litter up
Raises the litter
E
Litter down Lowers the litter
F Backrest lockout LED
Illuminates when you lock the backrest section
G
Backrest up
Raises the backrest
H Backrest down Lowers the backrest
I
Upper leg lockout LED Illuminates when you lock the upper leg section
J
Upper leg up Raises the upper leg section
K
Upper leg down Lowers the upper leg section
L
Egress
Lowers the litter, lowers the upper leg section, and
raises the backrest so the patient can enter and exit
the product
M
Chair position Place the product into the chair position
