pg 30
Configuring EC-1 to Use MIDI (continued)
STEP 2 SET MIDI CHANNEL
TIME REC LEVEL MIX
TAPE AGE REPEATS MECHANICS
low high
med
hold (tap)
single head dTape echo

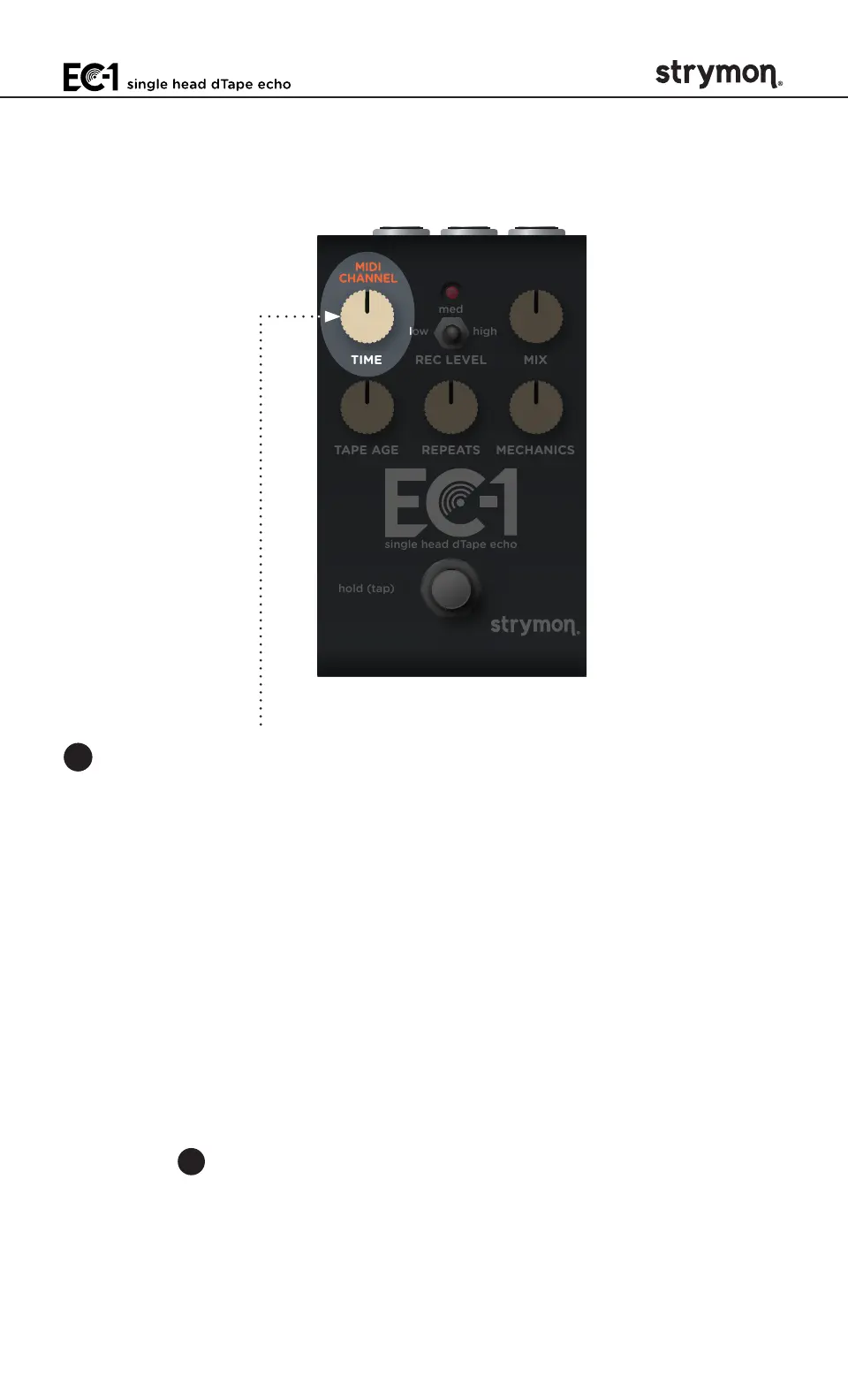

3 Turn the TIME (MIDI CHANNEL) knob to set the MIDI communication
channel� The LED indicates status� Your knob selections are as
follows:
• Channel 1: GREEN (default, minimum)
• Channel 2: AMBER (10 o’clock)
• Channel 3: RED (12 o’clock)
• Channel 4-16: BLUE (maximum) - set by next received MIDI
Program Change message, requires 1⁄4" MIDI connection
Once the LED turns BLUE, it will blink until the pedal receives a
MIDI Program Change message� Once a message is received, the
pedal will be set to the MIDI channel that carried the message
and exits the Power Up Mode to allow you to begin using EC-1� (If
you’ve successfully configured MIDI Channel 4-16, you can skip
item
4
on the next page�)
