Stuv 21 - Floor Protection; R Value

17
3
DIMENSIONSSTÛV 21
2x ½" cement boards are ALWAYS MANDATORY under the fireplace.
If a podium made of combustible materials is installed, it must be
protected by ½’’ cement boards on top and in front.
For the Stûv 21, there is no R Value to be considered when installing floor finishing
materials. All materials installed under and in front of the fireplace must be non
combustible to a height of 6 ½’’, see below for additional information.
1
2
3
Floor protection is MANDATORY. See adjoining section.
4
5
See section : 3.7 Hearth extension
All components located in the hearth extension zone, for a height of 6 ½’’ from
the bottom of the glass must be in non combustible materials.
.3 R VALUE
2
1
4
3
5
P
8"
8"
21-85
26 ½"
21-95
30 ⁄"
21-105
34 ¼"
21-125
42 ⁄"

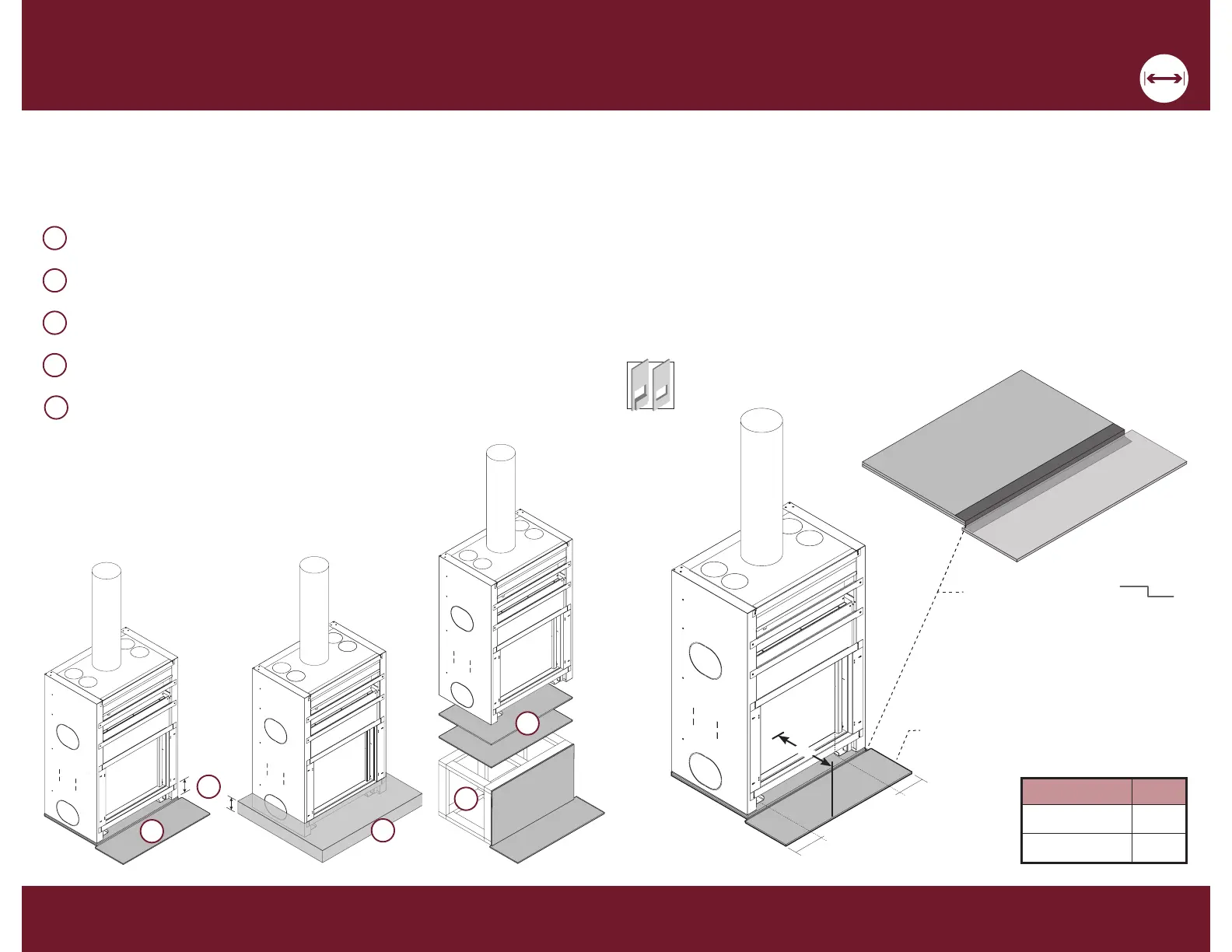

In order to be compliant with building codes floor protection is mandatory. The
surface of the floor in front of the unit must be protected by non combustible floor
protection (tile, plate, slab..) .
This protection must cover the width of the glass plus 8’’ on each side of the glass
(see table (P)) according regulations per Country.
A non combustible sealing strip must be placed through the whole length of
the junction between the cement board and the finished floor to avoid ember
projections.
Sealing strip
Floor protection
Glass
Cover to the top of the
2x
½
’’ cement boards...
...to underneath the
floor protection.
COUNTRY P
Canada 18"
United States 16"
.4 FLOOR PROTECTION
3
