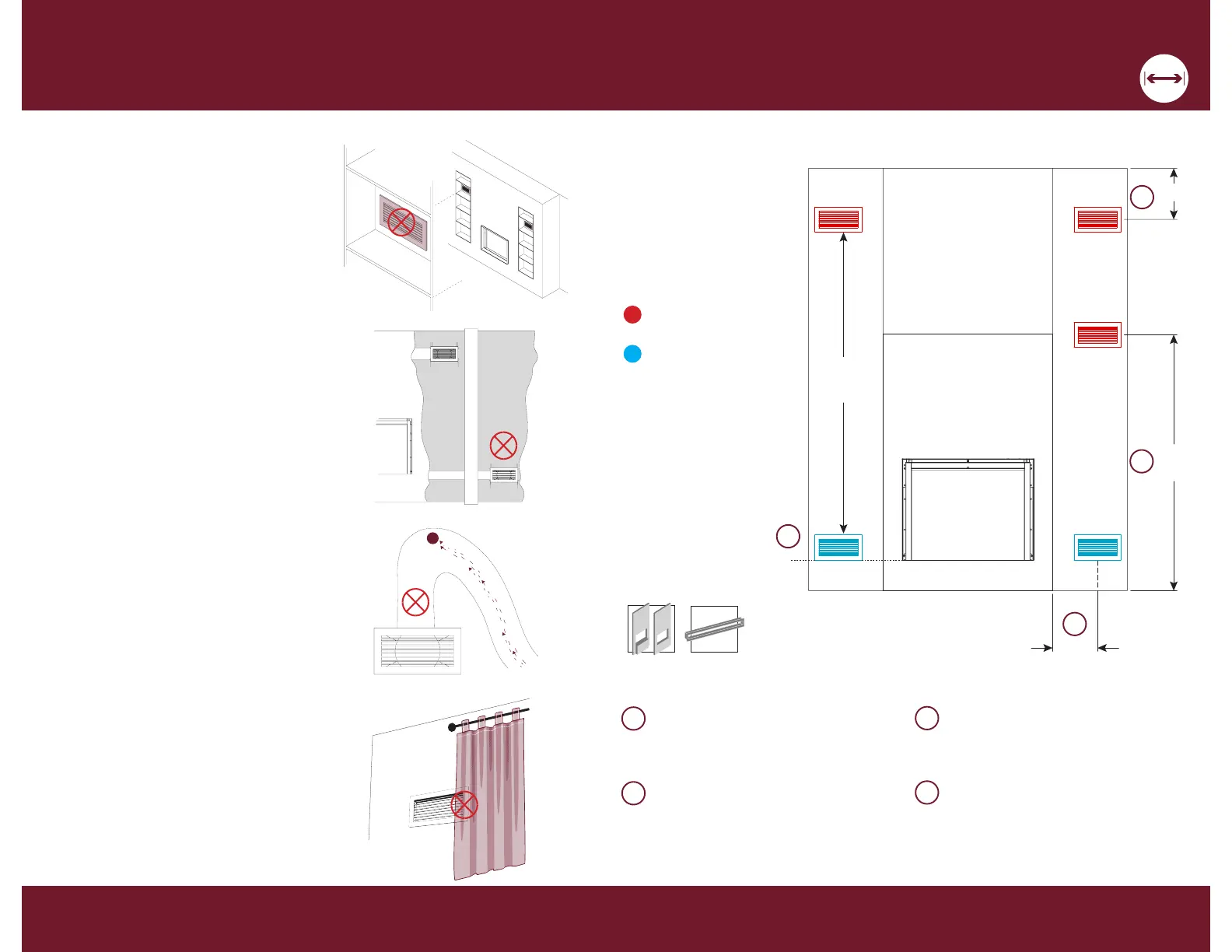

DIMENSIONSSTÛV 21
.7 AIR SUPPLY
It is essential to install two
room air intakes and two
hot air outlets in order to
have a natural, functional
and efficient convection.
10' Maximum horizontal distance
from the side of the fireplace in the
centre of the air grilles.
The room air inlet for convection
cannot be higher than the
bottom of the glass.
60" Minimum distance from the floor
to the centre of the hot air outlet.
12" Minimum distance from the ceiling
to the centre of the hot air outlet.
Room air intakes
Hot air outlets
1
4
2
3
Poor airflow in your convection system
should be avoided. Installing the hot
air outlet in an enclosed or restricted
space, such as a cabinet box or shelf, is
prohibited.
It is important that the airflow be
continuous. It is forbidden to take
fresh air from a closed room and
to discharge the same airflow
into another closed room.
The hot air duct must always be
installed horizontally or ascending as
hot air naturally goes up, never down.
It is forbidden to have a curtain or any
other object that can block the airflow
located less than 24" in front of the
hot air outlet, as air could get trapped
behind it creating a heat trap.
To ensure adequate
convection, air inlet and
outlet should be facing
the same direction in the
same room.
12" MIN.
60"
MIN.
10’
MAX.
1
4
2
3
H MAX.
