.5 COMPONENTS REPLACEMENT
DISASSEMBLY
DOOR SEAL
654
321
T20
PH2
ou

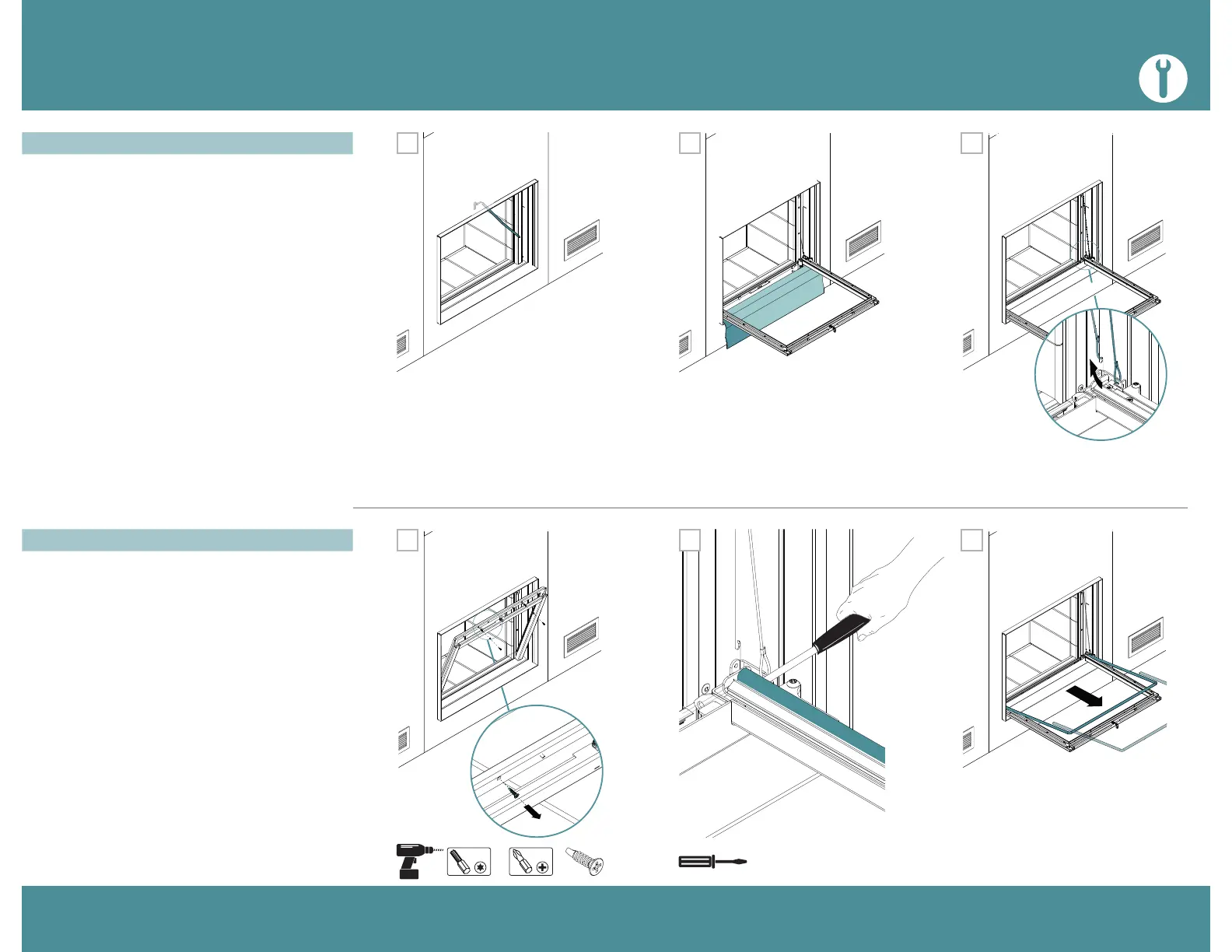

Step 1 Using the fireplace handle open
the glass door and tilt it open like an oven.
It is recommended to use some kind of
support on which the door will rest to
avoid damage.
Step 2 Use rags to make sure the paint is
protected
Step 3 Carefully unhook the counterweight
cables in both bottom corners and attach
them to the hooks made for this purpose
on each side of the unit.
Step 4 Tilt the door 20° up, lightly slide up
approx 2’’. Remove the two small Philips
head screws from the frame holding the
seal located at the center of the glass
frame.
Step 5 Using a flathead screwdriver pry
the hooks on the bottom of the seal to
release the rest of the seal/metal rod at
the bottom of the glass on the frame. You
will be able to lift the seal and rod out from
those hooks.
Step 6 Going from front to back remove
the seal from the frame, starting from the
extremities slide it off the underwire.
