INSTALLATIONSTÛV 21

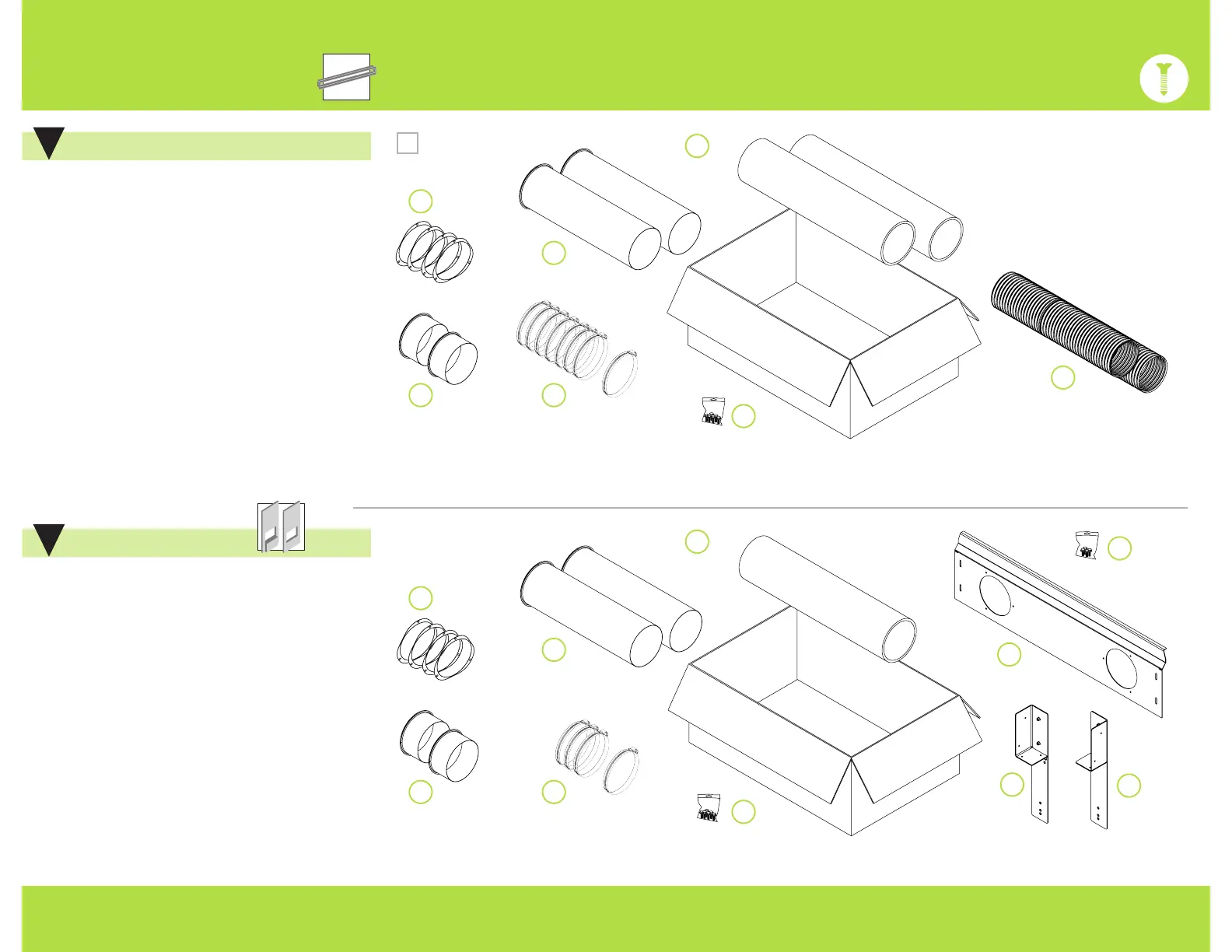

Step 23 Open the box containing the
convection kit:
CONTENT
1. 2x Aluminium insulated duct
2. 2x Aluminium non-insulated duct
3. 2x Flange Ø6’’ X 20’’
4. 2x Flange Ø6’’ X 3’’
5. 4x Maxclip
6. 8x Gear clamp
7. 12x Self-drilling screw
The installation of the linear grille is
explained in the annex.
.4 CONVECTION KIT
STANDARD INSTALLATION
!
SF5 SF6 FRONT PANEL
!
A special kit is provided with a SF5 SF6
front panel which requires different parts.
CONTENT
1. Aluminium insulated duct
2. 2x Flange Ø6’’ X 20’’
3. 2x Flange Ø6’’ X 3’’
4. 4x Maxclip
5. 4x Gear clamp
6. 12x Self-drilling screw
7. Anchor plate
8. Right support
9. Left support
10. 4x Self-drilling screw
The installation of the SF5 SF6 front panel
is explained in the appendix (9310400005).
1
x1
7
x12
2
x2
4
x4
3
x2
5
x4
2
x2
5
x4
4
x2
6
x8
3
x2
1
x2
6
x12
8
9
7
10
x4
23
