.7 WALL INSERTION

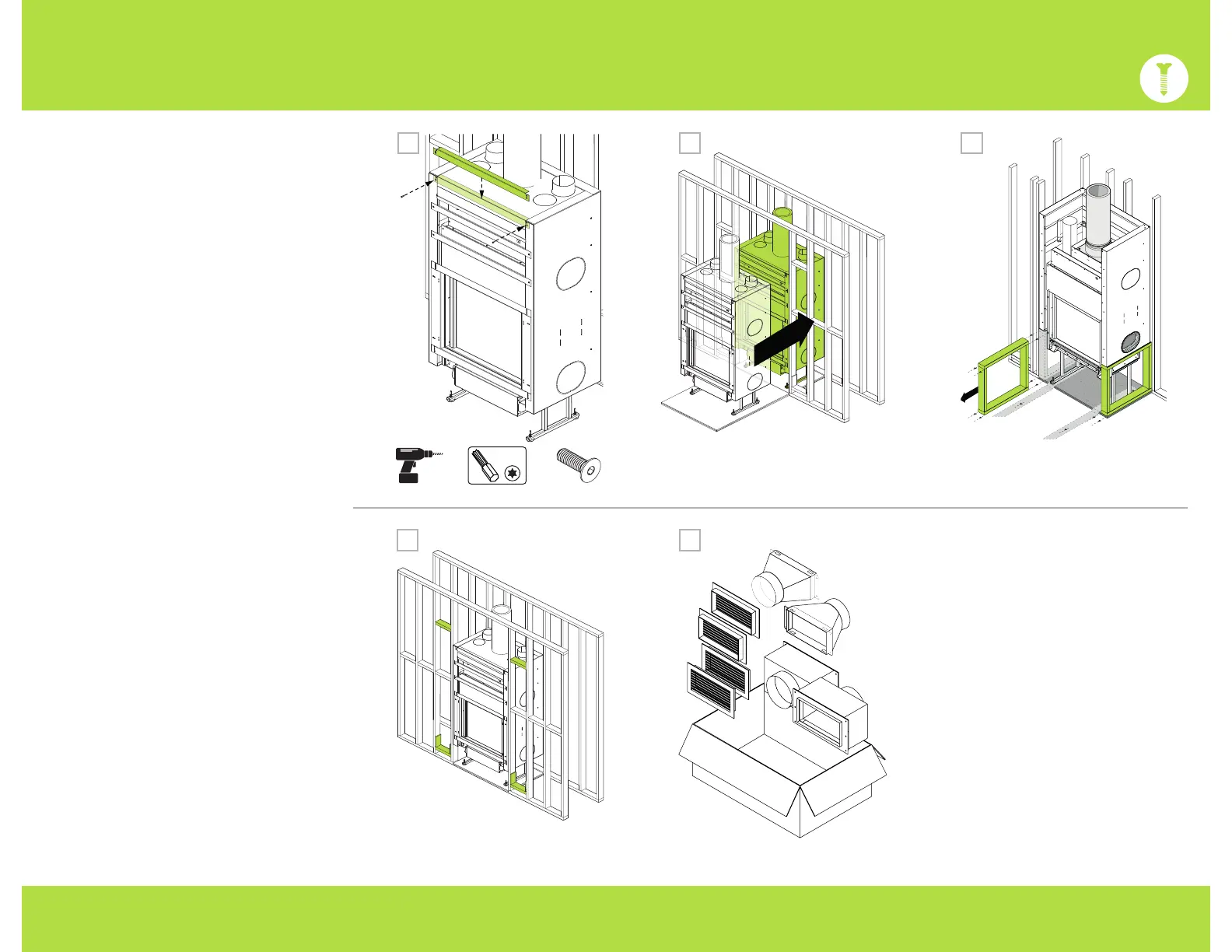

Step 53 Screw back the highest finishing
trim over the wool.
Step 54 Gently push the fireplace to its
final position.
Step 55 If you used wood structures to
hold the insulated shell, remove them.
Step 56 Position the blockers so that the
grille boxes can be installed according
to the clearance instructions in the AIR
SUPPLY section.
The framing around the hot air output
grilles must be non-combustible and
adapted for the installation of the 4"
cement board contour.
Step 57 Open the box with the
components for the convection and
separate hot and cold air components to
make installation easier.
