18
3
DIMENSIONSSTÛV 21
NOTE
Installing two ½" cement board
under the unit is mandatory. If
a combustible framing is built, it
must be strong enough to support
the weight of the fireplace and
cement board must be installed
over it.
!
NOTE
Framing is not always perfectly level. We
suggest that at least /'' clearance be
added to the dimensions listed in the table.
!
MODEL A B C**
21-85 SF 40" 25 ⁄" 59 ⁄"
21-95 SF 43 ⁄" 27 ¾" 63 ½"
21-105 SF 47 ⁄" 24 ¼" 56 ⁄"
21-125 SF 55 ¾" 26 ¾" 59 ⁄"
21-85 DF 40" 29 ¾" 59 ⁄"
21-95 DF 43 ⁄" 29 ¾" 63 ½"
21-125 DF 55 ¾" 29 ¾" 59 ⁄"

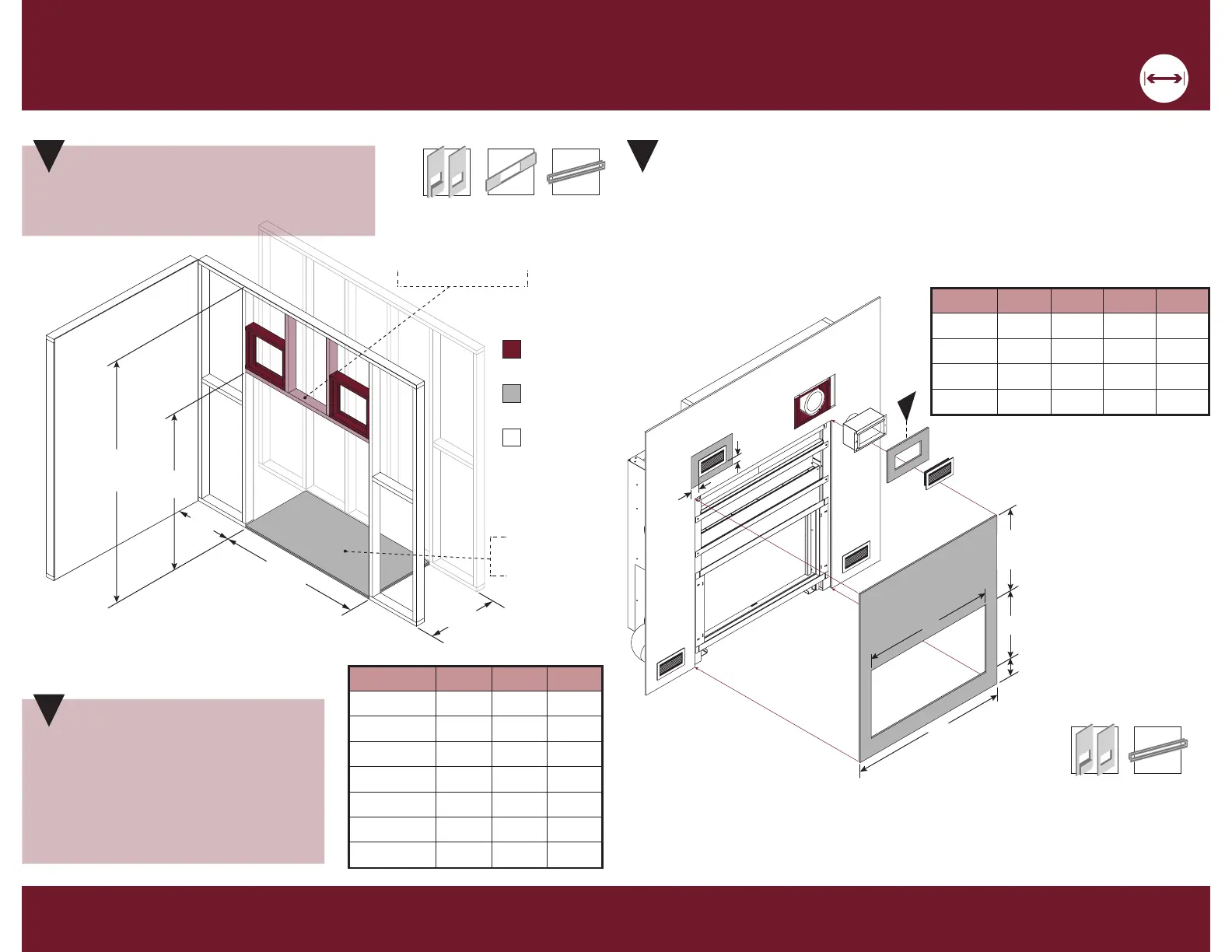

.5 FRAMEWORK CHARACTERISTICS .6 NON-COMBUSTIBLE MATERIAL
3
The dimensions given above will vary if a front panel or a Stûv frame is used.
For wall finishing without a front panel see the last page of the INSTALLATION
section. For frames and front panels, refer to the specific appendix or contact
customer service for more details.
MODEL
D E F G
21-85 36 ¾" 28 ¾" 31" 23 ¾"
21-95 40 ⁄" 30" 34 ⁄" 27"
21-105 44 ⁄" 31 ⁄" 38 ¾" 18 ½"
21-125 52 ½" 28 ¾" 46 ½" 23 ¾"
** This value varies according to the
height of the adjustable stand.
6 ½"
min.*
F
G
E
min.
D min.
4"
4"
!
IMPORTANT
Use a ½" cement board to finish the hearth opening after the fireplace installation.
Other non-combustible materials may be used. The framing and the wall finishing
around the hot air grille boxes are required to be in non-combustible materials. It is
mandatory to affix 4" of cement board around the hot air grille.
!
C**
78"
min.*
A
min.
B
min.
17’’
non-combustible
cement board
combustible
* From the bottom of the unit
Without the adjustable stand
2 x cement
board ½''
non-combustible
framing
To be installed
after the fireplace
