Stuv 21 - Example Installation; Installation Example; Risk Area

23
3
DIMENSIONSSTÛV 21
16 ¾" (Canada)
14 ¾" (USA)
The radiation from the glass is significant. Any combustible object must be placed
at a minimum distance of 48’’ by 90° from the face of the glass to avoid any fire risk.
CAUTION - FIRE HAZARD
To avoid major damage, no combustible material should be placed in front
of a hot air outlet. In addition, blocking it may cause the unit to overheat and,
in some cases, lead to a fire.
Be sure to follow the above recommendations to avoid heat traps or other
major damage risks.
!

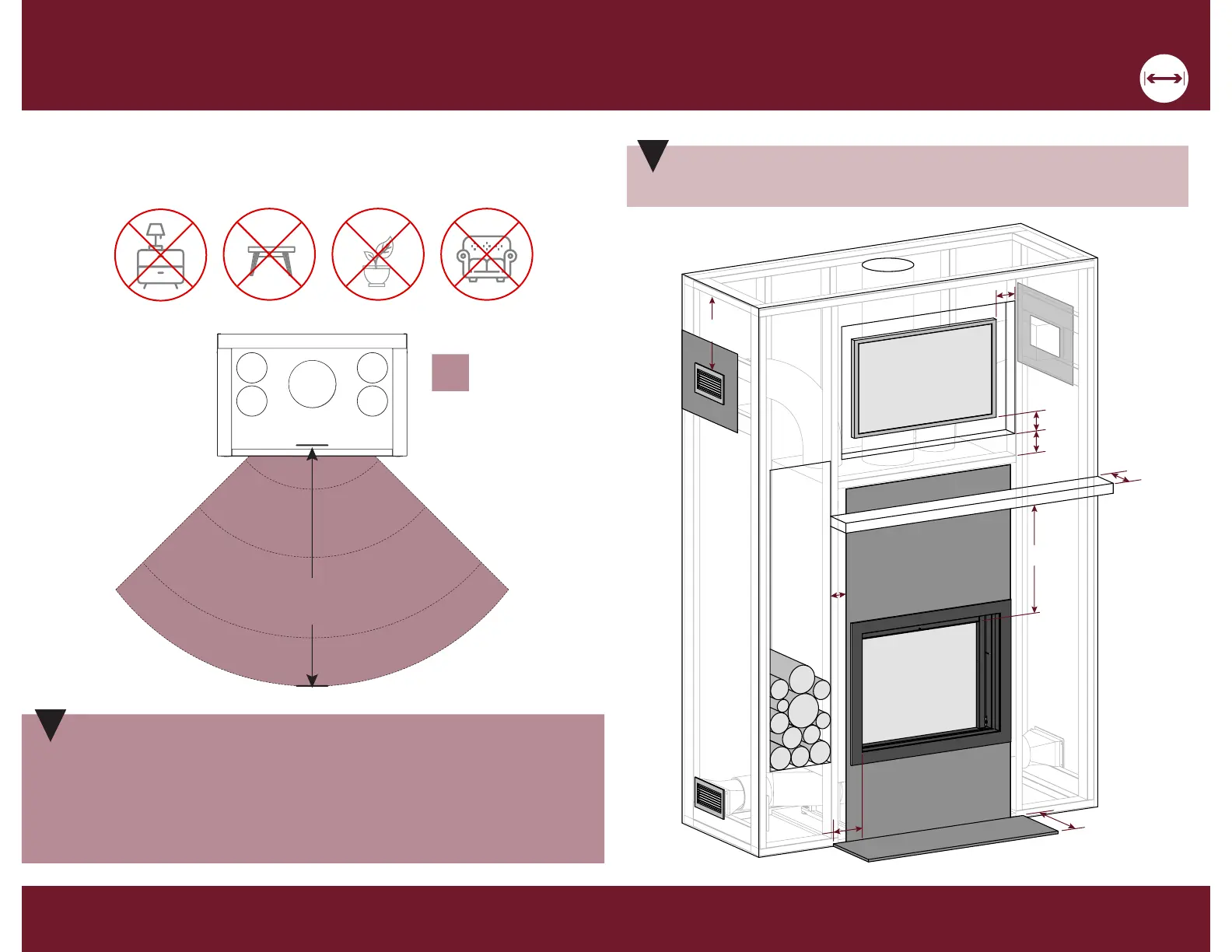

.12 RISK AREA
45° 45°
Risk area
.13 INSTALLATION EXAMPLE
3
4"
4"
4"
12"
6"
21 ⁄"
non combustible
com
bustible shelf
cement board
combustible stud
combustible stud
fitted
television
television niche
stûv 21
2"
log
storage
ATTENTION
This is an example. All sections must be read and followed.
!
8"
48”
