DIMENSIONSSTÛV 21
A
B
C
D
MODEL A B C D
21-85 SF 40" 92 ¼" 26 ⁄" 65 ¼"
21-95 SF 43 ⁄" 100 ⁄" 28 ¼" 71"
21-105 SF 47 ⁄" 97 ⁄" 24 ⁄" 68 ¾"
21-125 SF 55 ¾" 110 ¼" 27 ¼" 78"

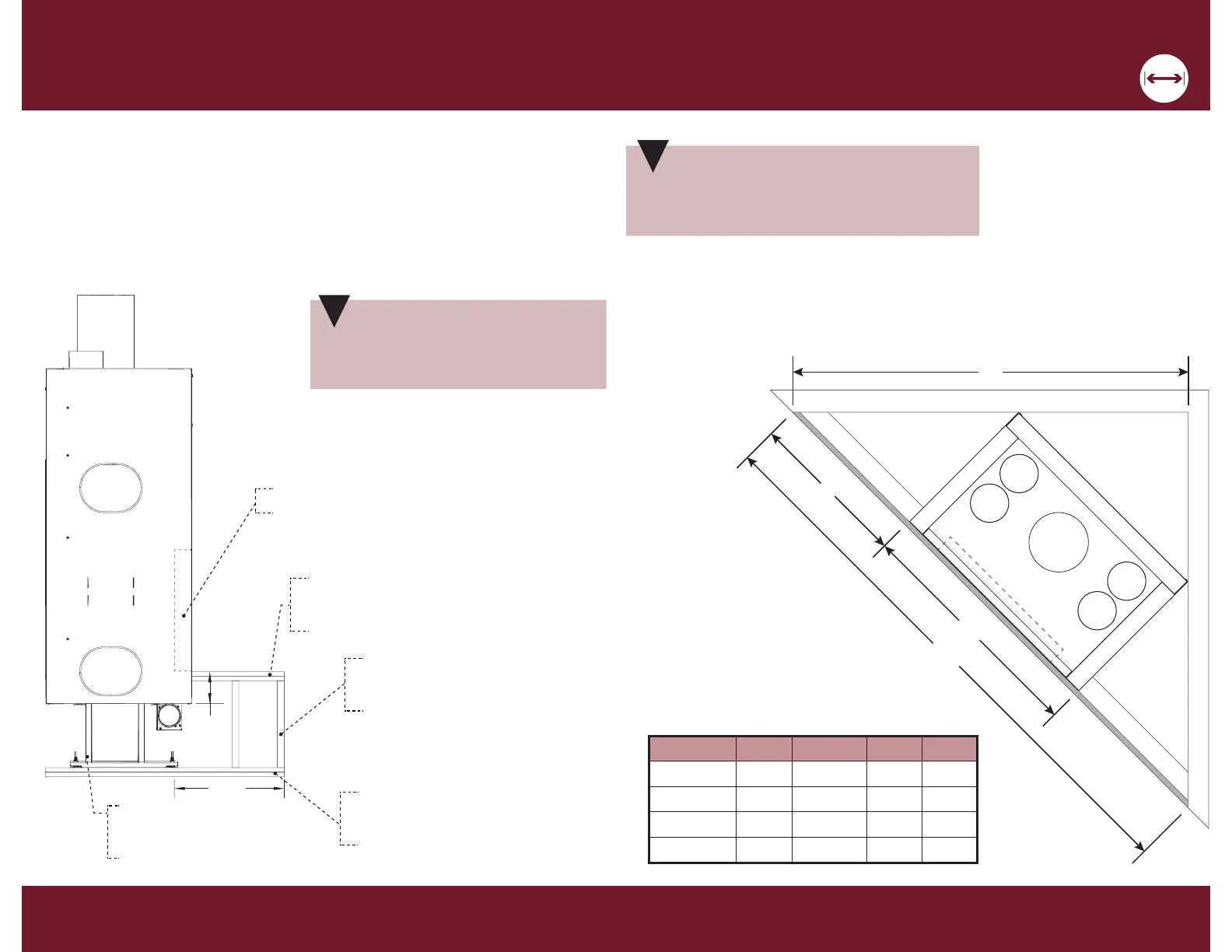

It is possible to Install the Stûv 21 in a corner. The dimensions listed
below must be followed to build the framing.
All previous specifications are also required for this type of installation.
NOTE
Framing is not always perfectly level. We
suggest that at least /'' clearance be
added to the dimensions listed in the table.
!
Non combustible
Floor finishing
Non combustible
metal studs
2x cement
boards ½"
6 ½"
min.
Glass
Adjustable
stand
For an installation aligning the bottom of the glass and the floor, all components
must be made of non-combustible material up to a height of 6 ½’’ (until below
the unit). The thickness of all floor components must be known to ensure perfect
alignment of the floor and glass.
The adjustable stand and the two layers of cement board panel under the fireplace
are mandatory for this type of installation.
NOTE
Two layers of cement board are
also mandatory under the fireplace
for this type of installation.
!
