32
4
INSTALLATIONSTÛV 21

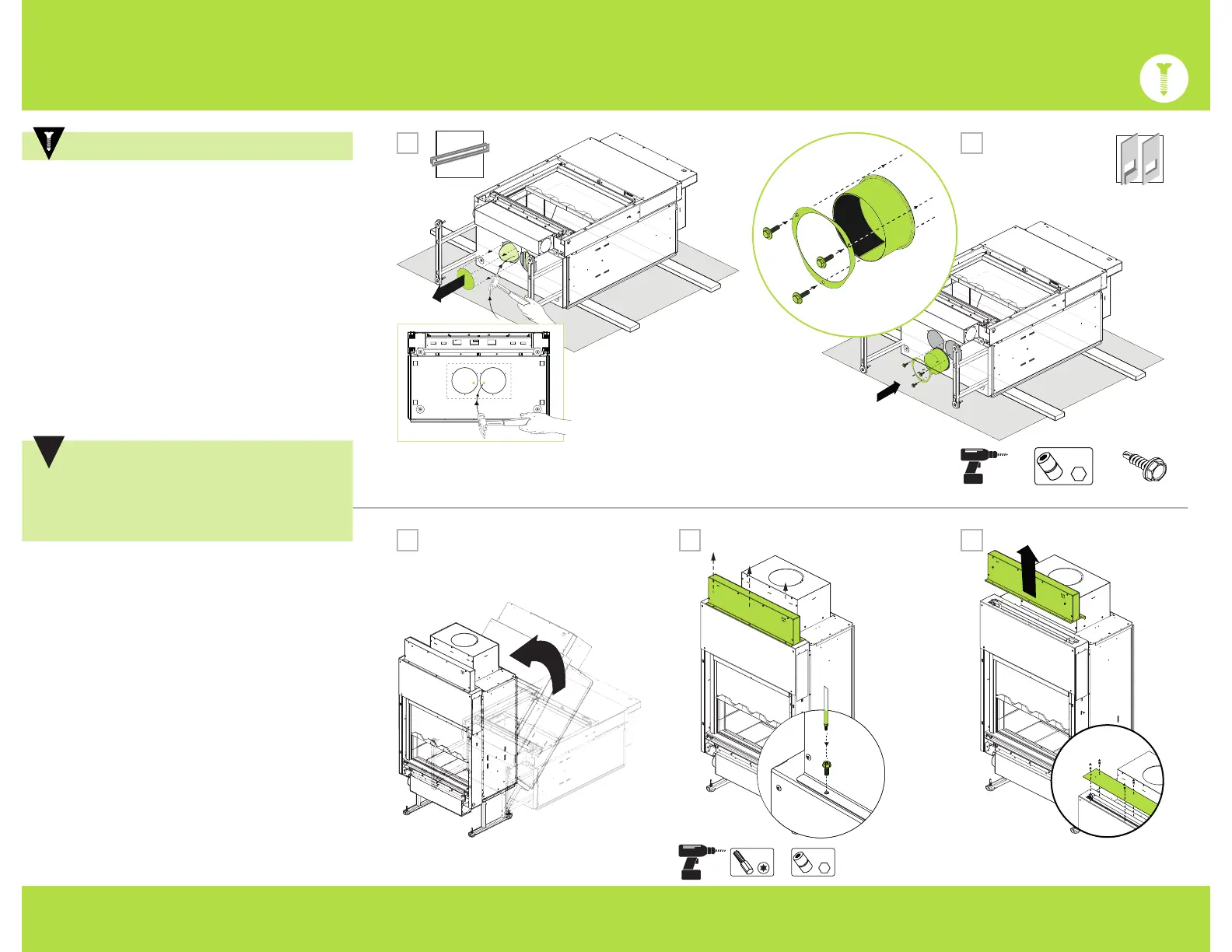

.5 GLASS CAVITY AND PULLEYS
Step 26 Raise the fireplace to a vertical
position on the adjustable stands.
Step 27 Using a 10 mm socket or Torx
T30 bit, remove the screws that secure the
glass cavity.
Step 28 Temporarily remove the glass
cavity OR on some models, remove the
stop plate attached to the fireplace.
If connection under the fireplace is not
possible, skip the next two steps.
See page 35 for lateral convection air
instructions.
Step 24 Use a hammer to remove the
pre-cut circles under the fireplace. We
recommend that you hit close to the
centre for easier removal.
Step 25 Attach the Ø6'' x 3'' short flange
using the maxclip and self-drilling hex
head screws provided.
BOTTOM CONVECTION AIR
!
NOTE
To avoid damage to the airtight box,
no pressure should be put on it when
the fireplace is raised.
!
x6
OR
2726
2524
28
10mm
T30
10mm
ou
