INSTALLATIONSTÛV 21

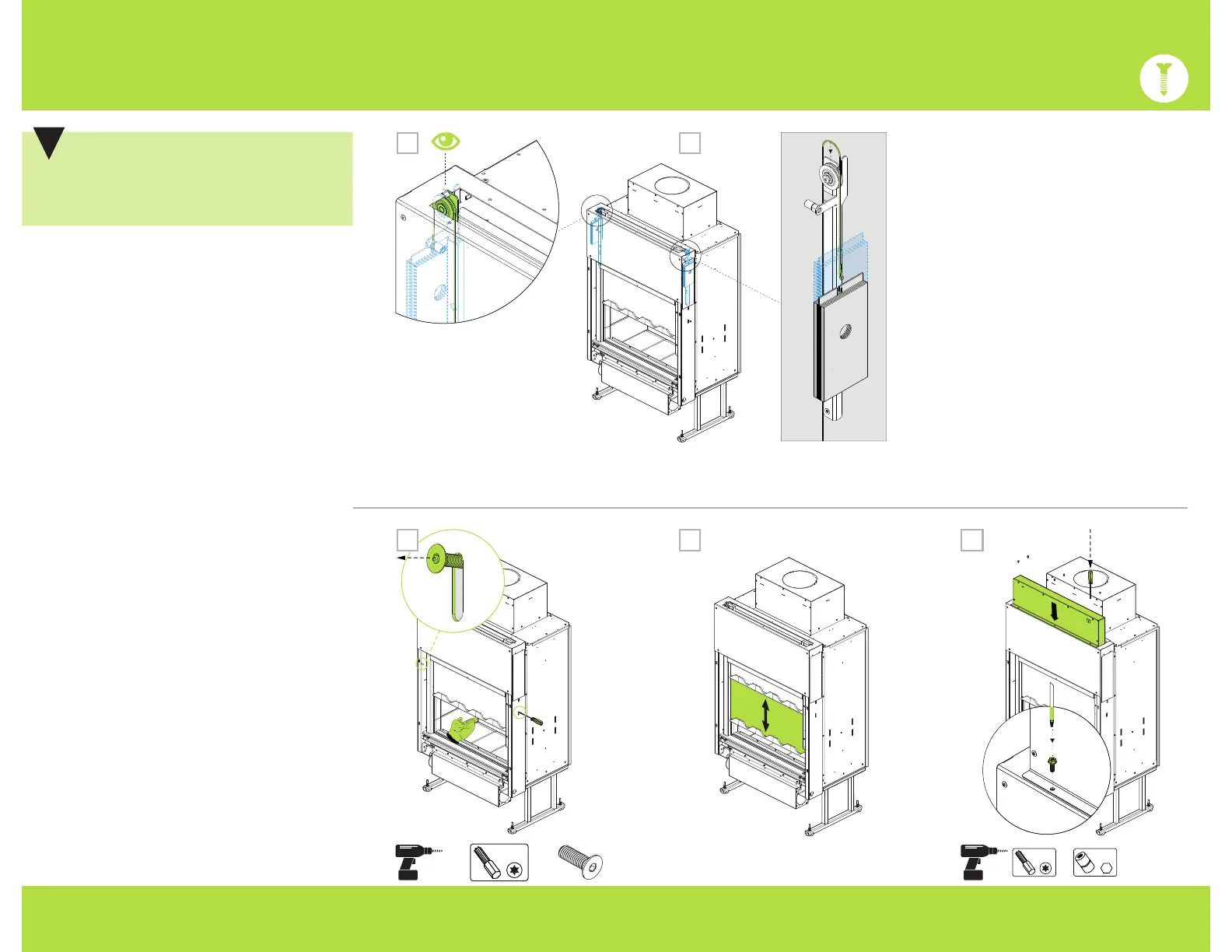

.5 GLASS CAVITY AND PULLEYS
Step 29 Visually inspect the pulley cable
to validate it is resting onto the recess of
the pulley on both sides (left/right) of the
fireplace. This ensures ease of movement
of the glass.
Step 30 If it is displaced, replace it onto
the recess of the pulley.
Step 31 Hold the door.
Remove the 2 screws holding the glass on
each side before opening the door.
Step 32 Slide the glass up and down to
make sure it is working properly. In case
of problems, refer to the illustration above
to replace the pulley cable back into it’s
place.
Step 33 Put the lifter OR the stop
plate back in place using the previously
removed M6 screws.
38
x2
3231
29
33
T25
T30
10mm
ou
30
NOTE
This step will be hard to complete after
inserting the fireplace into the wall.
Make sure the cable is well placed now.
!
