DIMENSIONSSTÛV 21

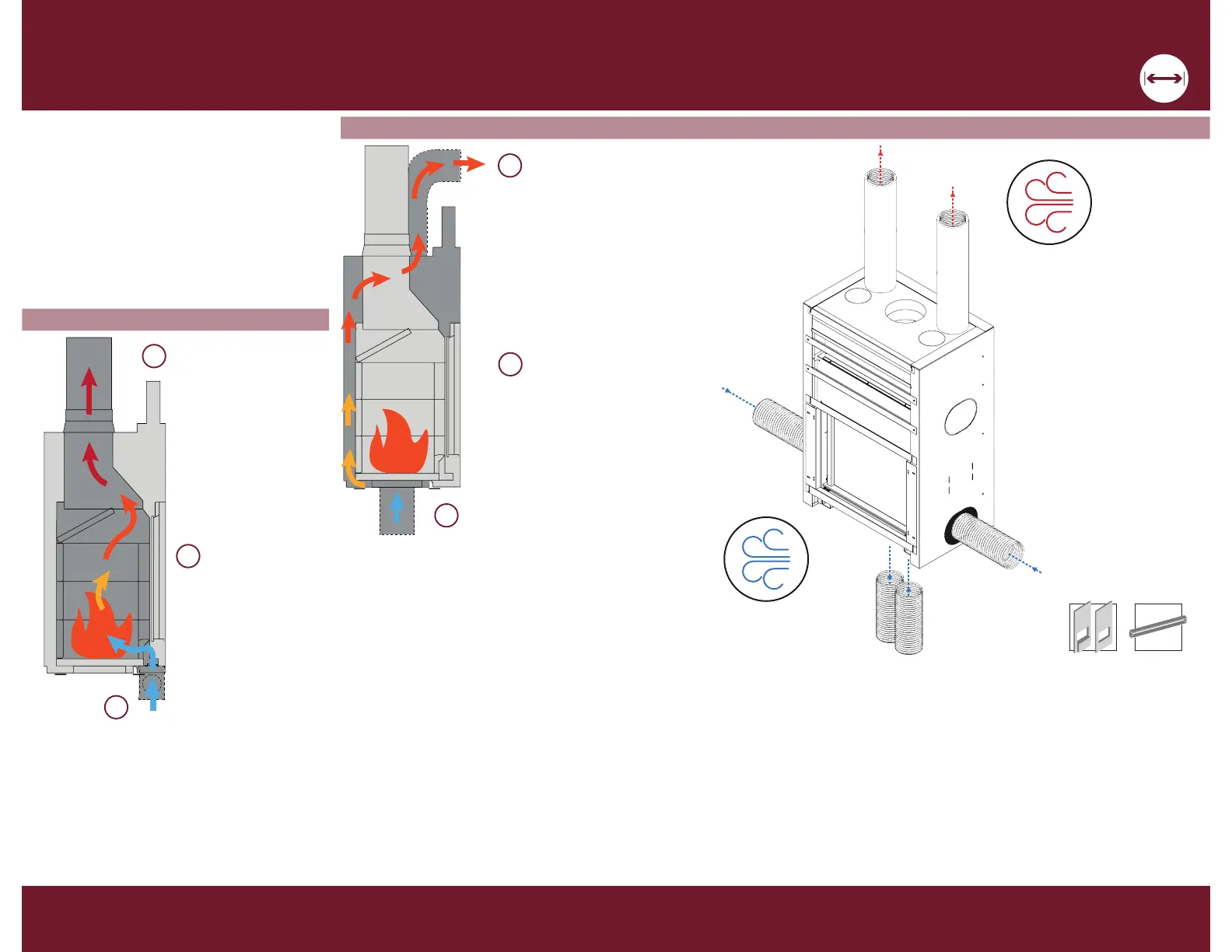

.7 AIR SUPPLY
Combustion air intake
Outside air via the airtight box is
recommended for a better draft.
Convection air inlet
The majority of fireplace
installations use the air intake
from underneath the unit.
Supplying air to the fire
An outside air supply
contributes to the
strength and beauty
of the flames.
Hot air outlet
Heating efficiency
is determined by
the convection air.
The air gets warmer
The air passes near the
combustion chamber
and warms up.
Flue outlet
Constant air eva-
cuation prevents
back drafts
COMBUSTION AIR
1
2
2
1
3
3
Before starting the installation, it is important to choose the air inlets and outlets
that will be used for the convection system.
A minimum of two intakes and outlets must be connected. Air inlets are located in
the lower part of the fireplace. Favor the connection under the fireplace. In the case
of a low installation, the bottom pre-cuttings on the sides can be used. For the hot
air output we recommend using the top back outlets.
For all questions concerning a non-standard installation,
contact Stûv America customer service.
x2
x2
CONVECTION AIR
The fireplace is supplied with two types of
air: convection air and combustion air.
