INSTALLATIONSTÛV 21

.10 BAFFLES AND VERMICULITES

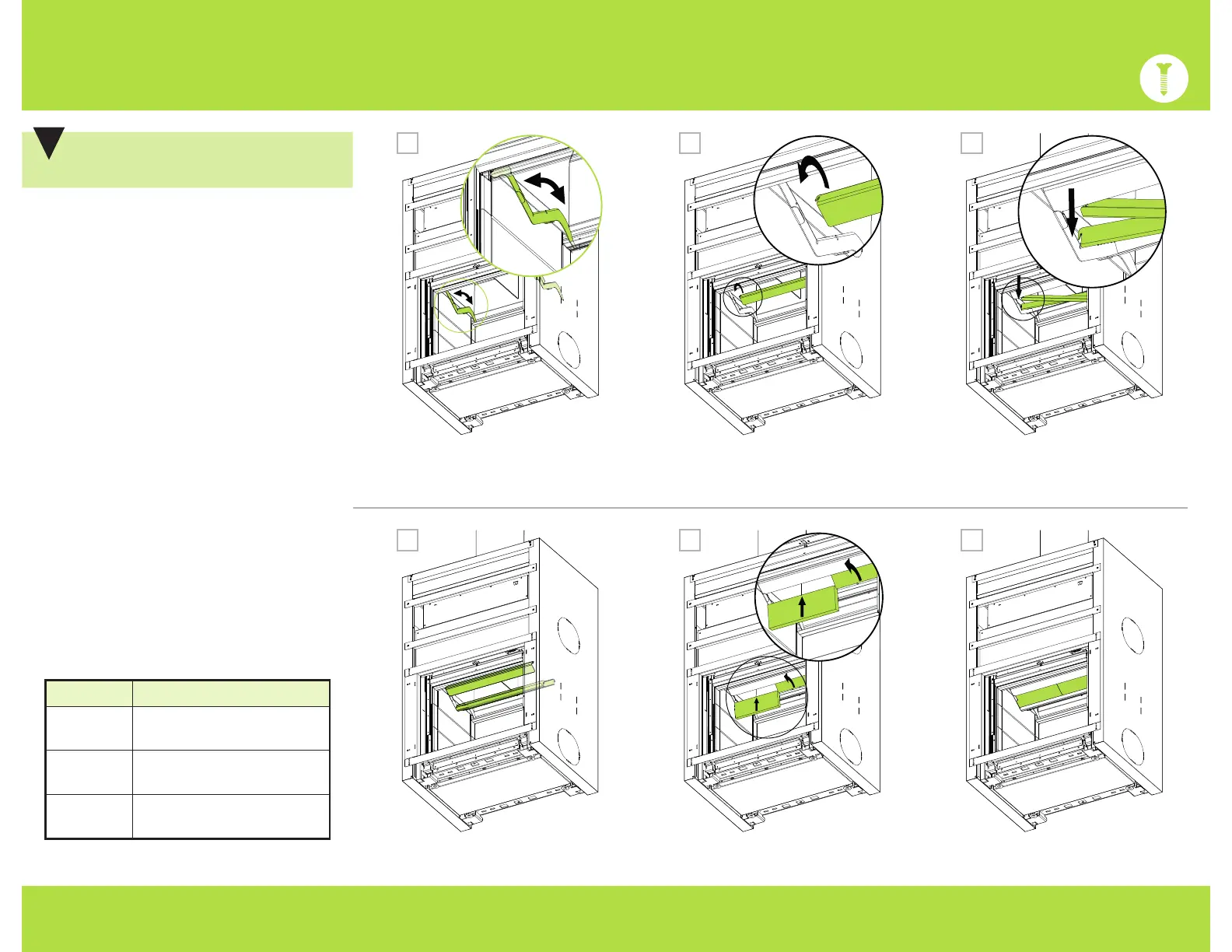

Step 79 Enter the two pointy ends of the

bafﬂe support into the notches located on

the inside of the ﬁreplace near the doors.

The small lip must be torwards the inside

of the ﬁreplace. Repeat for the opposite

side.

Step 80 Place the two crosspieces onto

the bafﬂe supports and insert the hooks

into the notch on the bafﬂe support.

Step 81 The edges of the crosspieces

should be facing towards the glass doors.

Step 82 These crosspieces will be used to

install the vermiculites. Make sure they are

ﬁrmly secured into the notches.

Step 83 One at a time, place the

vermiculites between the edges of the

crosspieces so they sit on them.

Step 84 Place all vermiculites. If there are

three vermiculites, ﬁnish with the centre

one.

NOTE

For DF models only.

848382

818079

MODEL VERMICULITES

21-85 DF

PW5010203000 x4

(315mm X 105mm)

21-95 DF

PW5010203200 x4

(366mm X 166mm)

21-125 DF

PW5010202200 x6

(345mm X 112mm)
