STYPE Follower 2.0 - Main Server Overview; Main Server Specifications; Main Server Ports; Power Supply Characteristics

© 2022 STYPE; ALL RIGHTS RESERVED.
08
Turning off the Follower - Although the device is designed to work 24/7 it is advisable to power it
down overnight when not in use to maximize service life.
VGA
HDMI
DVI
IPMI
PWR 1 PWR 2
SYNCLTC
INT LAN
EXT LAN
USB

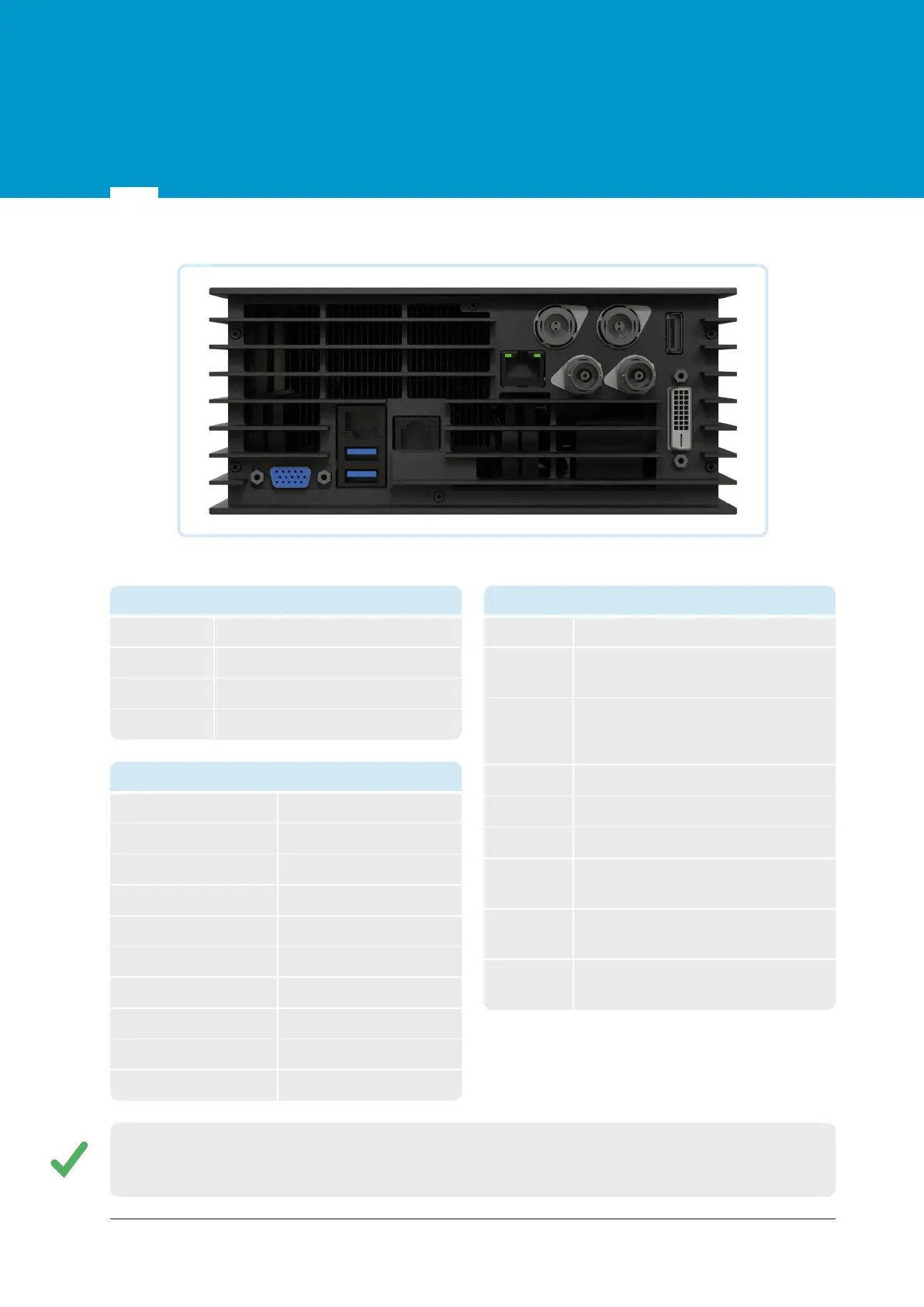

Figure 3.1 Follower Main Server ports
Dimensions 225.2 x 90.0 x 43.8 mm
Type
Voltage Topology
Voltage Input (Min)
Voltage Input (Max)
Constant voltage
AC / DC Converter
90 VAC
305 VAC
Voltage Output (Max) 26 ~ 32 V
Current Output (Max) 10.7 A
Power 321 W
Voltage Isolation 3.75 kV
Op. Temperature 40 °C ~ 90 °C
POWER SUPPLY CHARACTERISTIC
MAIN SERVER SPECIFICATION
Weight
Data delay
Power
2.2 kg
22.6 x 22.5 x 8.5 cm
5 ms (0.25 frames on 50 fps)
LEMO connector via power supply
Dimensions
MAIN SERVER PORTS
BNC connection socket for
connecting linear timecode.
RJ45 ethernet port for tracking data
output. UDP over IP.
RJ45 ethernet port to connect Main
Server with POE switch.
Intelligent Platform Management
Interface.
PWR 1/2 Power supply socket.
HDMI Connection socket for HDMI displays.
VGA/DVI Connection sockets for displays.
BNC connection socket for
connecting BlackBurst or tri level
Genlock signal.
SYNC
USB 3.0 connectors.
USB 1/2
LTC
EXT LAN
INT LAN
IPMI
02 GET FAMILIAR
WITH THE MAIN SERVER
