STYPE Follower 2.0 - Connectivity Diagram

© 2022 STYPE; ALL RIGHTS RESERVED.
15

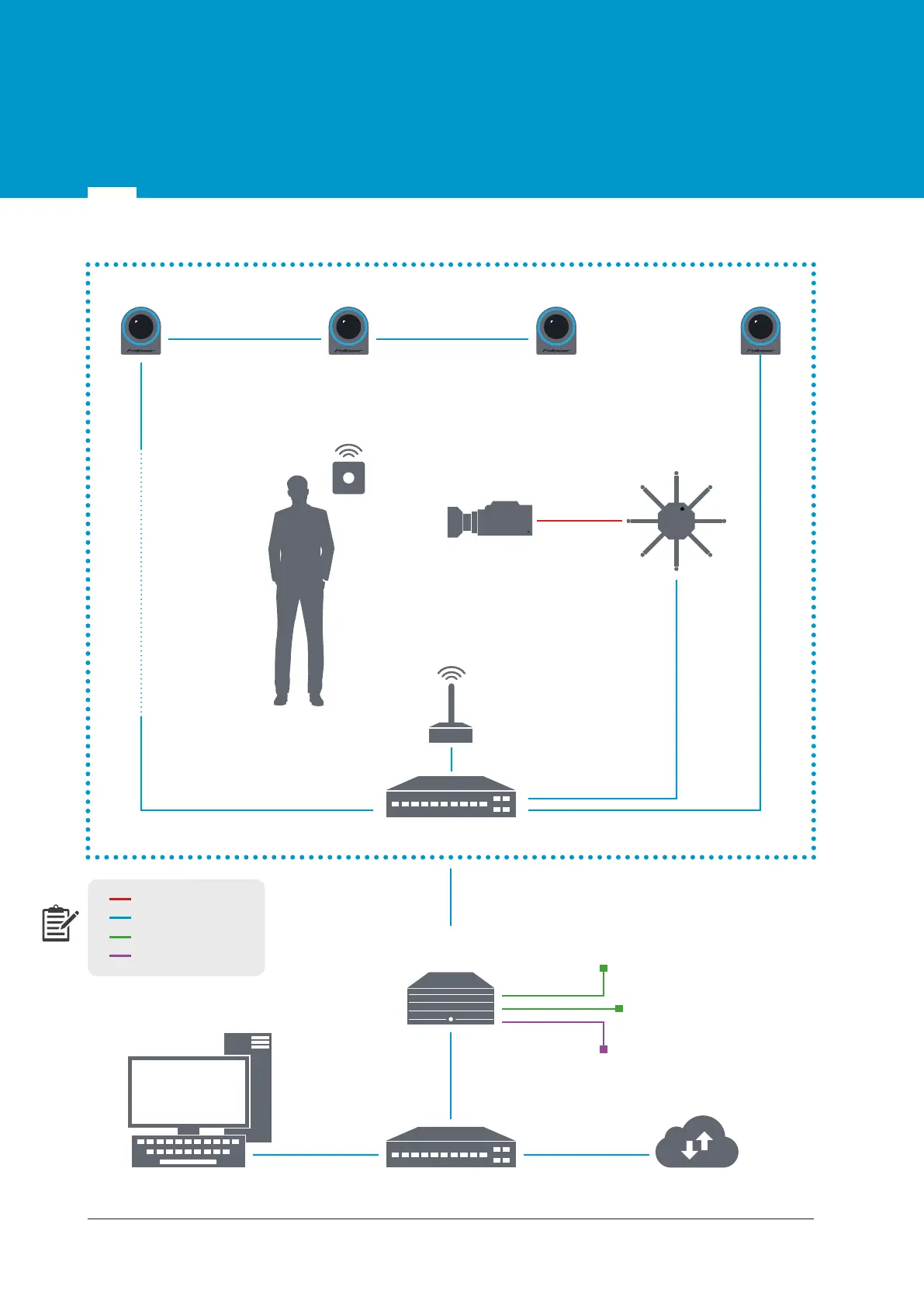

06 CONNECTIVITY DIAGRAM
RADIO TRANSMITTER
REQUIRED FOR RF BEACONS ONLY
POE SWITCH 802.3 AT/BT
FOLLOWER
MAIN SERVER
INTERNET (OPTIONAL)CLIENT NETWORKRENDER ENGINE
GENLCOK
(BLACKBURST OR TRILEVEL)
TIMECODE
(LTC, BNC INPUT)
POWER
(110/220V), 400W MAX)
STUDIO CAMERA
SPYDER MODULE
MINI BEACON
FOLLOWER CAMERA
ACTOR
DAISY CHAIN DAISY CHAIN
LENS CABLE
DAISY CHAIN; UP TO 3 CAMERAS ON POE+ LINE
LENS CABLE
CAT6 OR HIGHER
BNC CABLE
POWER CABLE
