7.2 Daisy chain
GREEN ethernet cable CAT6 connects POE switch with the INPUT port (BLUE rectangle in Figure
3.4) on the first Follower witness camera. Cable continues from the OUTPUT port (RED rectangle in
Figure 3.4) of the main witness camera to the INPUT of the next camera and so on.

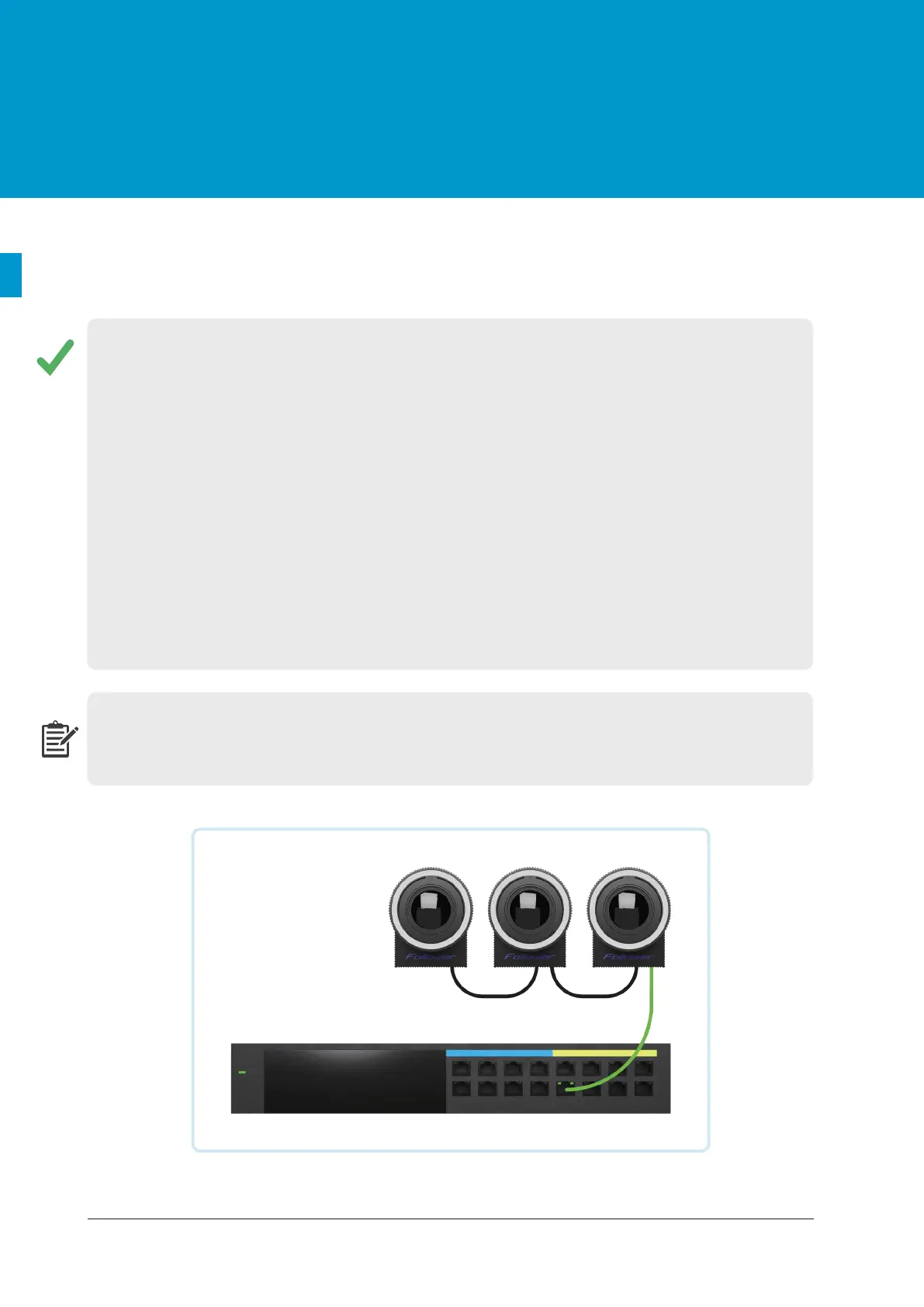

Figure 7.2 Follower witness camera Daisy chain connection
POE SWITCH
It is possible to connect up to eight Follower witness cameras in a chain where the first witness
camera is connected directly to the switch and the others are connected in a chain.
Follower 2.0 daisy chain possibilities:
• Cameras with Part Number W300 - W399: up to 3 per chain
• Cameras with Part Number W400 or higher: up to 6 per chain if 60W port on the provided
Netgear switch in legacy/non standard mode is used.
• Cameras with Part number W400 or higher: up to 3 per chain if 60W port on the provided
Netgear switch in standard mode is used or 30W port is used.
• Cameras with Part Number W400 or higher: up to 8 per chain if MainServer POE port is used*,
and only if 450W power supply, or dual 320W power supplies are used.
• Radio transmitter or Spyder can be attached as a last device in chain in all configurations
-----------------------------------------------------------------------------------------------------------------------------------
*MS with PN MS138 and higher
