Spyder was designed for the purpose of tracking cameras using Follower technology. It consists of several
LED beacons mounted directly to the camera so it can track the camera’s 3D position and orientation. Lens
data (zoom and focus levels) are tracked by internal or external lens encoders.
PWR - Power supply sockets.
EXT LAN - RJ45 ethernet port for data output.
PIPE - LED pipe sockets
LENS - 6 pin LEMO connector for connecting
internal or external encoders.

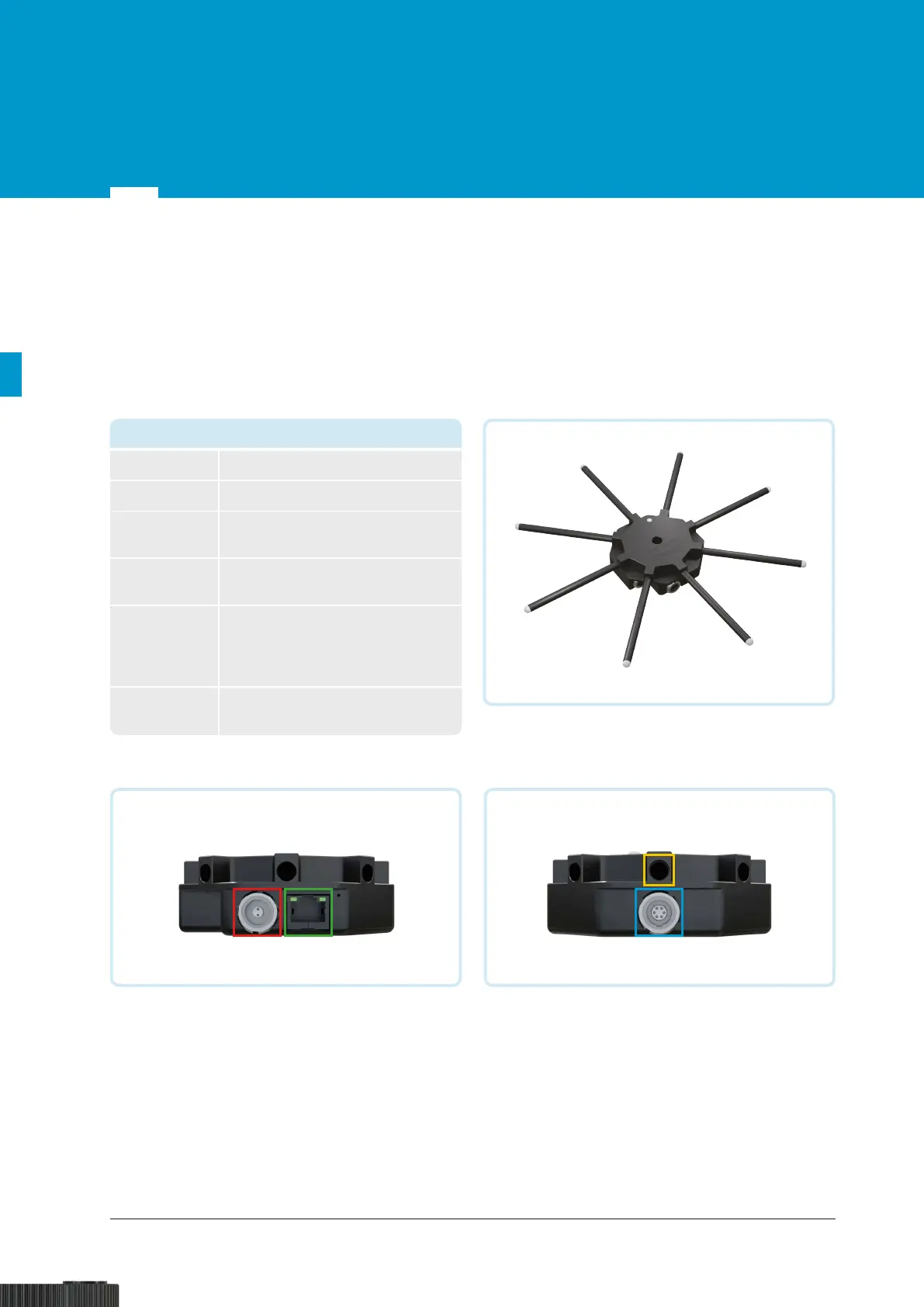

Figure 5.2 Spyder module ports (PWR and EXT LAN) Figure 5.3 Spyder module ports (PIPE and LENS)
PWR EXT LAN
LENS
PIPE
PWR EXT LAN
05 GET FAMILIAR WITH
THE SPYDER MODULE
5.1 Spyder module specification
Figure 5.1 Spyder module
SPYDER MODUL SPECIFICATION
Weight 0.201 kg
Power
6-36 V and 3 W via:
External power suply
or POE splitter
or Studio camera (XLR output).
Φ 9 cmDimensions
5 W
Power
consumption
8 or 9
Number of
LEDs
15 cm, 20 cm, 25 cm
LED pipes
lenght
