9.4.5.4 Operation principle
M17087-3 v8
The function block Local remote (LOCREM) handles the signals coming from the
local/remote switch. The connections are seen in Figure
125, where the inputs on
function block LOCREM are connected to binary inputs if an external switch is
used. When the local HMI is used, the inputs are not used. The switching between
external and local HMI source is done through the parameter ControlMode. The
outputs from the LOCREM function block control the output PSTO (Permitted
Source To Operate) on Bay control (QCBAY).
QCBAY
LR_ OFF
LR_ LOC
LR_ REM
LR_ VALID
BL_ UPD
BL_ CMD
PSTO
UPD_ BLKD
CMD_ BLKD
LOCREM
CTRLOFF
LOCCTRL
REMCTRL
LHMICTRL
OFF
LOCAL
REMOTE
VALID
LOCREMCTRL
PSTO1
PSTO2
PSTO3
PSTO4
PSTO5
PSTO6
PSTO7
PSTO8
PSTO9
PSTO 10
PSTO 11
PSTO 12
HMICTR1
HMICTR2
HMICTR3
HMICTR4
HMICTR5
HMICTR6
HMICTR7
HMICTR8
HMICTR9
HMICTR 10
HMICTR 11
HMICTR 12
QCBAY
LR_ OFF
LR_ LOC
LR_ REM
LR_ VALID
BL_ UPD
BL_ CMD
PSTO
UPD_ BLKD
CMD_ BLKD
LOCREM
CTRLOFF
LOCCTRL
REMCTRL
LHMICTRL
OFF
LOCAL
REMOTE
VALID
LOC
STA
LOC
STA
IEC10000052-1-en.vsd
REM
REM
IEC10000052 V2 EN-US

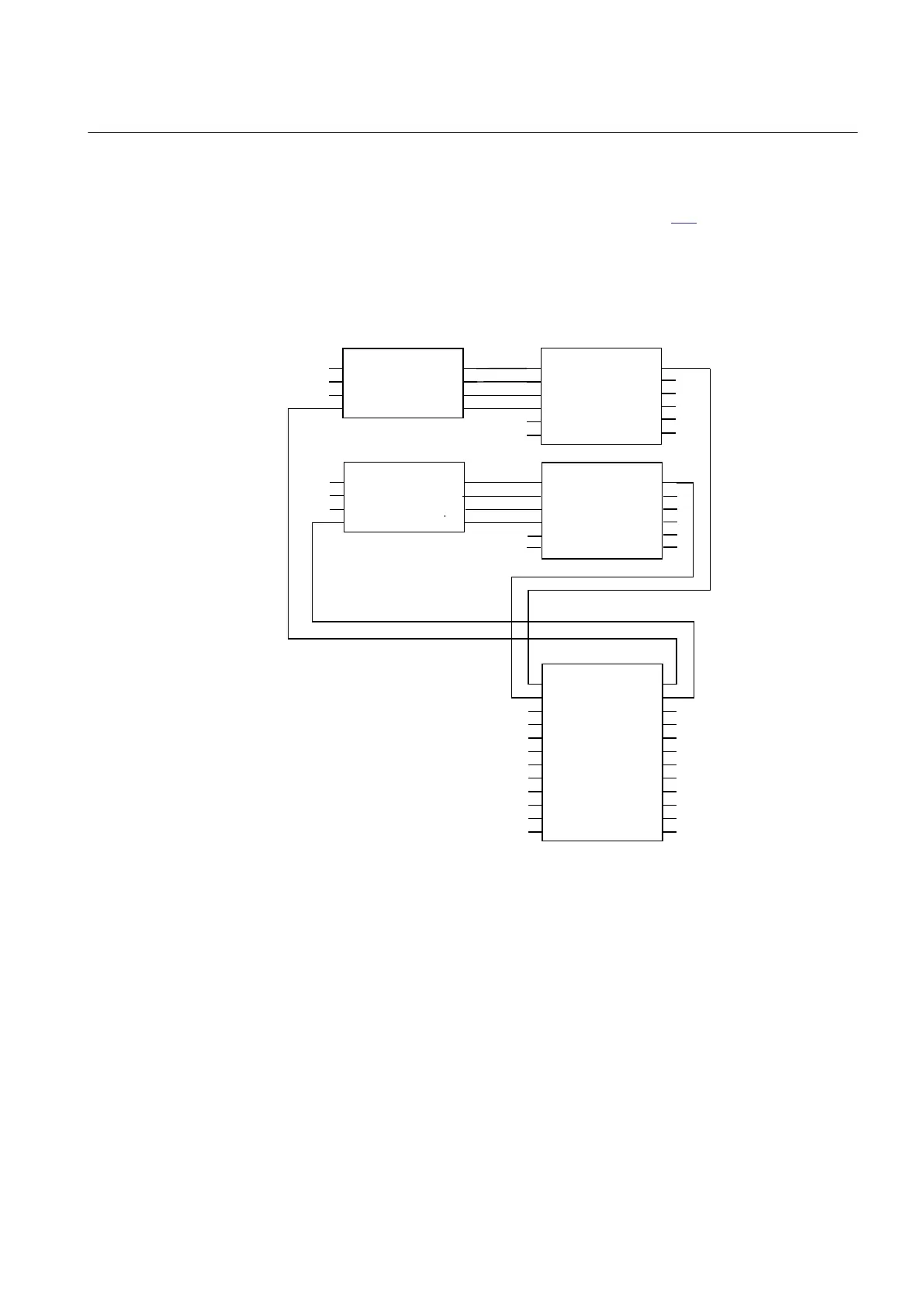

Figure 125: Configuration for the local/remote handling for a local HMI with two
bays and two screen pages
If the IED contains control functions for several bays, the local/remote position can
be different for the included bays. When the local HMI is used the position of the
local/remote switch can be different depending on which single line diagram screen
page that is presented on the local HMI. The function block Local remote control
(LOCREMCTRL) controls the presentation of the LEDs for the local/remote
position to applicable bay and screen page.
The switching of the local/remote switch requires at least system operator level.
The password will be requested at an attempt to operate if authority levels have
been defined in the IED. Otherwise the default authority level, SuperUser, can
