10.2 General start matrix block SMAGAPC
10.2.1 Identification
GUID-C6D3DE50-03D2-4F27-82FF-623E81D019F4 v1
Function Description
IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Generat start matrix block SMAGAPC - -
10.2.2 Functionality
GUID-BA516165-96DE-4CD9-979B-29457C7653C0 v3
The Start Matrix (SMAGAPC) merges start and directional output signals from
different application functions and creates a common start and directional output
signal (STDIR) to be connected to the Trip function, see Figure 160.
The purpose of this functionality is to provide general start and directional
information for the IEC 61850 trip logic data model SMPPTRC.
10.2.3 Function block
GUID-99B1DF71-F7C4-4954-8688-BC709C3C2A16 v1
SMAGAPC
BLOCK
STD IR1
S TDIR2
S TDIR3
S TDIR4
S TDIR5
STD IR6
S TDIR7
S TDIR8
S TDIR9
S TDIR10
STD IR11
S TDIR12
S TDIR13
S TDIR14
S TDIR15
STD IR16
STDIR
IEC16000165-1-en.vsdx
IEC16000165 V1 EN-US

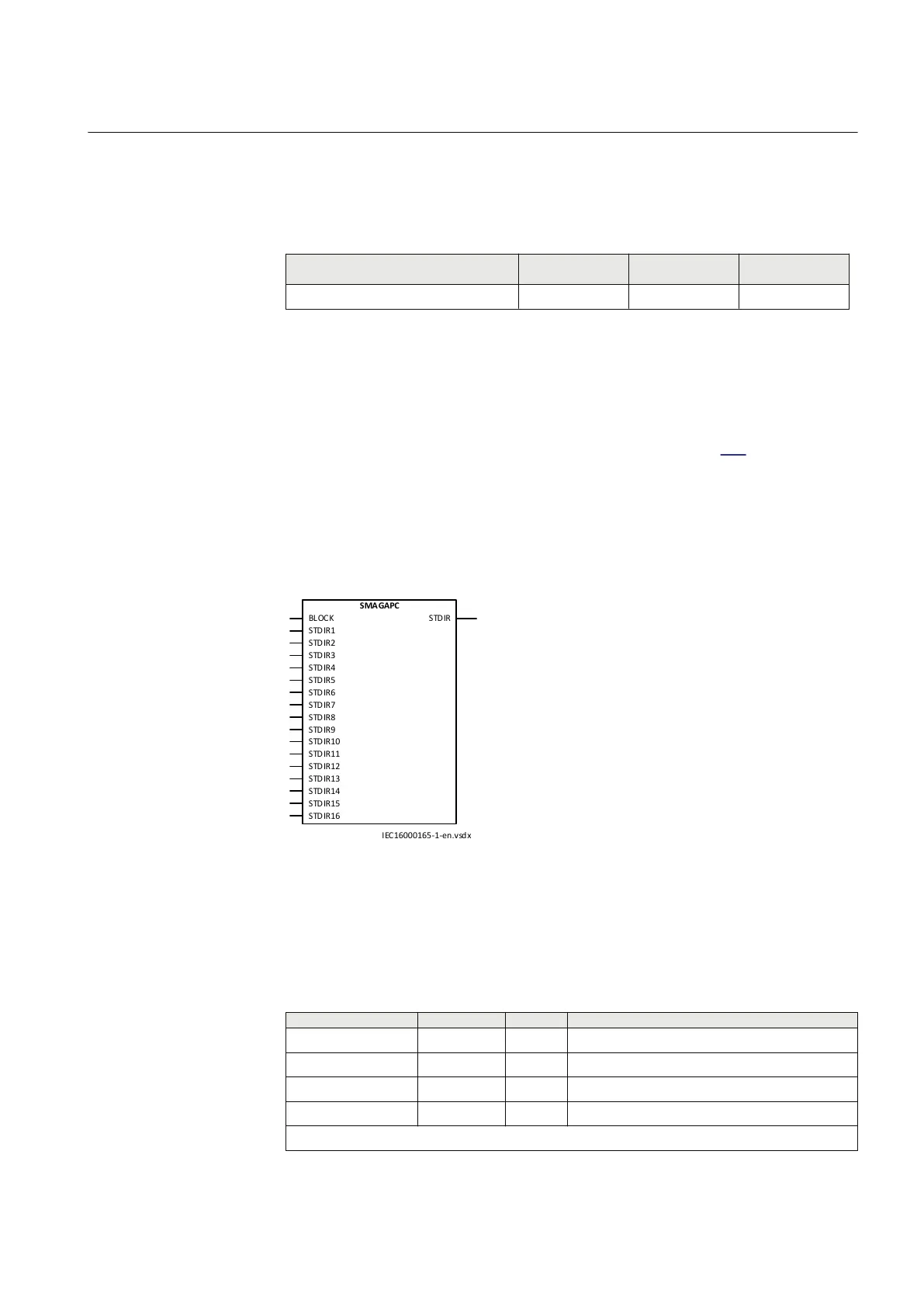

Figure 160: SMAGAPC function block
10.2.4 Signals
PID-6906-INPUTSIGNALS v2
Table 203: SMAGAPC Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of function
STDIR1 INTEGER 0 Start direction input 1
STDIR2 INTEGER 0 Start direction input 2
STDIR3 INTEGER 0 Start direction input 3
Table continues on next page
1MRK 505 384-UEN A Section 10
Logic
Breaker protection REQ650 2.2 IEC 335
Technical manual
