easy GOOSE engineering is enabled) to receive the double point
values.
The implementation for IEC 61850 quality data handling is
restricted to a simple level. If quality data validity is GOOD then
the DATAVALID output will be HIGH. If quality data validity is
INVALID, QUESTIONABLE, OVERFLOW, FAILURE or OLD
DATA then the DATAVALID output will be LOW.
14.4.7 GOOSE function block to receive an integer value
GOOSEINTRCV
14.4.7.1 Identification
GUID-93A1E81B-1DE8-483A-BB3B-DB771EE66DC1 v1
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
GOOSE function block to receive an
integer value
GOOSEINTRCV - -
14.4.7.2 Functionality
GUID-27B1ED7A-C8E8-499E-89C1-C656FB0337F8 v3
GOOSEINTRCV is used to receive an integer value using IEC 61850 protocol via
GOOSE.
14.4.7.3 Function block
GUID-56F0C9F7-98F3-4091-B071-53CA5074DC8F v1
IEC10000250-2-en.vsd
GOOSEINTRC V
BLOCK
^SRCINTOUT
^INTOUT
DATAVALI D
COMMVALID
TEST
IEC10000250 V2 EN-US

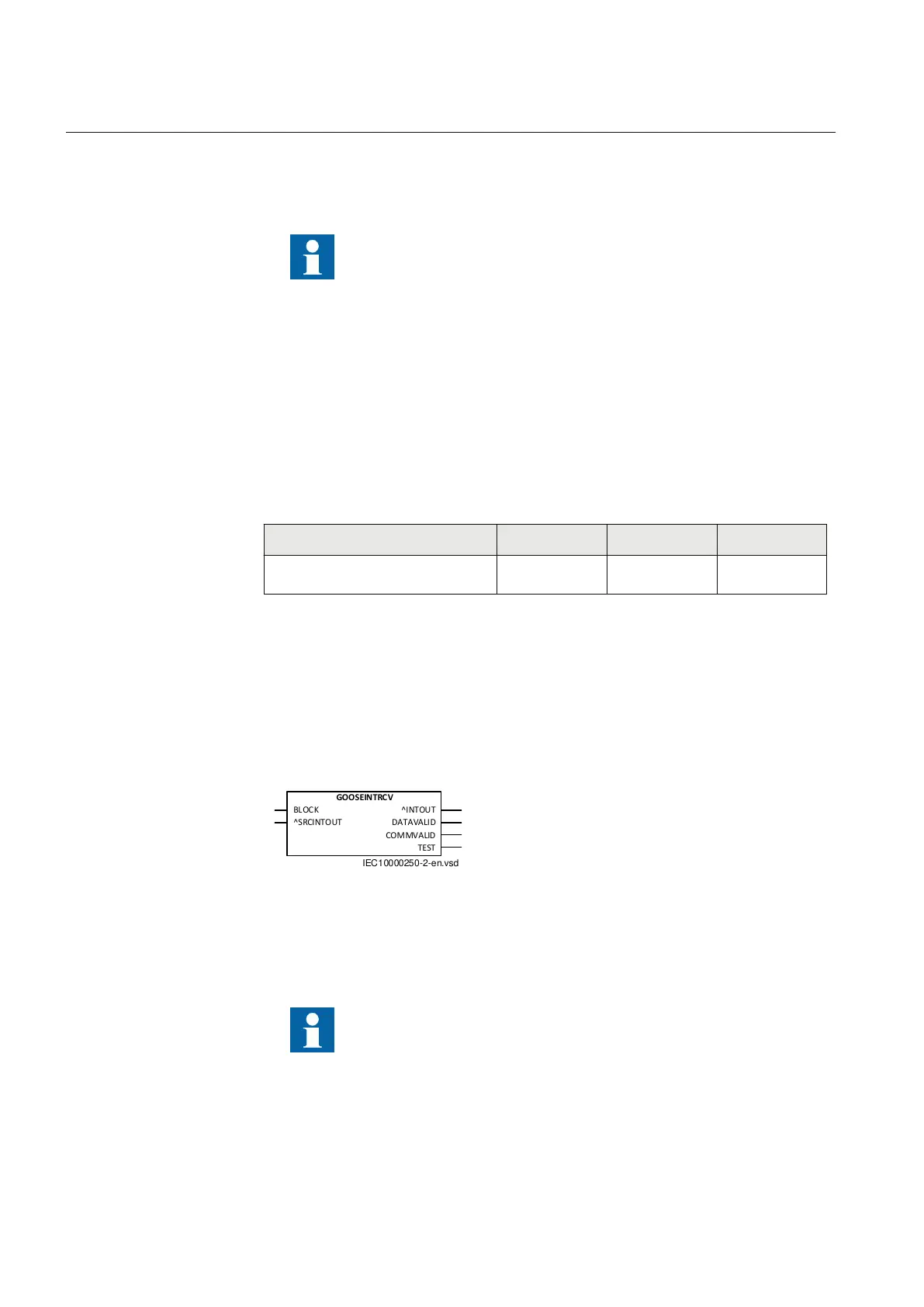

Figure 255: GOOSEINTRCV function block
14.4.7.4 Signals
GUID-2DC54788-86AF-4B4B-8E57-A89E30F0C433 v1
Except for the BLOCK input, the rest of the inputs of this GOOSE
function block are used for GOOSE connections. These
connections are visible and possible to make only if Easy GOOSE
engineering is enabled. For instructions on how to enable Easy
GOOSE engineering in PCM600, refer to the Engineering Manual.
Section 14 1MRK 505 384-UEN A
Station communication
530 Breaker protection REQ650 2.2 IEC
Technical manual
