IEC99000503 V3 EN-US

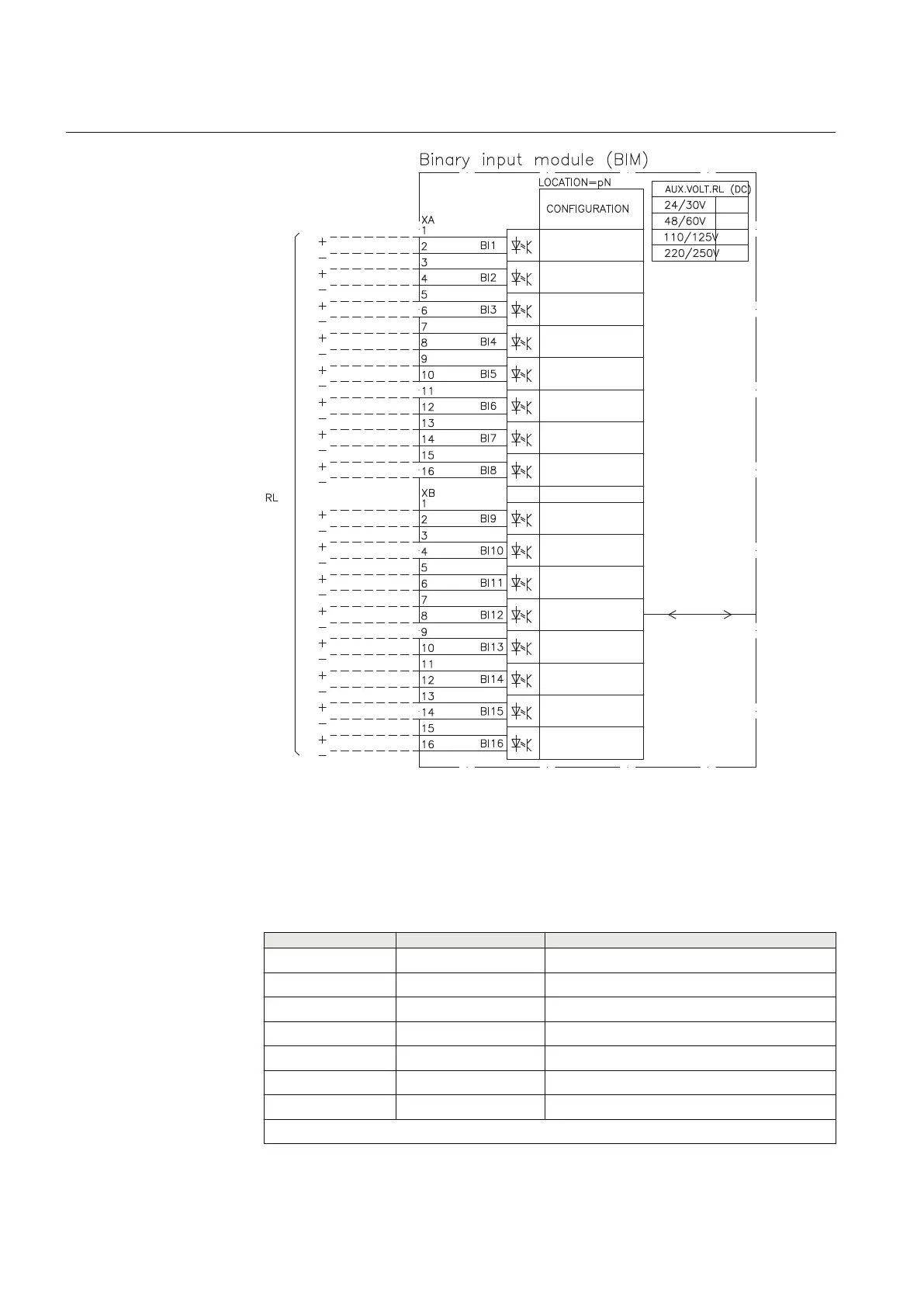

Figure 310: Connection diagram
17.2.7.3 Signals
PID-6435-OUTPUTSIGNALS v5
Table 547: BIM Output signals
Name
Type Description
STATUS BOOLEAN Binary input module status
BI1 BOOLEAN Binary input 1 value
BI2 BOOLEAN Binary input 2 value
BI3 BOOLEAN Binary input 3 value
BI4 BOOLEAN Binary input 4 value
BI5 BOOLEAN Binary input 5 value
BI6 BOOLEAN Binary input 6 value
Table continues on next page
Section 17 1MRK 505 384-UEN A
IED hardware
690 Breaker protection REQ650 2.2 IEC
Technical manual
