& SRS airbag system monitors
A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front seatbelt pretensioners)
while the vehicle is being driven. The

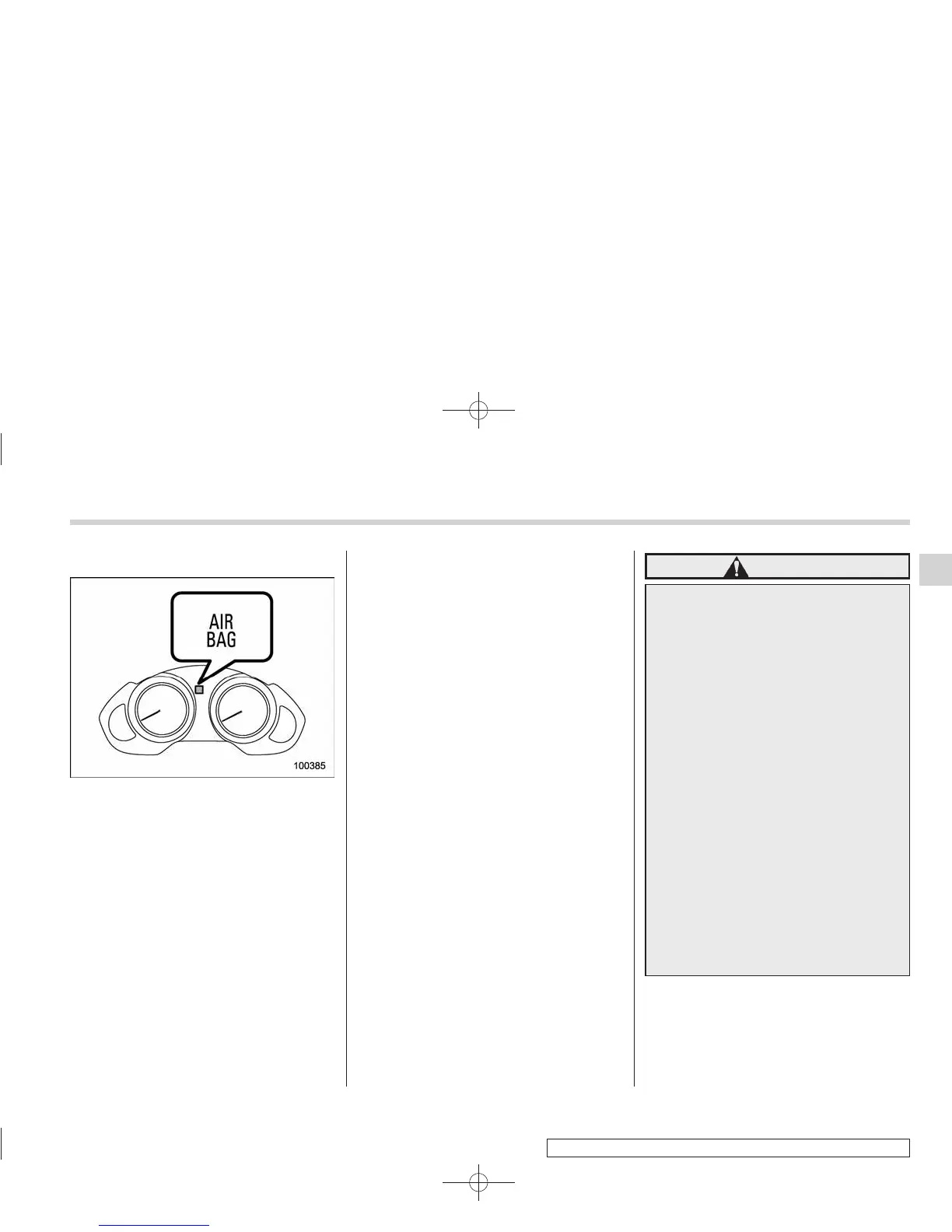

SRS airbag system warning light “AIR-
BAG” will show normal system operation
by lighting for approximately 6 seconds
when the ignition switch is turned to the
“ON” position.
The following components are monitored
by the indicator.
. Front sub sensor (right-hand side)
. Front sub sensor (left-hand side)
. Airbag control module (including im-
pact and rollover sensors)
. Frontal airbag module (driver’s side)
. Frontal airbag module (front passen-
ger ’s side)
. Side airbag sensor (center pillar right-
hand side)
. Side airbag sensor (center pillar left-
hand side)
. Side airbag module (driver’s side)
. Side airbag module (front passenger’s
side)
. Curtain airbag sensor (rear wheel
house right-hand side)
. Curtain airbag sensor (rear wheel
house left-hand side)
. Curtain airbag module (right-hand side)
. Curtain airbag module (left-hand side)
. Satellite safing sensor (under the sec-
ond-row center seat)
. Seatbelt pretensioner (driver’s side)
. Seatbelt pretensioner (front passen-
ger ’s side)
. Seatbelt buckle switch (front passen-
ger ’s side)
. Front passenger’s seatbelt tension
sensor
. Front passenger’s occupant detection
system weight sensor
. Front passenger’s occupant detection
control module
. Front passenger’s frontal airbag ON
and OFF indicator
. All related wiring
WARNING
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehi-
cle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very
minor collision or not inflate in a
severe collision), which may in-
crease the risk of injury.
. Flashing or flickering of the warn-
ing light
. No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
. Continuous i llumination of the
warning light
. Illumination of the warning light
while driving
Seat, seatbelt and SRS airbags 1-71
