Fuses and circuits

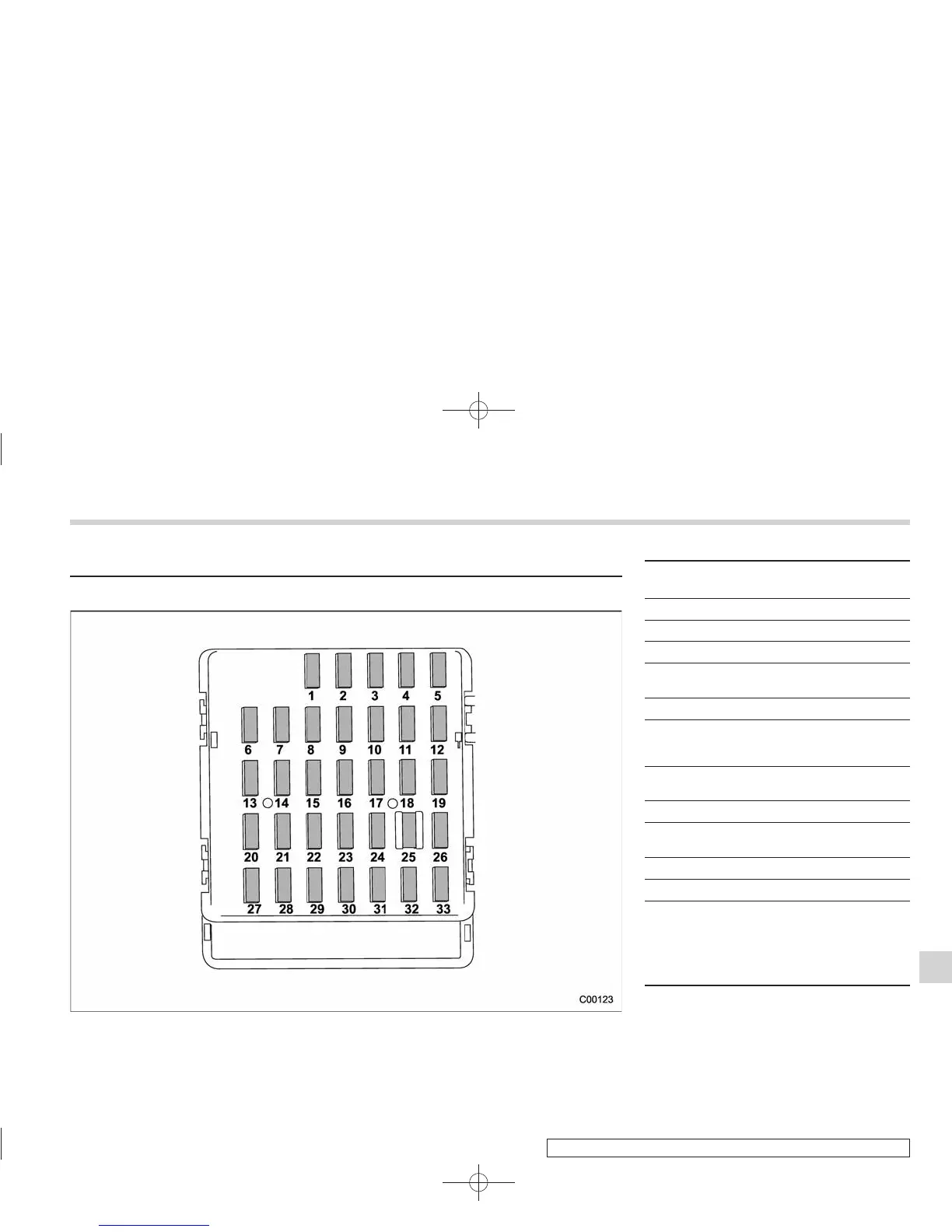

& Fuse panel located in the passenger compartment
Fuse
panel
Fuse
rating
Circuit
1 20A
. Trailer hitch connector
2
Empty
3 15A
. Door locking
4 7.5A
. Front wiper deicer relay
. Moonroof
5 7.5A
. Combination meter
6 7.5A
. Remote control rear
view mirrors
. Seat heater relay
7 15A
. Combination meter
. Integrated unit
8 15A
. Stop light
9 20A
. Mirror heater
. Front wiper deicer
10 7.5A
. Power supply (battery)
11 7.5A
. Turn signal unit
12 15A
. Automatic transmission
unit
. SRS airbag system
(sub)
. Engine control unit
. Integrated unit
Specifications
12-9
– CONTINUED –
