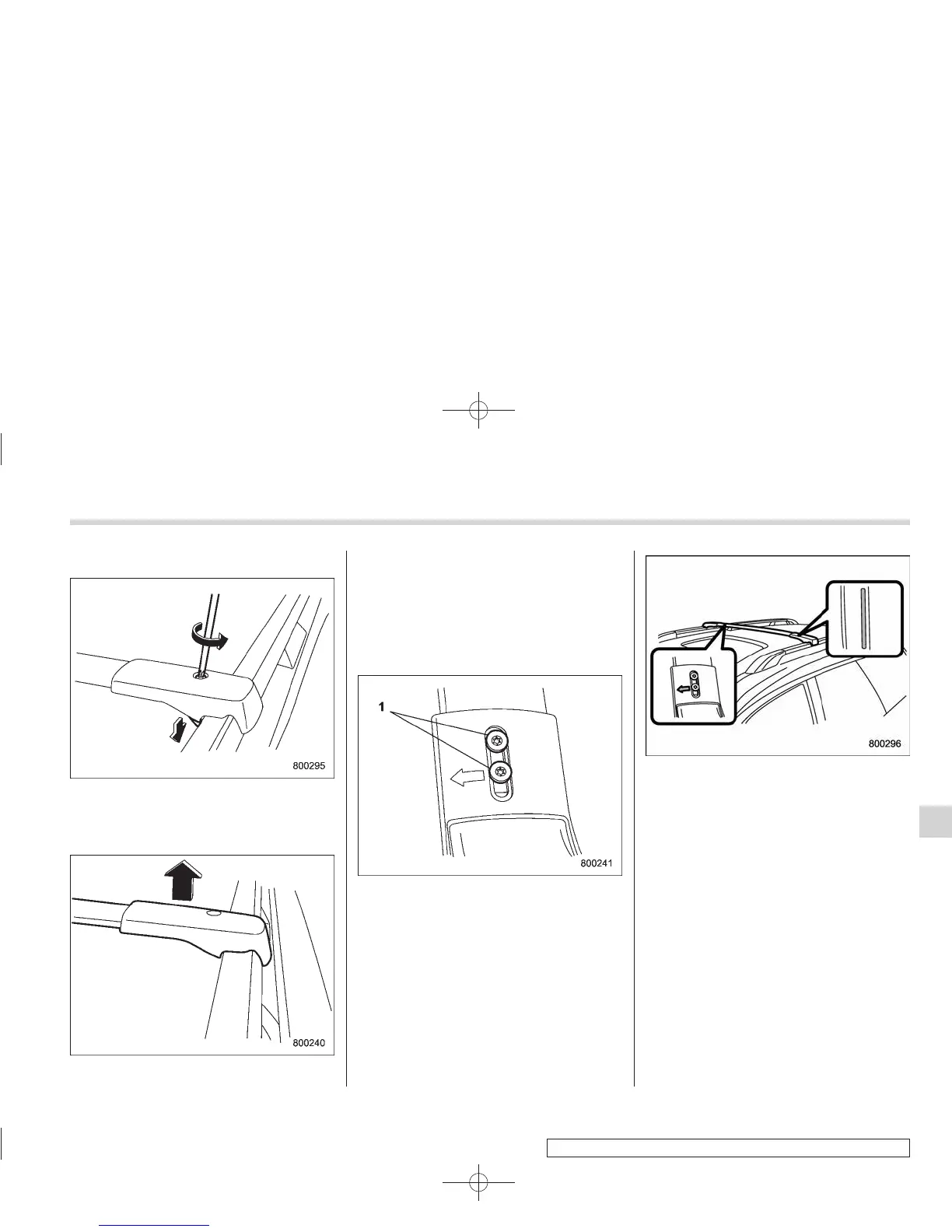

! To remove the crossbar
1. Loosen and remove the T-30 torx
®
head screw from the top of each crossbar
end support.
Loosen the lower clamps.
2. Carefully raise the crossbar from roof
rails.
! To install the crossbar
Front crossbar:
Front crossbar has a 150 lbs (68 kg) load
label on left-hand side.
1) T-25 torx
®
head screw
1. Make sure that the T-25 torx
®
head
screw on the back of each crossbar end
support is tightened correctly.
2. Before placing the crossbar on the roof
rails, make sure that the T-30 torx
®
head
screw is removed from the top of each
crossbar end support.
3. The crossbar with a 150 lbs (68 kg)
load label attached onto it is the front
crossbar. An arrow is marked on the back
of the front crossbar for correct installa-
tion. Install the front crossbar so that the
arrow faces the front of the vehicle.
