Suffolk SS100 - Peering of the Bonnet Panel Edges; Carburettor Pipe Location

SS100 Build Manual (Export Edition) Rev 10 November 2013
Page 81

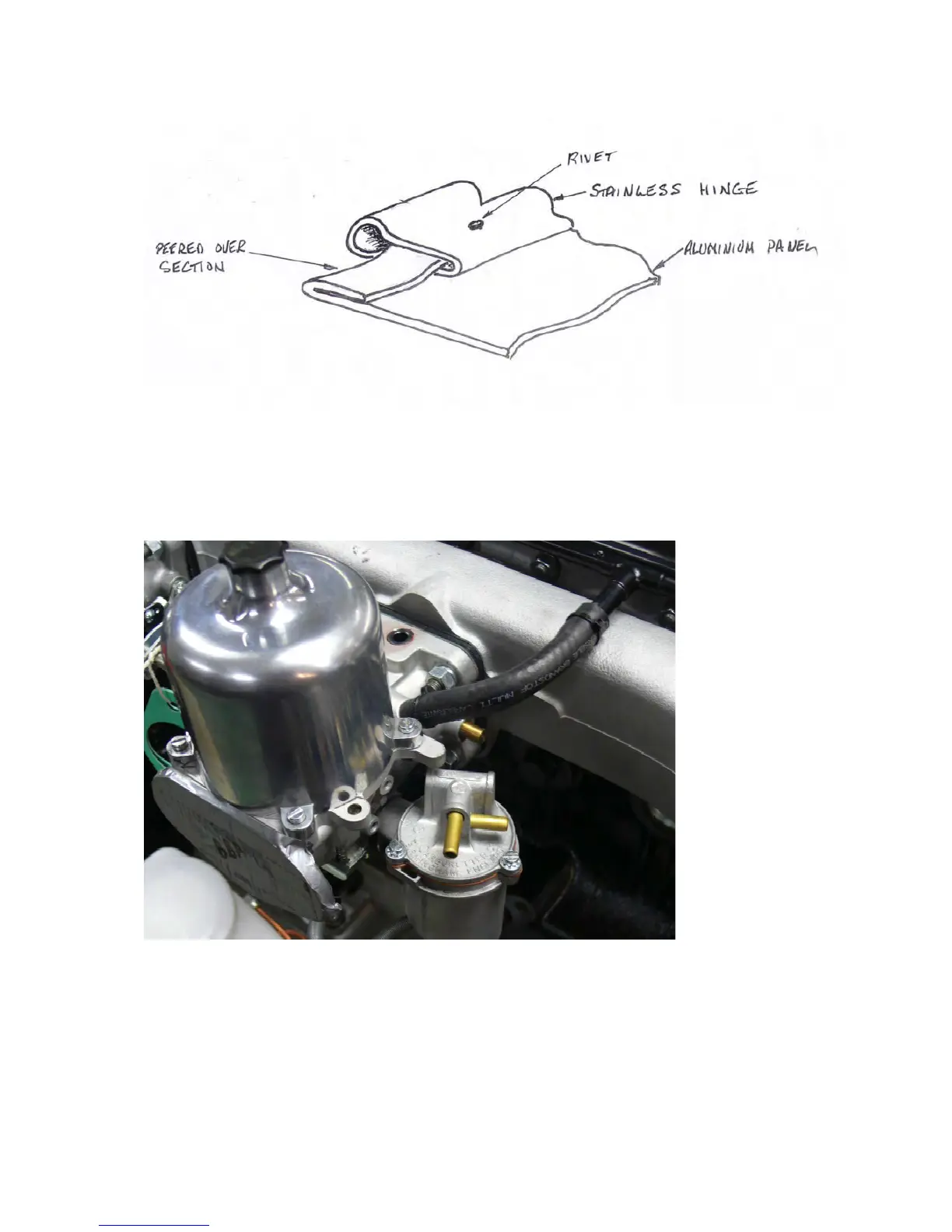

Figure 5 – Peering of the bonnet panel edges
Figure 6 – Carburettor Pipe Location
Below is the most common carburettor type. If your carburettors are different please refer to Haynes Manual or contact
Suffolk Sportscars.
Forward carburettor
pipe locations:
A – Fuel Input
Via “T” piece and
filter
B – Fuel Overflow
Fit vent pipe down to
bottom of sump
C – Breather
Connect pipe from
engine front cover.
