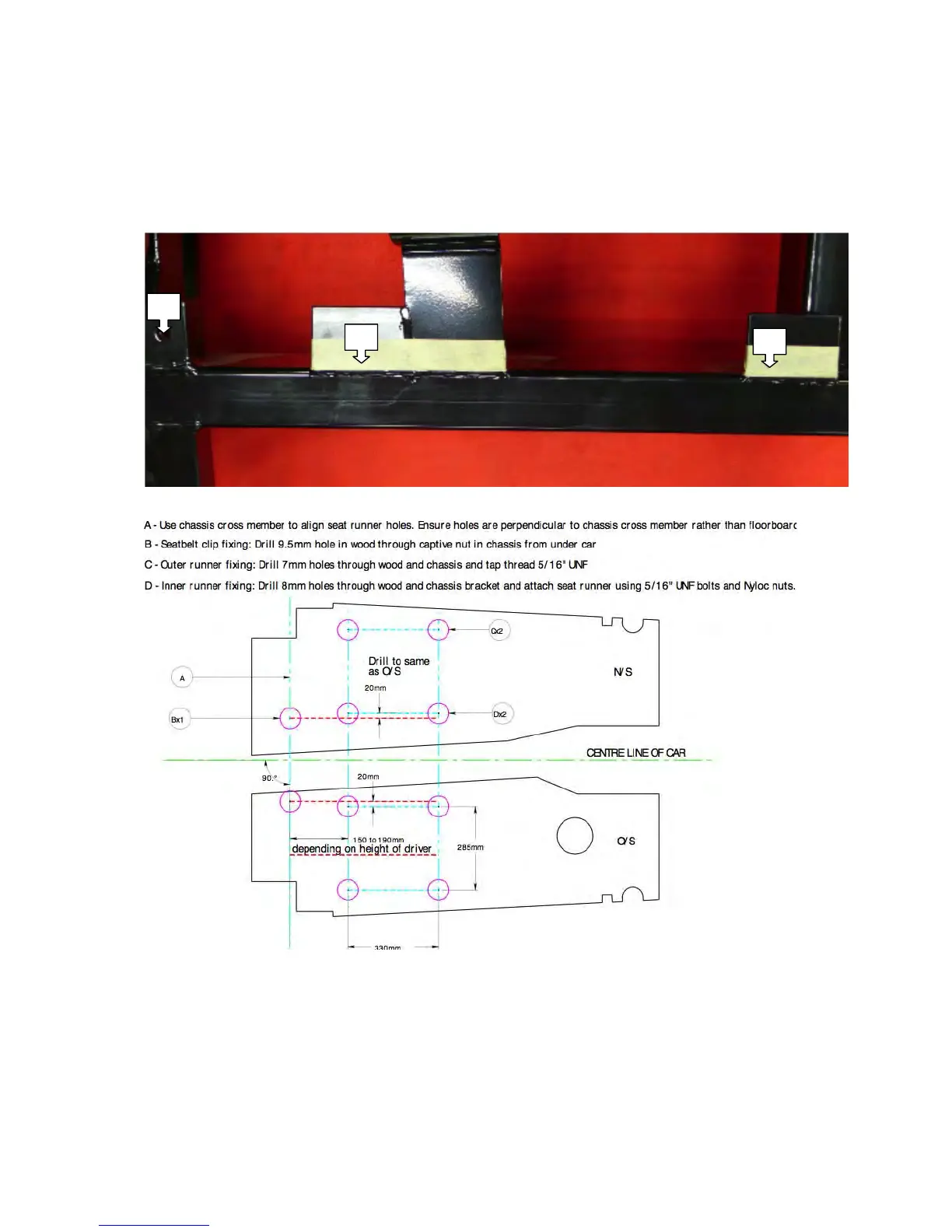

Figure 7 – Seat Runner Positions
Ini
tial drilling for right hand inner seat runner before floorboards fitted, mirror image for left hand inner runner.
A (seat belt clip mount) to B variable depending on height of driver 150mm – 190mm.
B to C always 330mm (length between seat runner mount holes).
B and C should be approx. 10mm off main chassis rail.
Pos
itions for inner runner if floorboards already fitted and for positioning outer runner.
A
B
C
